Epistar electronic Indoor Rental led display full color with 3G / GPS / WIFI , 4mm pixel pitch
Price:
negotiable
MOQ:
1 square meter
Delivery Time:
12~20 working days after deposit received
Brand:
Shenzhen LED World
Product Description
Epistar electronic Indoor Rental led display full color with 3G / GPS / WIFI , 4mm pixel pitch
Product Features:
- the whole screen flatness error < 0.2 mm, which can effectively eliminate the phenomenon of Mosaic;
- Low investment and perfect performance makes high cost performance;
- SMD led encapsulation ensure good heat dissipation and low power consumption;
- High resolution, With high density, High definition LED display screen is able to produce quality graphic & video;
- Large viewing angle,160 degree Horinzontally and 140 degree vertically by using our specially designed mask;
- Good heat dissipation, Lower noise caused, good environment protection;
- Ultra thin and light weight which with only 7Kg/panel and 75mm thickness;
- Easy & fast convenient installation make it works in various indoor places;
- Handles on both sides,convenient to assemble and disassemble.Handles can be put at the handle-groove without effecting whole screen flatness;
- Good uniformity. Dot-to-dot correction technology provide you pure image with great gradation;
FQA:
- What is the payment method?
- We support a variety of payment methods, the most common is the TT;
- What kind of display we provide?
- We have indoor/outdoor/rental taxi top /mobile LED display/LED stage/Irregular LED display for you choose;
- How long can I get the goods?
- Our produce time is about 10-25 working days.When you confirmed the order, we can start production
- after receiving your deposit(30% TT in advance). we will update the production details in time.we will
- notice you that we can delivery the goods to you after we get full payment;
Parameter:
| P4 SMD Indoor full Color LED Screen Specification | ||||||
| Pixel pitch | 4mm | |||||
| Size of module | 256mm x 128mm | |||||
| Resolution of module | 48*48 | |||||
| Size of cabinet | 512mm x 512mm | |||||
| Resolution of cabinet | 128x 128 | |||||
| Weight of Cabinet | 7KG | |||||
| Brightness | >800cd/m² | |||||
| Density | 62500dots/m² | |||||
| Best viewing angle | 120 /120 | |||||
| Pixel Configuration | 1R1G1B | |||||
| Best viewing distance | 4-100M | |||||
| Maximum power consumption | <1000W/m² | |||||
| Driving method | 1/16 scan | |||||
| Control method | Synchronization | |||||
| Gray scale | 16 bits | |||||
| Colors | 16777216 | |||||
| Color temperature | 6500k | |||||
| Working voltage | AC220V±10% | |||||
| Working temperature | -20ºC~+50ºC±10% | |||||
| Maintenance | front door open way | |||||
| MTBF | 5,000 hours | |||||
| Frame frequence | ≥60Hz | |||||
| Refresh frequence | >1800Hz | |||||
| IP grade(Front/Back) | IP43 | |||||
| Life Span | 100,000 hours | |||||
| Data transafer method | RJ45(DVI) | |||||
| Effectivce Communication | Unshielded twisted pair net line transmission distance:100M, max transmission distance:130M; Multi-mode optic fiber: 500M; | |||||
| Distance(without relay) | Single-mode optic fiber: 10KM | |||||
| Accepting signal with video processor | PAL/NTSC/SECAM | |||||
| Notes: Specifications are for reference only. Please contact our salesperson for details. All rights are reserved to Led World. | ||||||
Our service:
- We promise you more than just two years warranty service;
- Aging test at least 24 hours before shipment;
- 2 years warranty offered;
- Reply your email or inquiry within 12 hours；

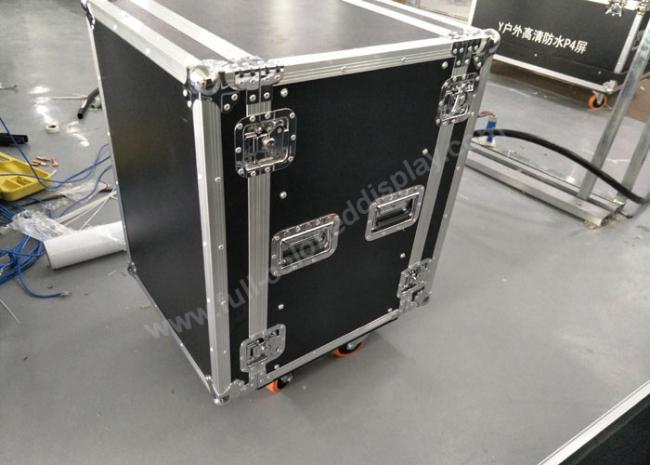

Package:
