1/8 Scan P6 high definition video HD LED Display with AC220V / 110V±10% voltage input
Price:
negotiable
MOQ:
1 square meter
Delivery Time:
12~18 days after receiving the deposit
Brand:
Shenzhen LED World
Product Description
1/8 Scan P6 high definition video HD LED Display with AC220V / 110V±10% voltage input
Application:
Our indoor ture color LED screen are widely used in indoor stage,bars,TV studio,Entertainment complexes,enterprises,train/bus station,commercial buildings,airport,parking lot,park,commercial applications,4S shop,high end hotel,golf course,Showrooms,railway stations,insurance company,outside parking lots,Stage Performance,advertising media and so on .
P6 indoor LED screen:
- the SMD triad technology, makes the screen when use ultra wide Angle of view and better surface smoothness and stability;
- Rear serviceable；
- Safety : Using the low voltage DC so that no matter the elderly and children can safely operate without potential safety hazard；
- Cabinet size is customizable without any extra cost;
- Weather resistant cabinet；
- Competitive price:
- We have the best competitive price with the same even better quality at the market, Our price is 10% lower than
- the market because of the introduction of full automatic production line with the characteristics of reducing the cost of labor and management;
- Many pitches are available,from high cost to low cost.you can choose according to your budget and the project requirements;
P6 indoor fixed LED display Parameter:
| P6 SMD3528 Indoor full Color LED Screen Specification | |
| Pixel pitch | 6mm |
| Pixel Configuration | 1R1G1B |
| LED component | SMD3528 |
| Size of module | 192mm X 192mm |
| Resolution of module | 32 x32 |
| Size of cabinet | 768mm x768mm x 80mm |
| Resolution of cabinet | 128x128 |
| Material of Cabinet | Aluminum Profile |
| Weight of Cabinet | 10KGS |
| Brightness | >1500cd/sq.m |
| Density | 27777dots/sq.m |
| Best viewing angle | 140 /140 |
| Pixel Configuration | 1R1G1B |
| Best viewing distance | 5-60M |
| Maximum power consumption | 600W/sq.m |
| Average power consumption | 360W/sq.m |
| Driving method | 1/8 scan |
| Control method | Synchronization |
| Gray scale | 65536 |
| Colors | 256*256*256 |
| Color temperature | 3200-9300k |
| Uniformity | 97% |
| Working voltage | AC220V/110V±10% |
| Working temperature | -20ºC~+50ºC±10% |
| Working humidity | 10% ~ 90% |
| MTBF | 10,000 hours |
| Frame frequence | 50/60Hz |
| Refresh frequence | >1920Hz |
| IP grade | IP31 |
| Life Span | 100,000 hours |
| Data transafer method | RJ45 |
| Pratical standard | CCC TUV-CE ETL etc. |
| Effectivce Communication | Unshielded twisted pair net line transmission distance:100M, max transmission distance:130M; Multi-mode optic fiber: 500M; |
| Distance(without relay) | Single-mode optic fiber: 10KM |
| Accepting signal with video processor | PAL/NTSC/SECAM,S-Video;VGA;RGB;HDMI,DVI,Composite Video;SDI,DP etc. |
| Systems operating platform | WINDOWS(WINXP,WIN7/8/10), and interfaces for secondary development |
| Notes: Specifications are for reference only. Please contact our salesperson for details. All rights are reserved to Led World. | |
Why choose us:
- Excellent R&D team,lower the cost and assure you quality goods;
- We ensure that our products are the CE certified, ROHS compliant, FCC identified and passed the system of ISO 9001;
- Quality advantage: From material to finished product, from design to produce, we control all steps;
- We have integrated the sales team, let you no worries about pre-sales to after-sales;

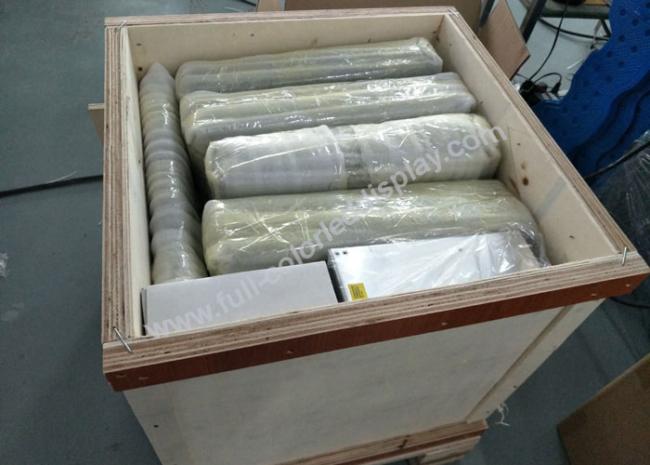

Package:
