Light Weight Waterproof Ip65 P5 Led Panel Video For Fixed Installation
Price:
negotiable
MOQ:
1 square meter
Delivery Time:
10~20 days after receiving the deposit
Brand:
Shenzhen LED World
Product Description
Waterproof IP65 P5 outdoor display LED screen for fixed installation
P5 outdoor fixed LED display features:
- Special power supplier can save 20% the space, the range of voltage fluctuation is 5% less, high stability;
- The screen displays delicate and vivid pictures through synchronous adjustment of color and brightness;
- Muti-layer circuit PCB,uniform current distribution,low power consumption,fast heat dissipation,prolong the life of the screen;
- Professional aviation packaging protects the control equipment well;
- widely used in building showing;
- Display Color: 256*256*256;
- with IP65 protection grade, fear any bad weather;
Outdoor 5mm pixel pitch led panel parameter:
| Module | Parameter NO. | P5 |
| Size of Module(mm) | 320*160 | |
| Pixel Density(dots/m²) | 40000 dots/m² | |
| Pixel Pitch(mm) | 5mm | |
| LED Encapulation | SMD2727 | |
| Resolution of Module(dots) | 64(W)*32(H) | |
| Thickness of Module (mm) | 17.05(No magnet) | |
| Weight of Module (Kg) | 0.5 | |
| Driving Method | Constant Current Driving | |
| Equilibrium Brightness(CD//m²) | ≥6000 CD/m² | |
| Bracket | Size(mm) | 160*160 |
| 320*160 | ||
| Cabinet | Size of Cabinet(mm) | 960*960 |
| Power Supply Mode | 5V/60A*3PC | |
| Best Viewing Distance(m) | 5-100m | |
| Best Viewing Angle | 160(W) 120(H) | |
| Storage Temperature(ºC) | -35ºC ~ +85ºC | |
| Working Temperature(ºC) | -40ºC ~ +50ºC | |
| Relative Humidity | 10%-95% | |
| Power Supply | Working Voltage(V) | AC220V±10% |
| Average Power Consumption(W/m²) | ≤500 W/m² | |
| Max Consumption(W/m²) | ≤1000 W/m² | |
| Control System | Scan and control Method | 1/8 Synchronous Control |
| Driving Components | Constant current Driving | |
| Technical Parameters | Refresh Frequency | ≥1920 Hz/Sec |
| (HZ) | ||
| Frame Frequency | ≥60 HZ/Sec | |
| (HZ) | ||
| Level of Brightness/Color | RGB256 | |
| Level of Gray | 65536 | |
| Notes: Specifications are for reference only. Please contact our salesperson for details. All rights are reserved to Led World. | ||
Our company:
top 3 among same-grade manufacturers in China.
Our company specializes in LED displays, including LED display rental series, LED display fixed seried,curtain led display series, adverting projects series, and so on.
Through the efforts and collaboration of all employees of the company, the products are exported to Europe, North America, Australia, the Middle East, and the establishment of a stable distribution agents in the respective regions.
FQA:
- Can it play HD video?
- Yes, it can realize HD video function with Linsn/nova controlling system;
- Where is your company?
- We are located in address:No.4 Bldg,Second Industrial Park of Baiwang,Baimang Village,Xili street,Nanshan District,Shenzhen,China;
- May I know the Minimum order for your products?
- For our products, no limit for the size of the screen, but generally speaking, one screen the dots more than 50000 dots will be clear for the audience to see the video on the screen;

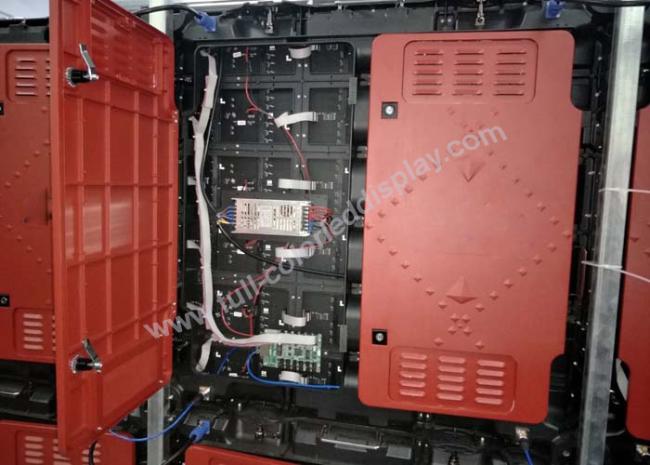

Product detail:
