High Definition P6 Outdoor Smd Led Display Rental , Led Video Panels With 576x576 Die Caste
Price:
negotiable
MOQ:
1 square meter
Delivery Time:
12~20 working days after deposit received
Brand:
Shenzhen LED World
Product Description
High Definition P6 Outdoor Smd Led Display Rental , Led Video Panels With 576x576 Die Caste
P6 outdoor rental screen LED features:
- CE passed super slim-light cabinet. Less cost in shipping fees and Labor saved in install and dismantle;
- Specially designed for huge size screen;
- Panels are manufactured by precision CNC process, ensuring a tolerance of less than 0,1mm, creating a seamless panel to panel and module to module connection;
- Adopts Die-Casting Aluminum, with additional strengthening bracket inside, anti-tensiling and shockproof, without deformation lasting for 10 years;
- High precision: using electromechanical processing the size could be accurate to 0.1mm;
- Simple but unique cabinet's design, light & thin; side lock system with quick and seamless installation;
- Ultra thin body,die-casting aluminum structure,high-accuracy connection,error<0.1mm;
- with IP65 protection grade, fear any bad weather;
Application:
It is designed for rental use Campus,Lobby,Building facilities,traffic,subway station,gas station,television studio, train/bus station,stores, government,telecommunications,security company,Casinos,public places and so on .
P6 outdoor rental screen display parameter:
| Type | Technical parameters |
| Module | 1) Pixel pitch: 6mm |
| 2) Density: 27777 dots/m2 | |
| 3) Lamp origin: R/G/B=Nationstar | |
| 4) Colors: 1R1G1B | |
| 5) Led specs: SMD3535 | |
| 6) Module resolution: W32×H32 | |
| 7) Best viewing distance: 5~80m | |
| 8) Best viewing angle: H140,V140 | |
| 9) Environment temperature: -20ºC ~ +60ºC | |
| 10) Working temperature: -20ºC ~ +50ºC | |
| 11) RH: ≤10~95% | |
| 12) Module weight: About 370g. | |
| Power | 1) Working voltage: 220V±10% |
| 2) Suitable voltage: DC5V | |
| 3) Average power consumption: 480W/m2 | |
| 4) Largest power consumption: 850W/m2 | |
| Control system | 1) Host: P4-80G/512m or better |
| 2) Operating system: WIN 98/ 2000/ NT/XP | |
| 3) Control mode: Wireless LED information distribution system | |
| 4) Graphic card: DVI | |
| 5) Media card: PCTV | |
| Main Parameters | 1)Driving IC: MBI Led Driver |
| 2)Scan mode: 1/8S | |
| 3)Frame frequency: ≥60 frame/s | |
| 4)Refresh rate:≥1920 Hz/s | |
| 5)Grey scale levels/Color processing: 4096levels,Process 16.7M colors | |
| 6)Full white brightness: ≥7000cd/m2 | |
| 7)Brightness adjustment mode: 100 levels available | |
| 8)Video signals: PAL/NTSC | |
| 9)Video Input/Output: 8/8 | |
| 10)Control System: Nonlinear Edit Card+DVI Graphic card+ | |
| Control card+Optical fiber transmission (optional) | |
| 11)MTBF: ≥10,000 hours | |
| 12)Life-span: 100,000 hours | |
| 13)Flatness: Neighbor pixel≤0.5mm; Module joint gap<1mm | |
| 14)Uniformity: pixel light intensity; module brightness uniformity | |
| 15)Power switch: Auto Switch | |
| 16)Switch power supply load: 5V/40A | |
| 17)Computer display mode: 800×600;1024×768 | |
| 18)Network cable transition distance: 100m | |
| 19)Multi-mode optical fiber transition distance: 500m | |
| 20)Mono-mode optical fiber transition distance: 20km | |
| Software | LED Regular display software(MDK) |
| Protection | Moisture/dust/resistant, electrostatic prevention, shockproof, meanwhile, against over-current, short-circuit, over-voltage and low voltage |
| Image performance | Text, WORD, all formats of pictures(BMP/JPG/GIF/PCX…),as well as(MPG /MPEG/MPV/MPA/AVI/VCD/SWF/RM/RA/RMJ/ASF…) |
| Notes: Specifications are for reference only. Please contact our salesperson for details. All rights are reserved to Led World. | |
Our service:
- Apart from the Outdoor LED Display, LED World also can offer you LED Pharmacy Cross Display, LED Flexible Display, Indoor LED Display, LED Gas Price Signs, Indoor/outdoor LED Signs;
- EXW. FOB. CIF accepted;
- Design the framework structure to install our led products with technical drawing;

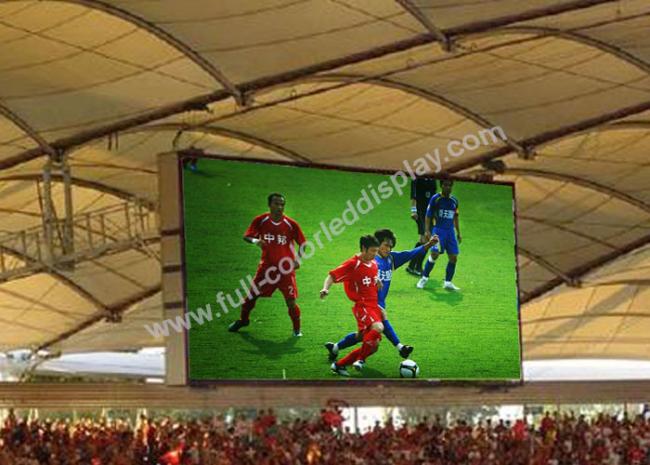

Project case:
