P8 SMD3535 Outdoor Stadium LED Display For Football 5000 CD/M²
Price:
Negotiation
MOQ:
1 square meter
Delivery Time:
12-18 working days after received your payment
Brand:
Shenzhen LED World
Product Description
P8 outdoor Stadium LED Display with Magnesium alloy die casting cabinet for football
P8 outdoor die casting stadium LED Display features:
- P8 alloy die-casting 960x960 mm cabinet very light,Very light will not rust;
- P4,P5,P6,P8,P10 outdoor LED video wall are all can be use alloy die caste cabinet ;
- deep gray processing, RGB color is rich and exquisite, clear and natural;
- Net weight <30kg/sqm；
- Clear picture without flicker and distortion;
- Package: Flight case, wooden box package & carton box and so on;
- Strong and durable cabinet design with strengthening ribs;
P8 outdoor die casting stadium LED Display parameter:
| Module | Parameter NO. | P8 |
| Size of Module(mm) | 320*160 | |
| Pixel Density(dots/m²) | 15625 dots/m² | |
| Pixel Pitch(mm) | 8mm | |
| LED Encapulation | SMD3535 | |
| Resolution of Module(dots) | 40(W)*20(H) | |
| Thickness of Module (mm) | 17.05(No magnet) | |
| Weight of Module (Kg) | 0.343 | |
| Driving Method | Constant Current Driving | |
| Equilibrium Brightness(CD//m²) | ≥5000 CD/m² | |
| Cabinet | Size of Cabinet(mm) | 960*960 |
| Power Supply Mode | 5V/60A*3PC | |
| Best Viewing Distance(m) | 8-100m | |
| Best Viewing Angle | 160(W) 120(H) | |
| Storage Temperature(ºC) | -35ºC ~ +85ºC | |
| Working Temperature(ºC) | -40ºC ~ +50ºC | |
| Relative Humidity | 10%-95% | |
| Power Supply | Working Voltage(V) | AC220V±10% |
| Average Power Consumption(W/m²) | ≤380 W/m² | |
| Max Consumption(W/m²) | ≤760 W/m² | |
| Control System | Scan and control Method | 1/4 Synchronous Control |
| Driving Components | Constant current Driving | |
| Technical Parameters | Refresh Frequency | ≥1920 Hz/Sec |
| (HZ) | ||
| Frame Frequency | ≥60 HZ/Sec | |
| (HZ) | ||
| Level of Brightness/Color | RGB256 | |
| Level of Gray | 65536 | |
| Notes: Specifications are for reference only. Please contact our salesperson for details. All rights are reserved to Led World. | ||
Our service:
- 2 years for warranty, service time: 24 hours*7 days;
- Your inquiry related to our products or prices will be replied in 24hrs;
- We also provide the operation manual, software, and so on. Any associated drawing of product and structure and some other professional suggestion will be provided too;
- years free warranty,life-long maintaining；
FQA:
- What kind of display we provide?
- We have indoor/outdoor/rental taxi top /mobile LED display/LED stage/Irregular LED display for you choose;
- What is your terms of delivery?
- We accept EXW, FOB, CFR, CIF, DDU, DDP, etc. You can choose the one which is the most convenient or cost effective for you;
- May I know the Minimum order for your products?
- For our products, no limit for the size of the screen, but generally speaking, one screen the dots more than 50000 dots will be clear for the audience to see the video on the screen;
- How long can I get the cargos?
- Our production time is about 10-25 working days.When we confirmed the order, we can start production after receiving your deposit (40% TT in advance).we will update the production details in time.we will notice you before finish and after delivery the goods to you after we get full payment.About the time from start port to destination, it depends on the distance and the state of the forwarder;

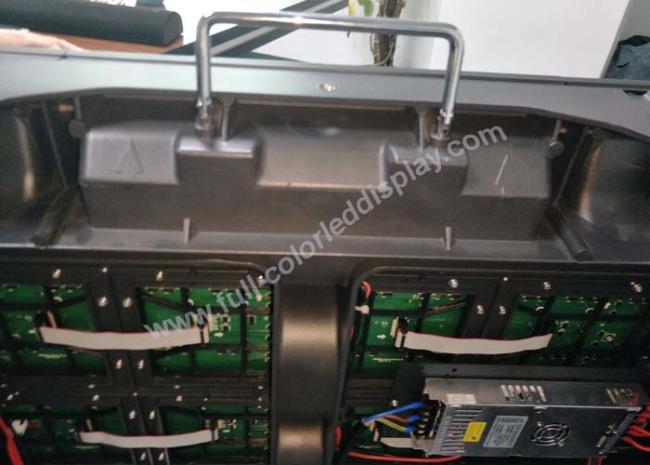

P8 outdoor die casting stadium LED Display product detail:
