IP65 Waterproof P5 P10 Outdoor Led Video Wall With MBI5124 IC
IP65 waterproof P5 , P10 Outdoor Fixed LED Display with MBI5124 IC for advertise
P5 , P10 Outdoor Fixed LED Display features:
- 14 bit color,16384 gray scale,showing very clear and vivid video and images;
- Ideal parameter setting,effectively slowing down the speed of brightness and color reduction;
- High-definition and perfect image gives you a visual feast; it is suitable for all kinds of occasions , such as the splendid hall, innovation technology seminars, star talent and the game; Aries free from the scene, and perfection is near at hand;
- New system, high refresh rate, true color output;
- Auto fan and brightness;
- Advanced All-In-One control system:with LED World's advanced control system,client can operate LED screen in a simple way,save your labor cost;
Our company:
LED WORLD also has got good reputation from different users, our products are mainly supplied for international market, so offering quality products, competitive price, our enterprise survival in the big market. At any time,we are the best one of your reliable choice.
Main products:single & dual color LED display and full color LED display for indoor/outdoor use.The products can pass CE, RoHS, FCC, IP65, ISO9001 certifications, etc.
P5 , P10 Outdoor Fixed LED Display parameter:
| Module | Parameter NO. | P5 | P10 |
| Size of Module(mm) | 320*160 | 320*160 | |
| Pixel Density(dots/m²) | 40000 dots/m² | 10000 dots/m² | |
| Pixel Pitch(mm) | 5mm | 10mm | |
| LED Encapulation | SMD2727 | SMD3535 | |
| Resolution of Module(dots) | 64(W)*32(H) | 32(W)*16(H) | |
| Thickness of Module (mm) | 17.05(No magnet) | 17.05(No magnet) | |
| Weight of Module (Kg) | 0.5 | 0.51 | |
| Driving Method | Constant Current Driving | Constant Current Driving | |
| Equilibrium Brightness(CD//m²) | ≥7000 CD/m² | ≥5500 CD/m² | |
| Bracket | Size(mm) | 160*160 | 320*320 |
| 320*160 | 160*160 | ||
| Cabinet | Size of Cabinet(mm) | 640*640 | 640*640 |
| Power Supply Mode | 5V/40A*1PC | 5V/40A*1PC | |
| Best Viewing Distance(m) | 5-100m | 10-100m | |
| Best Viewing Angle | 160(W) 120(H) | 160(W) 120(H) | |
| Storage Temperature(ºC) | -35ºC ~ +85ºC | -35ºC ~ +85ºC | |
| Working Temperature(ºC) | -40ºC ~ +50ºC | -40ºC ~ +50ºC | |
| Relative Humidity | 10%-95% | 10%-95% | |
| Power Supply | Working Voltage(V) | AC220V±10% | AC220V±10% |
| Average Power Consumption(W/m²) | ≤500 W/m² | ≤350 W/m² | |
| Max Consumption(W/m²) | ≤1000 W/m² | ≤750 W/m² | |
| Control System | Scan and control Method | 1/8 Synchronous Control | 1/4 Synchronous Control |
| Driving Components | Constant current Driving | Constant current Driving | |
| Technical Parameters | Refresh Frequency | ≥1920 Hz/Sec | ≥960 Hz/Sec |
| (HZ) | |||
| Frame Frequency | ≥60 HZ/Sec | ≥60 HZ/Sec | |
| (HZ) | |||
| Level of Brightness/Color | RGB256 | RGB256 | |
| Level of Gray | 65536 | 65536 | |
| Notes: Specifications are for reference only. Please contact our salesperson for details. All rights are reserved to Led World. | |||
Our service:
- Customer can send your engineer who has electronic and computer knowledge to our factory for the operation and maintenance training;
- maintainance Free:if you find the product has any problems ,pls kindly contact me;
- Your inquiry related to our products or price will be replied in 24hrs;
- Complaint respond period not exceed 24 hours; maintenance guidance and problem solution supplied in 48 hours;

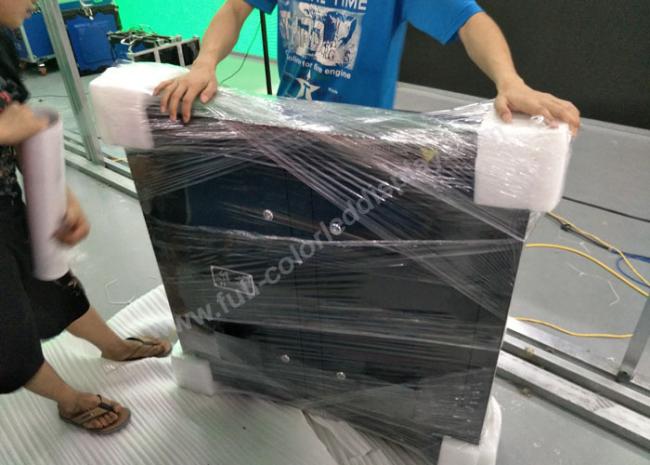

P5 , P10 Outdoor Fixed LED Display product package:
