Wall Mounted Square Outside P10 LED Display Screen With 140° View Angle

Price Negotiable

Price: Negotiable

MOQ: 1 Square Meter

Delivery Time: 12~18 days after receiving the deposit

Brand: Shenzhen LED World

Product Description

Square Outside P10 LED display screen with 140° View Angle for wall Mounted

P10 LED display screen features:

No deformation under sunlight by the use of anti-UV modules;
Easy for installation,high transparency, low wind-resistance and waterproof;
Small cabinet size of 640x640mm with one receiving card for good performance and lightweight;
Drive IC of high refresh rate and high grey scale to ensure stable picture and better visual effect of the screen. The latest horizontal-blanking circuit applied to completely eliminate phenomenon of blanking and smear;
High contrast, high refresh rate make the image without any delay, trailing smear;
CE, FCC, RoHS confirm the high quality;
High stability and reliability with integrated circuit;

P10 LED display screen Parameter:

Parameter	Value
Pixel Configuration	1R1G1B
Pixel Pitch (mm)	10
Pixel matrix per module	32 × 16
Module Dimensions (mm)	320×160
Cabinet Dimensions (LxWxH)/(mm)	960×800×110
Cabinet material	Iron
Module Weight (kg)	1.1
Cabinet weight (kg)	36
Gray scale level	8192
Refresh Rate(Hz)	>1920HZ
Frame Frequency(Hz)	50/60
Signal Transmission Distance (m)	CAT5 cable:<100 m; Single mode fiber:<10 km
Brightness(nit)	>7000
Horizontal Viewing Angle(°)	120
Vertical Viewing Angle(°)	60
AC Input Voltage(V)	100~240
AC Input Frequency(Hz)	50/60
AC Input Power Maximum Value(W/m²)	800
AC Input Power Typical Value(W/m²)	350
Storage Temperature(℃)	_ 40~ 60
Operating Temperature(℃)	_ 20~ 50
Storage Humidity(RH)	10%~90% no condensation
Operating Humidity(RH)	10%~90% no condensation
Waterproof Rating	IP65/IP54
Lifetime Typical Value(hrs)	100000
Notes: Specifications are for reference only. Please contact our salesperson for details. All rights are reserved to Led World.

FQA:

What is the payment method?
We support a variety of payment methods, the most common is the TT."
How about your quality control?
Quality control starts from strict raw material purchase.Each product will run through aging test for 72 hours."
How about your production ability?
We have 10 production lines with all series of automatic production machines. Monthly production ability: 200,000pcs of led modules and 4,000sqm of assembled led displays;"
How long can I get the goods?
Our produce time is about 10-25 working days.When you confirmed the order, we can start production after receiving your deposit(30% TT in advance). we will update the production details in time.we will notice you that we can delivery the goods to you after we get full payment;

Why choose us:

Your logo could be added on the cabinet as requested;
Years of production experience we can very good to control the quality of the product, OEM and ODM accepted;
Low consumption;

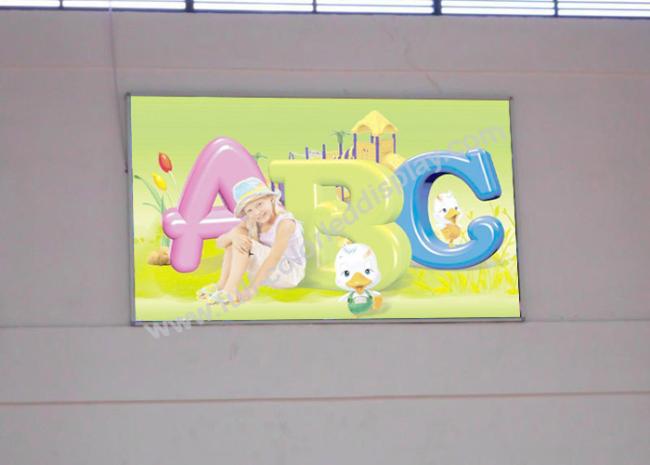

P10 LED display screen Project case:
