Ultrathin 5mm Indoor Rental LED Displays Screens Panels 320×160mm Module
Price:
negotiable
MOQ:
1 square meter
Delivery Time:
15~20 working days after deposit received
Brand:
Shenzhen LED World
Product Description
Remote Ultrathin 5mm Indoor Rental LED Displays screens panels Die Casting cabinet
P5 Indoor Rental LED Displays screens panels product Features:
- It is good high resolution LED display, indoor LED video wall, Indoor LED panel, Indoor LED wall ;
- SMD technology confirm the wide view angle and slim thickness,light weight;
- Model available: P2.5, P3, P4, P4.81, P3.91, P5, P6;
- Rental design, easy to install and dismantle without any tools, save much time for installation and maintenance;
- Optional magnets easy maintenance fast installation;
- Detachable module back cover,easy for maintenance;
- Fast and easy to assemble and dismantle;
- With unique design for structure, cabinet width is only 70mm and 40 KGs. Then can be very convenient to do installation and transportation;
- Installation structure drawing offered FOC;
Trade term:
- Transportation: By sea or air or Express;
- Package: Anti-shaking wooden cabinet, Carton package；
- Hardware: LED display and video controlling system;
- Service: Provide free technology support by phone and e-mail;
P5 Indoor Rental LED Displays screens panels parameter:
| P5 Full Color SMD3528 Indoor LED Display | ||
| Item | Unit | Parameter |
| Pixel Pitch | mm | 5 |
| Resolution of Module | dots | 64×32 |
| Module Size | mm | 320×160 |
| Cabinet Size | mm | 640x640 |
| Resolution of Cabinet | dots | 128*128 |
| Module Weight | kg | 0.68kg |
| Pixel Configuration | 1R1G1B | |
| Drive Chip | SMD16126/IC5024 depend on your requirement | |
| Chip Brand of LEDs | Epistar | |
| Pixel Density | dots/sqm | 40,000 |
| Brightness (White Balance) | nits(cd/sq.m) | ≥7000 |
| Red Wavelength | nm | 620-625 |
| Green Wavelength | nm | 520-525 |
| Blue Wavelength | nm | 470-475 |
| Scan Mode | 1/16 Scan | |
| Viewing Distance | M | 3--35 |
| Best View Distance | M | 5--15 |
| Viewing Angle-Horizontal | deg. | 120 |
| Viewing Angle-Vertical | deg. | 90 |
| Module Maximum Power | W | 25 |
| Max. Power Consumption | W/sq.m | 1,000 |
| Avg. Power Consumption | W/sq.m | 300 |
| Working Voltage | 5V 40A | |
| Power Supply | AC 110/220V | |
| Refresh Rate | Hz/S | >1120 |
| Frame Rate | Hz/S | ≥ 60 |
| Gray Scale | 4096 grades gray | |
| Display Color | 256*256*256 | |
| Display Function | Text,news,advertising,flash,animation | |
| Input Signal | RF,S-Video,RGB,RGBHV,YUV,YC,SDI,HD-SDI,DVI,UXGA,COMPOSITION,etc. | |
| Luminance Degradation | Less than 5% after 1000 hours Ageing test, testing current 30mA, under normal temperature 25°C. | |
| Defective Dot Rate | <0.0001 | |
| Life Span | hours | 100,000 |
| MTBF | hours | >5,000 |
| Storage Temperature | °C | 45 |
| Working Temperature | °C | -20 -- +60 |
| Working Humidity | 10-90%RH | |
| Control System | Synchronization or Asynchronization | |
| Quality Certificate | ETL,CE,RoHS,TUV,FCC class A,ISO9001:2008 | |
| Notes: Specifications are for reference only. Please contact our salesperson for details. All rights are reserved to Led World. | ||
Why choose us:
- Your logo could be added on the cabinet as requested;
- Our product are low consumption;
- Quality guarantee: CE, RoHS, FCC, IP65, ISO9001 + 100% testing before shipping;
- CE,RoHS,FCC, ISO9001;
- Free training is provided for our customers;
Our service:
- Service period: In the Maintenance period of the LED screen body, free of all maintenance charges; After Maintenance period, only charge the material costs fees free of manual work fees;
- We offered technical advice to you before buying our products;
- Protection of your sales area, ideas of design and all your private information;
- Warranty: 2 years;

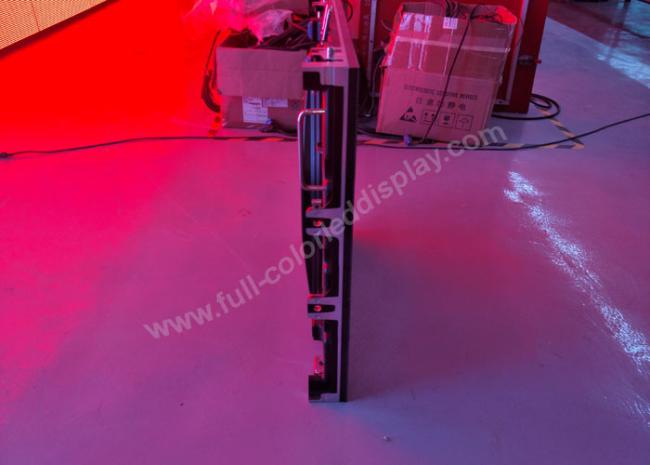

P5 Indoor Rental LED Displays screens panels detail:
