P10 Outdoor DIP Sport Led Screen With Agnesium Aluminum Alloy Cabinet
P10 outdoor DIP Stadium LED Display screen with Agnesium Aluminum Alloy cabinet
P10 outdoor DIP Stadium LED Display screen features:
- DIP stadium perimeter Led Display Specification;
- Anti-UV, anti-oxidation module prevents from deformation；
- The thickness of the cabinet is only 80mm;
- Fast connectio
- Push, turn and tighten, three steps finished within 10 seconds;
- The screen presents delicate and vivid pictures through synchronous adjustment of color and brightness;
- High contrast,ideal gray scale,presenting the clear and bright pictures;
- Good quality and service:
- ISO9001: 2008 QC system, 1% spare parts offered FOC, factory visiting and inspecting is welcome; training in our factory offered FOC; on-line remote service is available; 2 years warranty offered;
- Hi refresh & Hi density for vivid images and hi grayscale colors,leaves a deep impression in viewers mind;
P10 outdoor DIP Stadium LED Display screen parameter:
| The specifications of modules | ||||||
| Items | Parameter | |||||
| Product Model | P10 Full Color Led Module | |||||
| Module size | 160mm*160mm | |||||
| Pixel pitch | 10mm | |||||
| Pixel density | 10000dots/m2 | |||||
| Pixel configuration | 1R1G1B | |||||
| Module resolution | 16dots(W)*16dots | |||||
| Module maximum power consumption | 20W | |||||
| Module Thickness | 25CM | |||||
| Module Weight | 0.55kg | |||||
| Driving method | Constant Current Driving | |||||
| Scanning method | 1/4 scan | |||||
| Interface | HUB75 | |||||
| Brightness | ≥6500-6800cd/m2 | |||||
| The specifications of cabinets | ||||||
| Cabinet size | 960mm*960mm | |||||
| Module quantity | 36pcs | |||||
| Power supply | 5V/40A 5V/60A | |||||
| Cabinet resolution | 96*96dots | |||||
| Optimal viewing distance | 10M~100M | |||||
| Optimal viewing angle | 160°(W) 120°(H) | |||||
| RHWorking temperature | (Work :-20°C~+60°C) | |||||
| System operating humility | 10%-95% | |||||
| The specifications of power supplier | ||||||
| Operating Voltage | AC220V±10% | |||||
| Average power consumption | 350W/H | |||||
| Maximum power consumption | ≤700W/m2 | |||||
| Electric current | ≤20mA(single LED) | |||||
| The specifications of control card | ||||||
| Control Panels | Pentium4 or above | |||||
| Operating system | WIN98/2000/NT/XP | |||||
| Control model | Synchronization with PC | |||||
| The specifications of the main technical parameters | ||||||
| Driving device | Constant Current Driving | |||||
| Refresh rate | ≥600HZ | |||||
| Grey scale | RGB Each 256, can display 16.7M colors) | |||||
| MTBF | ≥9000hours | |||||
| Power switch | Automatic Switch | |||||
| Display Mode | 800*600/1024*768/1280*900 | |||||
| Notes: Specifications are for reference only. Please contact our salesperson for details. All rights are reserved to Led World. | ||||||
Our company:
since its establishment, we are always following the new changes of LED industry. So far, our LED products are sold widely around the world.
Our company leads the way in LED display manufacturing & technology.
Shenzhen LED World is the professional manufacturer of led displays in Shenzhen,Guangdong.
Main products:single & dual color LED display and full color LED display for indoor/outdoor use.The products can pass CE, RoHS, FCC, IP65, ISO9001 certifications, etc.
Our service:
- We also provide the operation manual, software, and so on. Any associated drawing of product and structure and some other professional suggestion will be provided too;
- We offered training to our customer who includes operating and maintenance of our products;
- Aging test at least 24 hours before shipment;
- Well-trained and experienced staffs to answer all your enquires in fluent English;

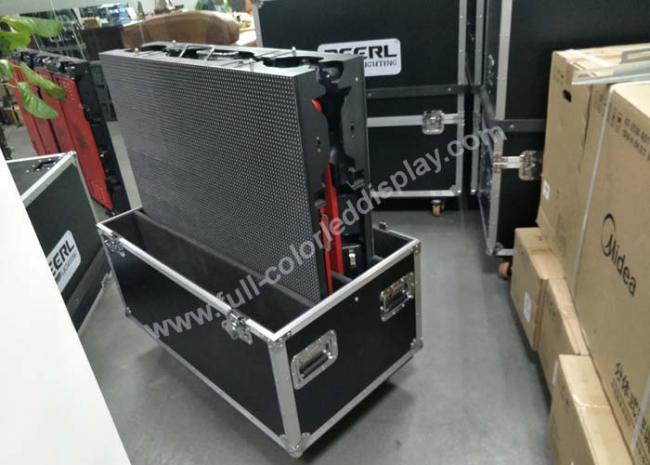

P10 outdoor DIP Stadium LED Display screen product package:
