P3.91 P4.81 P5.95 P6.25 SMD2727 / SMD3535 Waterproof Led Screen
Price:
negotiable
MOQ:
1 square meter
Delivery Time:
12~20 working days after deposit received
Brand:
Shenzhen LED World
Product Description

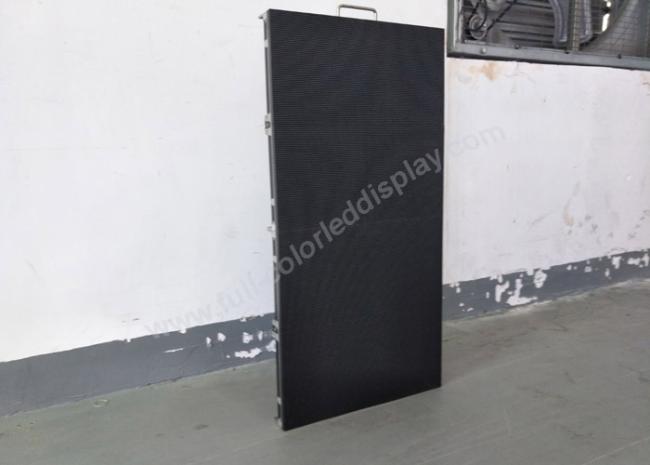

P3.91 P4.81 P5.95 P6.25 Outdoor Rental LED Display with 500x500 die-casting cabinet
P3.91 P4.81 P5.95 P6.25 Outdoor Rental LED Display features:
- High precision control between modules and cabinets;
- Fast splicing without using tools;
- Can be used outdoor in all kinds of weather, and excellent capability of antisepsis, waterproof；
- Excellent waterproof standard, IP65;
- Special design which can make our LED panel both front and rear side maintainance accessible. This will greatly cut down the maintain cost
- Suitable for indoor stage background, event activity, meeting room, club, bar etc
P3.91 P4.81 P5.95 P6.25 Outdoor Rental LED Display application:
Our full color LED display are widely used in the demonstration center,commercial real estate,subway station,subway,big quare,monitoring centers,stations, Showrooms,enterprises,motor racing Circuits,Auto Parts and Maintenance shops,Entertainment complexes,ferry,monitoring ,TV studio and so on .
P3.91 P4.81 P5.95 P6.25 Outdoor Rental LED Display parameter:
| Usage | Outdoor | |||
| Model No. | P3.91 | P4.81 | P5.95 | P6.25 |
| Pixel pitch | 3.91mm | 4.81mm | 5.95mm | 6.25mm |
| Led type(Black) | SMD2727 | SMD2727 | SMD3535 | SMD3535 |
| Resolution(dots/) | 65746 | 43264 | 28224 | 25600 |
| Brightness(Nits) | ≥5500 | ≥5500 | ≥6000 | ≥6000 |
| Drive mode | 1/16 | 1/13 | 1/8 | 1/10 |
| Module size(mm) | 250×250 | 250×250 | 250×250 | 250×250 |
| Panel size (mm) | 500×500 | 500×500 | 500×500 | 500×500 |
| Panel resolution | 128×128 | 104×104 | 84X84 | 80X80 |
| Cabinet weight | 10kgs | 10kgs | 8kgs | 8kgs |
| Powerconsumption | 600/300 | 600/300 | 700/300 | 560/280 |
| Max./Avg. (W/) | ||||
| View angle(H/V) | 160°/140° | 160°/140° | 160°/140° | 160°/140° |
| Refresh rate(Hz) | ≥2000 | ≥2000 | ≥2000 | ≥2000 |
| Grey scale | 16Bits | 16Bits | 16Bits | 16Bits |
| Best view distance | 2-35M | 2-40M | 3-50M | 3-50M |
| Protection level | IP65 | IP65 | IP65 | IP65 |
| Input Power (V) | 110~240 | 110~240 | 110~240 | 110~240 |
| WorkingTemperature | -20ºC~+50ºC | -20ºC~+50ºC | -20ºC~+50ºC | -20ºC~+50ºC |
| Working humidity | 10% ~90% | 10% ~90% | 10% ~90% | 10% ~90% |
| Control | Caste ≤100M, Fiber optical≤10000M | |||
| Notes: Specifications are for reference only. Please contact our salesperson for details. All rights are reserved to Led World. | ||||
Our service:
- 1% spare parts offered FOC;
- Your inquiry related to our products or price will be replied in 24hrs;
- We offered technical advice to you before buying our products;
- Warranty: 2 years;
- Apart from the Indoor LED Display, Visionled also can offer you LED Pharmacy Cross Display, LED Flexible Display, Outdoor LED Display, Indoor/outdoor LED Signs;
P3.91 P4.81 P5.95 P6.25 Outdoor Rental LED Display project case:
