RGB P8 Outdoor Rental LED Display 640x640mm Die Casting With Plug
Price:
negotiable
MOQ:
1 square meter
Delivery Time:
12~20 working days after deposit received
Brand:
Shenzhen LED World
Product Description
No Fans Design P8 Outdoor Rental LED Display with 640x640mm die-casting thin cabinet
P8 Outdoor Rental LED Display quick detail:
- Cabinet size:640x640mm;
- Pixel density:15625 dots/square meter;
- Stable quality:Opto + Silan chipset;
- High quality using MBI5124 or MBI5024.
P8 Outdoor Rental LED Display description:
- 8mm outdoor 1R1G1B LED display panel with light weight 640x640 mm die-casting cabinet.
- Fanless and IP65 waterproof design of cabinet greatly protect cabinet in any outdoor environment;
- Extremely weather-proof, adapt to different kinds of environment;
- No any gaps;
- Ultra-thin design, handle bar also available;
- Made with Die-casting aluminum material,light weight and strong configuration;
- Fast lock with precise positioning function to connect left and right cabinets within 10 seconds, preferred for stage rental screen;
P8 Outdoor Rental LED Display application:
Our full color LED display are widely used in ferry,surrounding,airport,hospital,live meeting,enterprises,enterprise engineering, Stage Performance,insurance company,banquet,touring,gas station,chain shop and so on .
P8 Outdoor Rental LED Display parameter:
| Parameter | Unit | Value |
| Pitch | mm | 8 |
| Brightness | nits | 5,000 |
| Color temperature | deg. K | 6,500 |
| Viewing angle - Horizontal (50% brightness) | deg. | 140(-70 ~ +70) |
| Viewing angle - Vertical (50% brightness) | deg. | 140(-70 ~ +70) |
| Panel weight | kg | 9 |
| Panel width | mm | 640 |
| Panel height | mm | 640 |
| Panel depth | mm | 90 |
| Panel area | sq. m. | 0.4096 |
| Panel material | Die-cast Aluminum Magnesium Alloy | |
| Panel mode | Rental | |
| Operating temperature range | deg. C | -30 to +60 |
| Humidity operating | RH | 10% ~ 90% |
| Pixel type and configuration | R/G/B | 3in1 SMD |
| Resolution per panel | 80x80 | |
| Dot per panel | 6,400 | |
| Dot per sq. meter | 15,625 | |
| LED per sq. meter | 15,625 | |
| Recommended minimum viewing distance | m | 6.08 |
| Recommended best viewing distance | m | 8~24 |
| Colors | 281 Trillion | |
| Grey scale (linear) | Levels | 65,536 levels per color |
| Brightness control | Levels | 256 |
| Contrast ratio | 1,000:1 | |
| Processing depth | bit | 16 |
| Video frame rate | Hertz | 60 |
| Display refresh rate | Hertz | 180~3,000 |
| Input voltage (nominal) | VAC | 110 to 240 |
| Input power frequency | Hertz | 50 to 60 |
| Input power (max) | Watts / panel. | 300 |
| Input power (typical) | Watts / panel. | 120 |
| Lifetime (50% brightness) | Hours | ≥100,000 |
| Red wavelength (dominant) | nm | 620~625 |
| Green wavelength (dominant) | nm | 520~525 |
| Blue wavelength (dominant) | nm | 470~475 |
| Multimedia data format | DVI,MPG,AVI,WMV,RM etc. | |
| Data interconnection | UTP Cat 5/Optical Fiber | |
| Mounting system | Hanging / Fixed | |
| Notes: Specifications are for reference only. Please contact our salesperson for details. All rights are reserved to Led World. | ||
Our service:
- Warmly welcome your visit in our company if avaiable;
- Service scope: If the users find any problem that cannot be solved, please contact with our company, we can response in 24 hours. In order to shorten the maintenance time, Our Company will deploy some spare parts such as power and chips etc;
- Help you to choose suitable products within budget with most economy benefit;
- Personalized solution will be provided to you by our veteran and professional engineers and staffs
- Factory visiting and inspecting is welcome;

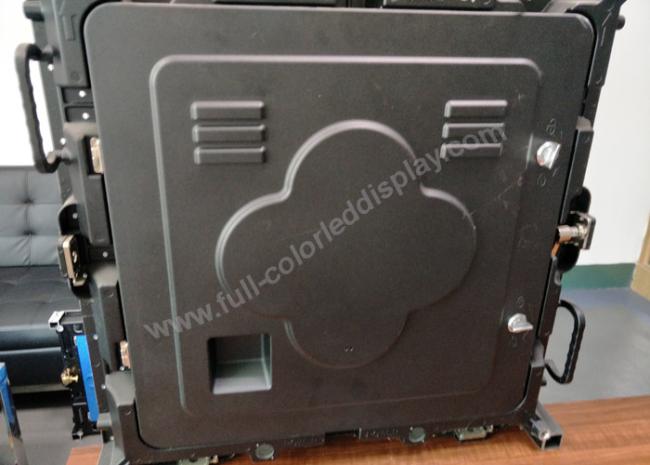

P8 Outdoor Rental LED Display detail:
