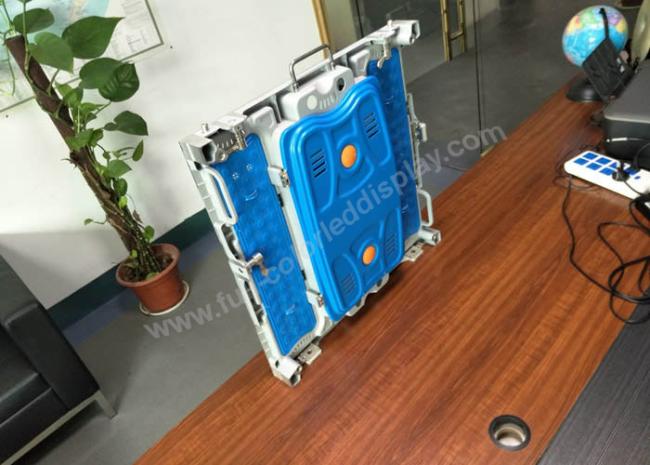

SMD2121 IP43 P3 Indoor Rental LED Display With Meanwell Power Supply
- 576x576mm die-casting both for P3 and P6 indoor / outdoor LED display ;
- Widly viewing angle:140 H,120 V ;
- High definition:111,111 dots/square meter ;
- The common module size:192*192mm .
- SMD led encapsulation confirm wide view angle and good uniformity,wide view angle;
- Delicated image, wide horizon viewing angle at 140 degree to provide better viewing experience with optimal refresh rate (2000Hz), high grey level (14 bits) and high contrast ratio (2000:1);
- It is fast to install and dismantle and very Easy for maintenance;
- Fast installation can be achieved by a tool-free lock system;
- Adopt general led module series with core technology, make it possible for customer to upgrade the screen to smaller;
- Hign brightness and adjustable, short response time, dot to dot maintenance;
P3 Indoor Rental LED Display application:
Our indoor ture color LED screen are widely used in entrance of mansion,advertisement, waiting room of station,power sector,railway stations,stores communities,multi-function hall,movie theater,theme parks,banking, entertainment venues,city roads,cinema,shopping malls and so on .traffic Control and so on .
P3 Indoor Rental LED Display parameter:
| Indoor LED P6 Video Wall | |
| Pitch/mm | P3 |
| Module size/mm | 192x192 |
| Density of pixel/(dots/m2) | 111111 |
| Led encapsulation | SMD2121 |
| Resolution of module | 64X64 |
| Optimum viewing distance | 3-40m |
| View angle / ° | 140 H,120 V |
| Max power consumption/W/M2 | 450 |
| Size of cabinet/mm | 576X576 |
| Resolution of cabinet | 192x192 |
| Weight of cabinet/kg | 13 |
| Driving method | 1/16scan constant current |
| Refresh rate Hz/S | ≥2000 |
| Luminance of white balance | ≥1200 nits |
| Waterproof rate | IP43 |
| Working vlotage | 100-240 VAC |
| Input signal | RF,S-Video,RGB,RGBH,YUV,YC&Composition ,etc |
| Control system | linsn(sending card,receiving cards and Hubs) |
| Notes: Specifications are for reference only. Please contact our salesperson for details. All rights are reserved to Led World. | |
- 24/7 after-sale service
- attractive price! If you have any urgent questions, pls contact me without hesitation;
- Quality insuranc PCIC;
- Low consumption;
Our company:
Shenzhen LED World co.,ltd was founded in 2007, which is a national high-tech enterprises specialized in LED display products R&D, production, sale and engineering services.
Our company technology strength is among the front row in this area, with a vigorous team.
Company in good faith with the talents and distribution to join the LED display system and common development, and make due contribution to the development of LED display system.
P3 Indoor Rental LED Display product detail:
