3.91MM Pixel Pitch Indoor Led Sign Board Hire With 500x500mm Die Caste Cabinet
3.91MM pixel pitch indoor led sign board quick detail:
- 500x500mm die-casting suite for P3.91 , P4.81, P5.95,P6.25 ;
- High definition:65536 dots/M2;
- High quality:using MBI5024 or MY9868IC ;
- The common module size:250*250mm.
- Cabinets adopt rapid assembling sets, Which can be beautiful but also a real rapid disassembling;
- No need the lock bolt by unique design of cabinet connection;
- Adopting SMD1514 technology that makes the LED display has ultra-wide viewing angle and better flatness.
- Off-set tri-angle pixel configuration brings wider viewing angle and better match pattern in white balance;
- Same cabinets configuration design as normally, only with magnetic front design,adhere the modules on tightly with magnets,easy and fast to install and dismantle with a simple push,save up 50% time for assemble and disassemble;
- Angle adjustable -15 degree to +15 degree, inside curved or outside curved both available;
3.91MM pixel pitch indoor led sign board parameter:
| Pixel pitch | 3.91MM/4.81MM | ||
| Module size | 250*250MM | ||
| Module weight | 0.3kg | ||
| LED Type | SMD2121 | ||
| Pixel Config | 1R1G1B | ||
| Total Pixels | 64*32Pixel | ||
| Brightness | ≥1000cd/sqm | ||
| Drive mode | 1/16 & 1/13 scan,constant current | ||
| View angle | 140°/120° | ||
| Waterproof | IP23 | ||
| Size | 500*500mm/500*1000mm | ||
| Resolution | 250x250dots | ||
| Module Qty | 1 cabinet | ||
| Weight | 8kg/13kg | ||
| Input voltage | AC110/220V | ||
| Waterproof(Front/Rear) | IP65/IP54 | ||
| Cabinet material | Die-casting Aluminum cabinet | ||
| Lock | yes | ||
| Connectors | Signal | ||
| Size | 3m*4m | ||
| Resolution | 250*250dots | ||
| Cabinet quantity | 48pcs/24pcs | ||
| Best viewing distance | 3m/4m-50m | ||
| Operation temp | -20℃~60℃ | ||
| Operation Humidity | 10%~90% | ||
| Maximun Power | 550W | ||
| Average Power | 250w | ||
| Refresh rate | More than2100HZ | ||
| Frame rate | 60 frame/s | ||
| Gray scale | >65536grade | ||
| Colors of display | 4.4 trillion | ||
| Brightness adjustment | Manual 256 Levels | ||
| Warranty years | 2 Years | ||
| MTBF | >5,000 hours | ||
| Life span | >100,000 hours | ||
| Operation system | Windows Series | ||
| Information source | Many kinds of signal access: can input TV signals ,DVD signals , DVI, S-VIDEO, R | ||
| Notes: Specifications are for reference only. Please contact our salesperson for details. All rights are reserved to Led World. | |||
- Quality insuranc PCIC;
- 100% QC inspection before shipping;
- We have integrated the sales team, let you no worries about pre-sales to after-sales;
- Your reply will be replied within 24 hours;
- Engineer guide install and operate online
Our company:
Shenzhen LED World co.,ltd specialized in the development and manufacture of LED display system products.Founded in 2007, with the registered capital 30 millionRMB, owns workshop area 9,000 m2. Branched offices and agents all over China, with about 400 employees.
Through our efforts, our products have been sold well in Europe, North/South America, Australia, the Middle East and Southeast Asia. Welcome to contact Shenzhen LED World today!
It export from Year 2011, have Own Export License.

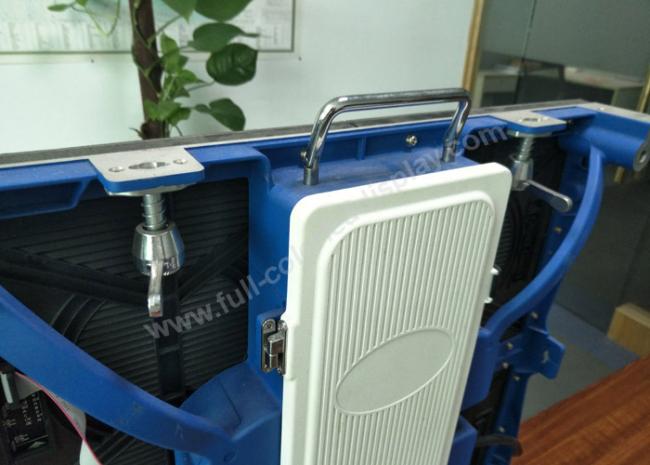

3.91MM pixel pitch indoor led sign board product detail:
