1R1G1B 2.5mm Indoor Rental Led Display SMD 480x480 Mm Die Casting Cabinet
- Caibnet size: 480x480mm ;
- Encapsulation: SMD2121 Black;
- High refresh rate: more than 1920HZ ;
- Very light: 7.2kg / panel ;
- High refresh IC: MBI5153
- Easy assembly & disassembly by hands without tools.
- Low: Excellent heat dissipation design, Low noise, light weight, low cost for transportation
- Our LED display takes with fast heating spread, to protect screen effectively and increase the use life largely;
- The product is with convenient installation, and flight connectors connecting. Now it has become the most popular fashion elements at the digital stage and bar;
- Consistent color temperature and brightness,no mosiac and blind spot;
- Suitable for any indoor or outdoor, fixed or rental application;
Application:
Wide applied in high end hotel,event,image promotion, conference train station,tennis,Celebration,
museum,Concerts,government agencies,waiting room of station,outside parking lots,amusement parks,fitness hall,leisure square, banking,airports, Convenience Stores,live broadcase and so on .
Parameter:
| Pitch | P2.5mm(indoor for fixed/rental screen) |
| Encapsulation | SMD2121 Black |
| Pixel Configuration | 1R1G1B |
| Driver Method | 1/32 |
| Module Size(H*W/mm) | 160*160 |
| Module Resolution(H*W/dots) | 64*64 |
| Pixel Density(dots/M2) | 65536 |
| Average Power Consumption | 300 |
| (Watt/M2) | |
| Max. Power Consumption | 1200 |
| (Watt/M2) | |
| Brightness(CD/M2) | ≥1200 |
| Cabinets Size(W*H*T/mm) | 480mm*480mm*75mm |
| Unit Cabinet Weight(kg) | 7.2kg |
| Driver IC | MBI5153 |
| IP Rating | IP31(front/back) |
| Installation Method | Fixed / Rental |
| Cabinets material | Die-cast aluminum |
| View Angle | 160(H)/ 160(V) |
| Refresh Rate | ≥5600Hz |
| Frame Frequency | ≥60Hz |
| Voltage Input | AC110V/220V±15% 40~65HZ |
| Operating Temperature | -20ºC~60ºC ,storage for :-30oC~+90oC |
| Maintenance | Rear |
| System Working Environment Humidity | 10%-90%RH |
| Life Span(Hours) | ≥55,000Hours |
| Color Temperature | 5600K±500 |
| Power Supply | Meanwell with CE/UL proof |
| Control system support | Linsn/ Novastar |
| Compliant standard | CE(EMC/LVD) |
| Notes: Specifications are for reference only. Please contact our salesperson for details. All rights are reserved to Led World. | |
- Respond within 24 hours;
- Quick delivery: 10-25 working days;
- Service advantage: Better service at same situation, better cooperation at same service;
- First-class led chip and IC
- Quick response: replying inquiry within 12hrs;
Our company:
Shenzhen LED World Optoelectronics Limited is the top professional LED Display manufacturer, and has about 9 years experience in LED screen industry, more than 9000sqm workshop, 400 workers, automatic production line, strong R&D team. Our products have passed RoHS, 3C, FCC and CE quality authentication.
Shenzhen LED World co.,ltd consistent source of strength for the customer is the company's growth and expansion, the company has the perfect pre-sale tracking service system and truly customer -centric marketing module.Our company offers user-friendly products that optimize productivity and business efficiency and maintain the highest standards of design and quality.

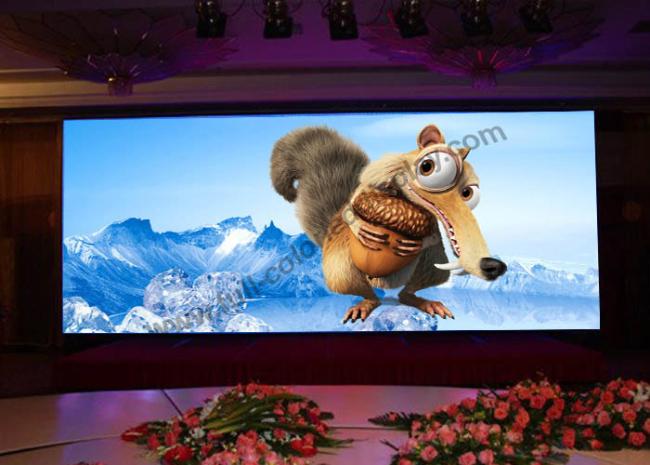

Project case:
