1/8 Scan P6 SMD3528 indoor LED Video Wall 1920HZ refresh rate 768x768mm cabinet
Price:
negotiable
MOQ:
1 square meter
Delivery Time:
15~18 days after receiving the deposit
Brand:
Shenzhen LED World
Product Description
1/8 Scan P6 SMD3528 indoor LED Video Wall 1920HZ refresh rate 768x768mm cabinet
Features:
- Quiet fan design, excellent heat dissipation;
- High-performance metal plate cabinet, concise cable;
- Vivid image and video, rich in describing the details of color;
- Extruded Aluminum or Die-casting aluminum cabinet, high strength, no deformation;
- Snap joint mask design, more easier to insallation, less maintenaince cost
Application:
Our indoor ture color LED screen are widely used in large entertainment plaza,motor racing Circuits, press conference,factories,elevator,securities exchanging,large events,theme parks,banking,Government facilities,bank,entertainment, waiting area,beauty shop,movie theater,company presentations,pharmacy,live show,commercial real estate and so on .
Parameter:
| Item No. | P6 |
| Classification | Full color |
| Pixel pitch | 6mm |
| Size of module (mm*mm) | 192*96 |
| Pixel density | 27777 dots/m2 |
| Pixel composition | 1R1G1B |
| LED encapsulation | SMD3528 |
| Resolution of module | 32*16 |
| Best viewing distance | 4m |
| Best viewing angle (Horizontal/Vertical) | 140°/120° |
| Max power consumption | 1200W/m2 |
| AVG power consumption | 300~650W/m2 |
| Size of standard cabinet(mm) | 768*768 |
| Resolution of standard cabinet | 128*128 |
| Weight of standard cabinet | 30kg |
| Driving method | 1/8 Scan |
| Frame frequency | 60Hz/s |
| Refresh rate | ≥1920HZ |
| White balance brightness | ≥1800cd/m2 |
| Working /Storage environment temperature | Working:-20°C~50°C Storage:-40°C~60°C |
| Operating ambient humidity | Working:10%--95% HR Storage:10%--95% HR |
| IP grade | IP20~IP54 |
| Working voltage | AC 220±10% or 110±10% |
| Grey scale | 14 bits per color |
| Brightness adjustment | 256 levels of each color (RGB) can be adjusted manually |
| Signal input | RF, S-Video, RGB, RGBHV, YUV, YC.Ect |
| Control system | Sending Card+ DVI Graphic card+ Receiving card+ Video Processor ( optional) |
| MTBF | ≥5000 hours |
| Life span | ≥100000 hours |
| Malfunction dot rate | Less than0.0001 |
| Transmission distance | LAN cable less than100m;Optic fiber transmission :MMF less than 500m, SMF less than 20km |
| Notes: Specifications are for reference only. Please contact our salesperson for details. All rights are reserved to Led World. | |
Our service:
- Training in our factory offered FOC;
- Help you to choose suitable products within budget with most economy benefit;
- We also provide the operation manual, software, and so on. Any associated drawing of product and structure and some other professional suggestion will be provided too;
- We offered software customization for our your specific usage;
- In the Maintenance period of the LED screen body, free of all maintenance charges; After Maintenance period, only charge the material costs fees free of manual work fees;
- Service scope: If the users find any problem that cannot be solved, please contact with our company, we can response in 24 hours. In order to shorten the maintenance time, Our Company will deploy some spare parts such as power and chips etc;
- 2 years for warranty, service time: 24 hours*7 days;

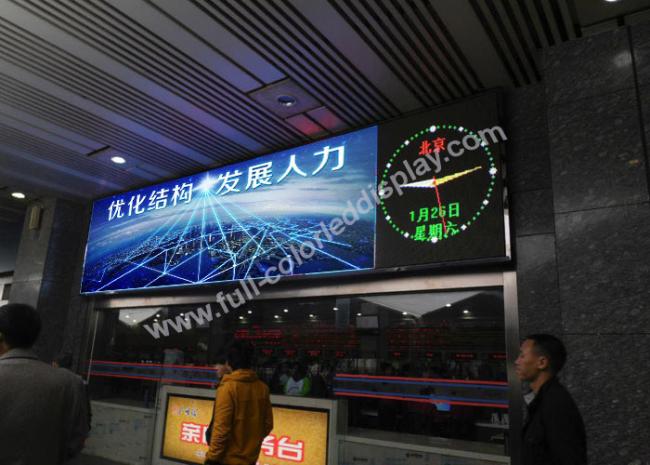

Project case:
