SMD2121 Full Color Indoor LED Screen Rental with 576x576 mm die casting cabinet
Price:
negotiable
MOQ:
1 square meter
Delivery Time:
15~20 working days after deposit received
Brand:
Shenzhen LED World
Product Description
SMD2121 Full Color Indoor LED Screen Rental with 576x576 mm die casting cabinet
Features:
- Hanging beam structural and back support design makes it easy and fast for installatio ;
- Neat and Hidden Wiring allow the led display more tidy and beautiful;
- Die-casting aluminum, good heat dissipation ;
- High quality LED chip and high anti-static electricity capacity;
- Large viewing angle and smooth displaying provide excellent visual effect from every angle;
- High refresh rate,high gray scale,ghost-canceling,low power consumption,and support dot-by-dot-calibration.
Our company:
LED WORLD also has got good reputation from different users, our products are mainly supplied for international market, so offering quality products, competitive price, our enterprise survival in the big market. At any time,we are the best one of your reliable choice.
Main products:single & dual color LED display and full color LED display for indoor/outdoor use.The products can pass CE, RoHS, FCC, IP65, ISO9001 certifications, etc.
Parameter:
| Item Name | Parameter |
| Model No | LW-RI 3 |
| Module size | 192mm*192mm |
| Pixel pitch | 3mm |
| Pixel Density | 111111 pixels/m2 |
| Pixel configuration | 1R1G1B |
| LED Package mode | SMD2121 |
| Module resolution | 64dots(H)*64dots(V) |
| Drive type | Constant drive |
| Scan mode | 1/16 scan |
| Port type | HUB75-A |
| Brightness of white balance | ≥1700cd/m2 |
| Cabinet Dimension | 576mm*576mm |
| Module Quantity | 9pcs |
| Cabinet Resolution | 192*192 |
| Cabinet Material/Type | Die Casting Aluminum for rental purpose |
| Best viewing distance | 3M~15M |
| Best viewing angle | 120°(H) 60°(V) |
| Average Power consumption | 500W/m2 |
| Max.Power consumption | ≤1150W/m2 |
| Current | ≤20mA(single LED) |
| Frame Frequency | ≥60Hz |
| Refresh frequency | ≥600HZ |
| Power Supply Mode | AC220±10% 50Hz/AC110±10% 60Hz |
| Temperature | storage:-35ºC~+85ºC |
| working:-20ºC~+50ºC | |
| Humidity | 10%-95% |
| Grey scale/colors | 256levels of each color(RGB)/16.7M colors |
| Screen Lifespan | ≥100,000 hours |
| Screen Plainness | <±1mm |
| Blind Spot Rate | <0.0001 |
| CPU | Pentium4 or above |
| Operation system | WIN98/2000/NT/XP |
| Control method | Synchronization |
| Notes: Specifications are for reference only. Please contact our salesperson for details. All rights are reserved to Led World. | |
FQA:
- What are LED QTY ?
- LED QTY is the quantity of LED lamps per square.
- How to install led display?
- We will provide drawing of steel structure or hanging truss,then you can install led display very easy;"
- What is viewing angle?
- Viewing angle is the maximum angle at which a display can be viewed with acceptable visual performance. It includes horizontal viewing angle and vertical viewing angle.

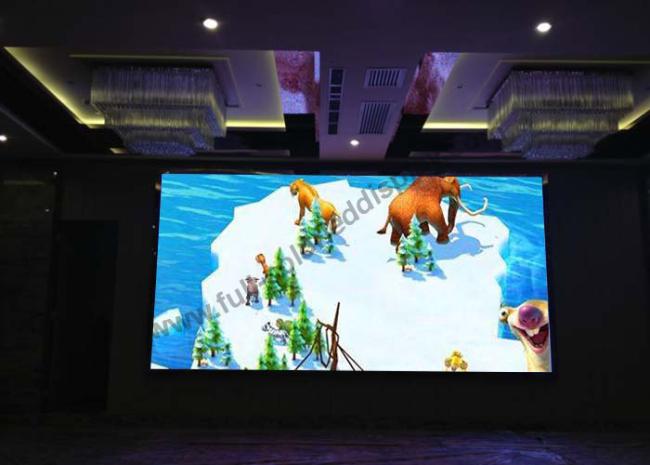

Project case:
