1R1PG1B Indoor Rental LED Display Video Wall 500x1000 Mm Cabinet 3840hz Refresh Rate
Price:
negotiable
MOQ:
1 square meter
Delivery Time:
12~18 days after receiving the deposit
Brand:
Shenzhen LED World
Product Description
1R1PG1B Indoor Rental LED Display Video Wall 500x1000 Mm Cabinet 3840hz Refresh Rate
Quick detail:
- Model NO. : LW-RI3.91 ;
- Module size: 250mm x 250mm ;
- Module weight: 0.318KG ;
- Project case location: China ;
- Quantity:120 pcs cabinets ;
- Install date: 12th May 2016
Application:
It can be widely used in Malls, banks and automobile sales centers,Airports, rail and bus stations, other facilities of transport infrastructure,Entertainment centers, casinos, night clubs, restaurants,City information systems,Architecture and so on .
Specification:
| Unit Module | Item: | Parameter |
| Model: | LW-RI3.91 | |
| Pixel Pitch: | 3.91 mm | |
| Pixel configuration: | 3in1 (1R1PG1B) | |
| Module Size: | 250mm * 250mm | |
| Module Resolution: | 64dots(W) * 64dots(H) | |
| Module Thickness: | 1.0 CM | |
| Module Weight: | 0.318KG | |
| Package LED mode: | SMD2121 | |
| Max Power: | 18W | |
| Pixel Density: | 65536 dots / SQM | |
| Driving Method: | Constant Current Driving | |
| Scan Method: | 1/16 scan | |
| Interface Way: | HUB 75 | |
| Brightness: | ≥ 2200CD /SQM | |
| Unit Cabinet | Cabinet Size: | 500mm * 500mm (Customize) |
| Cabinet Composing: | 18 pcs | |
| Power Supply Mode: | 5V/60A(4pcs/cabinet) | |
| Cabinet Resolution: | 128dots * 128dots | |
| Optimal Viewing Distance: | 3-200M (according to the big screen size) | |
| Optimal Viewing Angle: | Horizontal angle: 160 degree; | |
| Vertical angle: 120 degree | ||
| Environment Temperature: | Storage: -40 degree `~ +85 degree | |
| Work: -20 degree ~ +60 degree | ||
| Relative Humidity: | 10% ~ 95% | |
| Power | Operating Voltage: | AC:100V~120V AC:220~240V |
| Average Power: | 120W/ SQM | |
| Max Power Consumption: | ≤ 360W/SQM | |
| Current: | ≤ 20mA (single LED) | |
| Control System | Computer: | Pentium4 or above P4 or above |
| Operate System: | Win98/2000/NT/XP | |
| Control Mode: | Synchronization with PC | |
| Main Technical Parameter |
Driving Device: | IC Constant Current Driving |
| Refresh Rate: | ≥ 3840Hz | |
| Gray/Color: | RGB each 256 grade, can display 16.7color | |
| MTPF: | ≥ 10000hours | |
| Power Switch: | Automatic Switch | |
| Display Mode: | 800*6001024*7681280*9601980*1024 | |
| Notes: Specifications are for reference only. Please contact our salesperson for details. All rights are reserved to Led World. | ||
FAQ:
- What are LED Type?
- LED Type is the description of LED lamp, for instance, the brand, the shape in physical, the size of the lamp, etc.
- May I know the package details?
- For fixed installation, we use wooden case, usually 2 or 4 cabinets in 1 wooden case;
- For rental market, we suggest you use flight case, generally 8 cabinets in one flight case.
- It's safe to protect the screen on the way, also economical;
- Guarantee
- (1) We guarantee all our displays, modules, parts for two full year. During this time, we will replace or remand our goods for free if there is something wrong with them.
- (2) We will provide maintenance for a lifetime and charge for the raw materials only

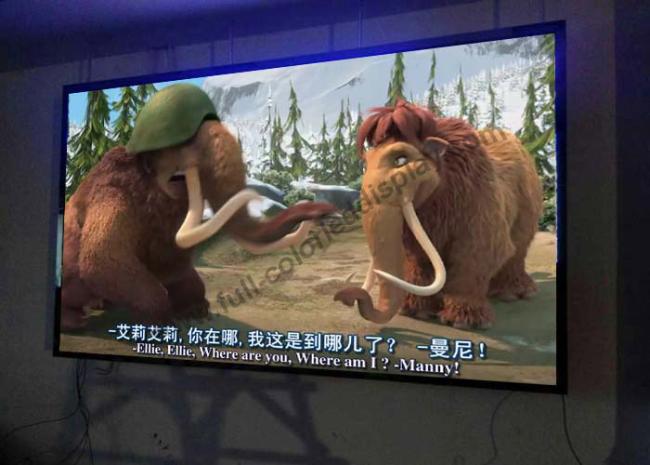

Project:
