P1.56 Ultral HD LED Display Indoor Led Video Display Screen With Die Casting Cabinet
P1.56 ultral HD indoor rental led video display screen with die-casting cabinet
Product description:
- It is desinged for high-end atmosphere, can able to display ultra-high-definition picture, video and text ；
- Small pixel pitch make the screen high definition ;
- Easy for installation and transportation ;
- SMD encapsultion make the viewing angle very large ;
- High Pixel Density: P2.5: 160000Pixel/㎡,P1.92: 270400Pixel/㎡,P1.667: 360000 Pixel/㎡, P1.56: 409600Pixel/㎡

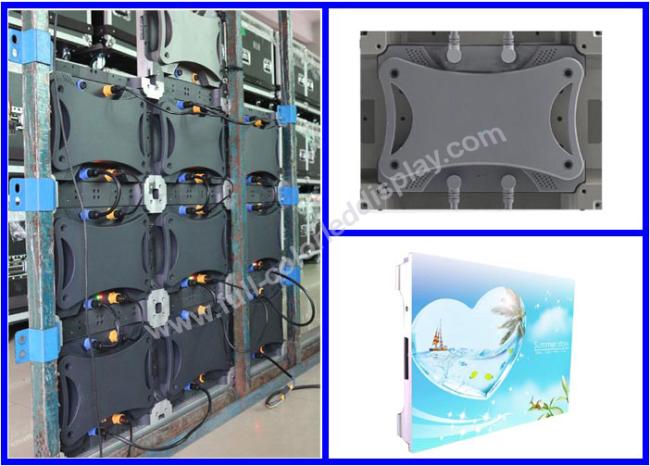

- Cabinet size is 400x300mm, the screen is easy to spell 16: 9 or 4: 3 ratio ;
Our service:
- Can be customized according to customer requirements ；
- Good pre-sale, we can provide screen assembly drawings and steel structure installation drawings ；
- Good after-sales, we can remotely teach customers how to use soft to control LED display；
- Warranty period 2 years free maintenance ;
Parameters:
| Item | Parameters | Small pixel pitch | |||
| Pixel | Pixel Pitch | 1.56mm | 1.667 | 1.92mm | 2.5mm |
| Pixel density(dots/m2) | 409600 | 360000 | 270400 | 160000 | |
| Module | LED Configuration | SMD1010 | SMD1010 | SMD1010 | SMD2020 |
| Module Size(mm) | 200×150×17 mm | ||||
| Cabinet | Cabinet Size(mm) | 400×300×75 mm | |||
| Cabinet Material | die casting aluminum | ||||
| Cabinet weight(kg) | 5.0kg | ||||
| Electricity parameter | Viewing Angle | H 140°,V 120° | |||
| Drive Method (S) | 1/32 | 1/30 | 1/26 | 1/32 | |
| Color Depth(nits) | ≤800 | ≤1000 | ≤1000 | ≤1000 | |
| Color Depth | 16bit | ||||
| Refresh Rate(Hz) | ≥2800 | ≥1200 | ≥2800 | ≥2800 | |
| Voltage | 110/240V | ||||
| Average.power(W / m2) | 400 | 330 | 370 | 330 | |
| Max.power(W / m2) | 1200 | 1000 | 1100 | 1000 | |
| IP Grade | IP31 | ||||
| Operating temperature/humidity | temperature:-20ºC~ 50ºC humidity:10~90%RH | ||||
| Storage temperature/humidity | temperature:-40ºC~ 60ºC humidity:10~90%RH | ||||
| Lifetime(h) | ≥50000 | ||||
| Control system | Linsn/Novastar | ||||
| Notes: Specifications are for reference only. Please contact our salesperson for details. All rights are reserved to Led World. | |||||
FQA:
Q1:How to pay the goods ?
A1:You can transfer Western Union or TT ;
Q2:What are viewing angles?
A2:Viewing angle is Horizontal 160 degrees vertical 120 degrees angle ;
Q3:How long is your product's production cycle?
A3:Our produce time is about 8-25 working days.
after receiving your deposit(30% TT in advance). 70% full payment before delivery the cargo ;
Our company:
Shenzhen LED World Optoelectronics Limited is the top professional LED Display manufacturer, and has about 9 years experience in LED screen industry, more than 9000sqm workshop, 400 workers, automatic production line, strong R&D team. Our products have passed RoHS, 3C, FCC and CE quality authentication.
Product case:
Product detail:
