Black SMD2121 Indoor Rental LED Display Low Voltage Power Supply 64x64 Dots
Black SMD2121 Indoor Rental LED Display / P2.5 led video panels with 1/32 scan
Product feature:
- Cabinet seamless stitching, high grayscale, very good performance ;
- Wide viewing angle range, small pitch, high-definition close view is also very beautiful ；
- 480x480mm die-casting cabinet suitable for P2 and P2.5 pitch products ;
- Black lamps with good consistent performance and contrast , clarity can reach 1080P ;
- Low voltage power supply, the product temperature is not high, making the product life expectancy increased .
Our wervice:
- Our products can be lifelong free maintenance and upgrades ;
- Free training, you can arrange engineers to our training ；
- Welcome to visit our company and review ;
- If you encounter any problems can not solve and contact us, we will reply within 18 hours ；
Parameters:
| Item | Parameter | Value |
| LED module | Pixel Pitch | 2.5mm |
| LED Type | SMD2121 | |
| Emitting Color | RGB | |
| Pixel Configuration | 1R1G1B/R:G:B=3:6:1 | |
| Module Size | 160x160mm | |
| Module Pixel | 64x64 dots | |
| Module Thickness | 15mm | |
| Drive Voltage | DC5V | |
| Drive Current | 2.7~3.2A | |
| Port Type | HUB75 | |
| cabinet parameter | Standard Cabinet Size | 640x640x75mm |
| Cabinet Weight | 7.35KG | |
| Screen parameter | Brightness | >1200CD/sqm |
| View Angle | >120 dgree(H), >120degree(v) | |
| Best Viewing Distance | 2-5m | |
| Frame Frequency | >60Hz | |
| Refresh Rate | >1920Hz | |
| Signal Input | Composite, S-video, Component, VGA, DVI, HDMI, SDI, HD-SDI | |
| Scan Mode | 1/32 scan | |
| Drive IC | 5020 | |
| Max.Power Consumption | 650W/sqm | |
| Ave. Power Consumption | 220W/sqm | |
| Control Distance | 100M(Ethernet) 500M(Multi-fiber) 10KM (Sigle-fiber) | |
| Flatness | Screen Surface≤0.5mm,Pixel Pitch≤0.3mm | |
| Operation Temperature | -10℃~+50℃ | |
| Working Humidity | 10%-98% | |
| Notes: Specifications are for reference only. Please contact our salesperson for details. All rights are reserved to Led World. | ||
Application:
Our products are widely used in 4S shop, communications, stadiums, conference video center, bustling commercial center, restaurants, securities exchanging, airport, stage renting, cinema, mansion video wall, shopping malls, show, station waiting area, sports events, conference , Traffic control, Shopping Guide, Entertainment complexes, Internet bar, Concerts, schools ...
FQA:
Q1:Why Choose US?
A1: More than 8 Years experience on Producing LED module ,We focus on Quality and Service,and keep your price competitive in your local markets.
Q2:What about the lead time?
A2: Order less than 40 square meter led time take 15 working days;
Q3: What are Module resolution?
A3: Module resolution is the number of pixels per module.
Q4: What pitch?What resolution? What size?
A4:Resolution refers to the number of LED pixels;
Q5:Whats your payment term?How long it takes to delivery?
A5: We accept T/T and L/C, For both T/T and L/C, At least 30% deposit in advance, and the rest 70% before delivery.Our average Production time is 7-15 days, after receiving the deposit

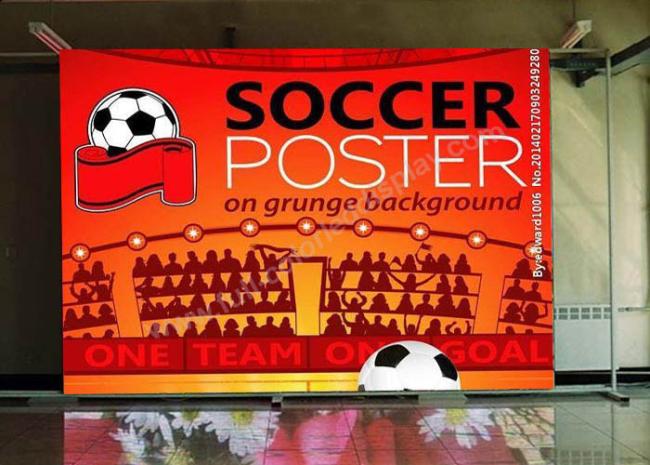

Product case:
