3 In 1 Indoor Rental LED Display Outdoor Led Screen Hire With 192mm×192mm Module
Price:
negotiable
MOQ:
1 square meter
Delivery Time:
12~20 working days after deposit received
Brand:
Shenzhen LED World
Product Description
P3 RGB 3 in 1 indoor led screen rental with 192mm×192mm module AC220V / 110V
Product feature:
- High-strength 576x576mm die-cast aluminum case can be installed with P3 and P6 LED modules ;
- The cabinet is ultra thin and ultralight, only 80mm thick, 7.5kg / cabinet ;
- High-grade adjustment of the locks makes the installation fast and can adjust the gap between the cabinets ;
- Higher refresh rate, in the stage show when there is no ripple, to show a more perfect effect ;
- Product input interface with S-Video, Composite, YUV, RBG, SDI, HKSDI, Data SVI up to SXGA ;
- Good thermal design, do not need to install the fan, the screen body running very quiet .
Our advantage:
- We use high-grade LED lamps and driver ICs to ensure product quality ;
- Our products can be CE, RoHS, FCC, UL and ISO9001 certification ;
- We are a professional manufacturer, providing first class service ;
- We offer free skills training .
Parameter:
| Item | Technical indexes | Specification | Specification |
| Modules | Pixel pitch | 3mm | 6mm |
| Module size | 192mm×192mm | 192mm X 192mm | |
| Module resolution | 64×64 | 32 X 32 | |
| Red wavelength | 625±2nm | 625±2nm | |
| Green wavelength | 525±2nm | 525±2nm | |
| Blue wavelength | 470±2nm | 470±2nm | |
| Module density | 111111dots/sqm | 27777dots/m2 | |
| cabinet | Cabinet Size(mm) | 576x576x80 | 576x576x80 |
| Cabinet solution | 192x192 dots/pcs | 96x96 dots/pcs | |
| Electricity parameter | Pixel configuration | RGB,3 in 1 | 1R1G1B |
| Colors | 16777216 | 16777216 | |
| Best viewing distance | 3m---15m | ≥6m | |
| Horizontal viewing angle | 140° | 140° | |
| Vertical viewing angle | 120° | 120° | |
| Maximum power consumption | 1200W/sqm | 1200W/sqm | |
| Average power consumption | 600W/sqm | 600W/m 2 | |
| Brightness | 2500cd/sqm,adjustable | 2200-3500cd /m 2 | |
| Gray scale | 16bits of per color | 16bits per color | |
| Driving method | 1/16scanning | 1/8 or 1/16 scanning | |
| Frame frequency | 60Hz | 60Hz | |
| Refresh frequency | 1920 Hz | 1920 Hz | |
| Working voltage | AC220V/110V±10% | AC220V/110V±10% | |
| IP grade | IP20-45 | IP20-45 | |
| Working temperature | -20°C~80°C | -20°C~80°C | |
| MTBF | More than 10,000 hours | More than 10,000 hours | |
| Life span | More than 100,000hours | More than 100,000hours | |
| Notes: Specifications are for reference only. Please contact our salesperson for details. All rights are reserved to Led World. | |||
Our company:
Shenzhen LED World co.,ltd specialized in the development and manufacture of LED display system products.Founded in 2007, with the registered capital 30 millionRMB, owns workshop area 9,000 m2. Branched offices and agents all over China, with about 400 employees.
Our company is professional in the development and manufacture of LED display systems.
Our company leads the way in LED display manufacturing & technology.
top 3 among same-grade manufacturers in China.

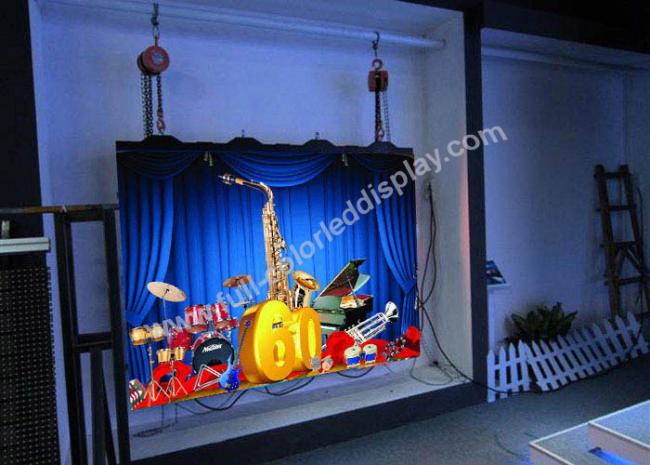

Project case:
