6mm Pixel Pitch Outdoor Rental LED Display With Good Dust / Heat Dissipation
P6 Epstar and Silan chip Outdoor Rental LED Display Board with IP65 waterproof
Product feature:
- Die-cast aluminum door design, with good dust, heat dissipation ;
- Cabinet with indicator light, easy to monitor the screen body status ;
- SMD3535 package, with a wide viewing angle range and high brightness ;
- Thin die-cast aluminum cabinet design, saving installation and air transport costs ;
- Fast lock design, so that the installation and removal more convenient and quick
Our service:
- You can come to our factory for a comprehensive technical training ;
- Service hours 24 hours * 7 ;
- Can be customized according to customer requirements products, improve competitiveness ;
- We will be English professional engineers to communicate with you will be more smooth .
Parameter:
| Item | Parameter | P6 |
| Module | Chip | Epstar + Silan chip |
| Chip size | Red 9 mil, Green 12. Blue 12mil | |
| Light type | SMD | |
| Red wavelength | 625±2nm | |
| Green wavelength | 525±2nm | |
| Blue wavelength | 470±2nm | |
| Pixel Pitch | 6mm | |
| Module Size | 192mmX192mm | |
| Module Resolution | 32 X 32 (dots) | |
| Cabinet | Cabinet size | 576x576 mm |
| Cabinet resolution | 96 dots x 96 dots | |
| Electricity parameter | Density of pixel | 27777dots/m2 |
| Pixel configuration | 1R1G1B | |
| Colors | 16777216 | |
| Best viewing distance | ≥4m | |
| viewing angle | 120°/120° | |
| Maximum power consumption | 20W | |
| Brightness | 2000cd/m2 | |
| Gray scale | 14bits per color | |
| Color temperature | 6500k | |
| Control method | Synchronization or Asynchronization | |
| Driving method | 1/16 scanning | |
| Frame frequency | 60Hz | |
| Refresh frequency | ≥1920Hz | |
| Working Voltage | DC5V | |
| IP grade | IP54 | |
| MTBF | More than 8000hours | |
| Life Span | 80,000hours | |
| Notes: Specifications are for reference only. Please contact our salesperson for details. All rights are reserved to Led World. | ||
Application:
Our product widely used in monitoring, banquet,touring,stadiums,outdoor,Offices,hotel,high speed railway station,bar,Sports events,Indoor Sports Arenas,entertainment, banks, government,train/bus station,Volleyball and Basketball courts, live broadcast, movie theater,railway stations,information center,gas station,toll station,Churches,feast,live meeting,securities exchange, station waiting area...
Our company:
Shenzhen LED World co.,ltd specialized in the development and manufacture of LED display system products.Founded in 2007, with the registered capital 30 millionRMB, owns workshop area 9,000 m2. Branched offices and agents all over China, with about 400 employees.
since its establishment, we are always following the new changes of LED industry. So far, our LED products are sold widely around the world.
Our company technology strength is among the front row in this area, with a vigorous team.

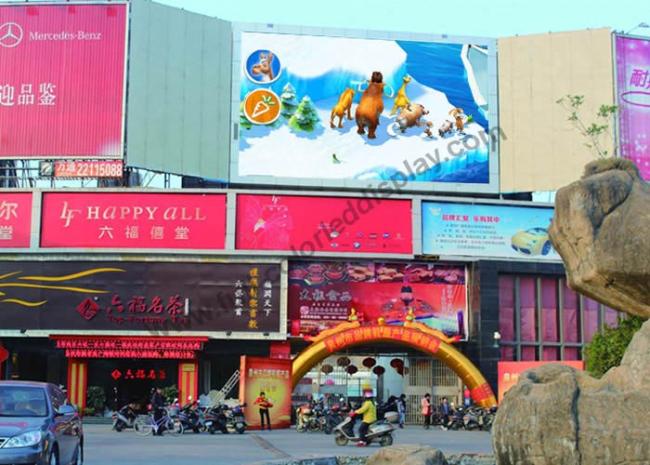

Project case:
