Ultrathin 1/26 S RGB HD LED display screen P1.935 480x480mm die casting cabinet
Ultrathin 1/26 S RGB HD LED display screen P1.935 480x480mm die casting cabinet
P1.935 HD LED display screen Features:
- Ultra-high resolution, high-definition, rich color, wide viewing angle, long life, energy saving, the product is perfect;
- The cabinet from top to bottom seamless stitching, the screen bright and dark lines, the angle effect is great ;
- Support 2K and 4K HD screen display ;
- The source is HDMI, DVI, VGA, SDI, media play, TV, DP, BNC and so on;
- Cabinet is die-casting material, good strength, ultra-thin, the thickness of only 78 MM ;
Why choose us:
- 24/7 days for you ;
- Excellent quality, good price, because we use fully automated machinery and equipment, saving a lot of staff ;
- We have 9 years of LED display production experience ;
- We have the top product R&D development team, so that your product is very competitive ;
P1.935 HD LED display screen Parameter:
| Item | Model | LW-VI1.935 |
| Module | Pixel pitch(mm) | 1.935 |
| Configuration | SMD1010 | |
| Module dimension(mm) | (W)240x(H)240 | |
| Module weight(kg) | 0.5 | |
| Panel | Panel dimension(mm) | (W)480x(H)480x(T)75 |
| Panel structure | Die-casting aluminum | |
| Panel weight(kg) | 7.8 | |
| Electricity parameter | Pixel density(dots/㎡) | 266944 |
| Flatness error(mm) | ≤0.1 | |
| Viewing angle(°) | 160/160(Horizontal/Vertical) | |
| Brightness(cd/㎡) | 600 | |
| Color temperature(K) | 3200~9300 (Adjustable) | |
| Contrast | 5000:01:00 | |
| Repetition frequency(Hz) | 50/60 | |
| Refresh frequency(Hz) | ≥2500 | |
| Gray scale(bit) | 16 | |
| Ave. power(W/㎡) | 240 | |
| Max power(W/㎡) | 1000 | |
| Maintenance | Rear/front | |
| Brightness/color correction | Yes | |
| Driving mode | 1/26 | |
| Power requirements | AC90~264V, 47~63Hz | |
| Signal Transmission Distance | CAT cable:<100m;Single mode fiber:<10km | |
| Working temp./humidity | -10~40℃/10%~80%RH | |
| Storing temp./humidity | -20~60℃/10%~85%RH | |
| Installation type | Fix | |
| Life time(hrs) | 50,000 | |
| Certificate | CCC/TUV-CE/ETL, etc. | |
| Notes: Specifications are for reference only. Please contact our salesperson for details. All rights are reserved to Led World. | ||

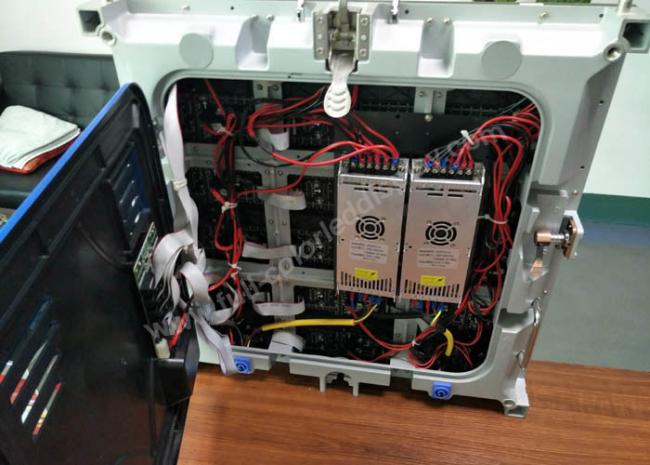

Product detail:
FQA:
Q1:Viewing Angle vs. Brightness ?
A1:Viewing Angle is measured in degrees. The wider the angle, the wider the area is that a viewer can read the sign ;
Q2:How could I know to control LED display?
A2:Fristly ,if we sell screen for you,control system was be set up in sdvance by us;or if you buy different spare parts (like module,control card,power supply ) from us,we also can set up control system in advance ,and we can recommend right control card for you .
Second,we can help you set up led screen by teamviewer or send RCG file to you if you can't finish set up by yourself in your there;
Q3:Text vs. Graphics ?
A3:If you are looking for a simple, easy-to-program, text-only sign, there are plenty of scrolling monochrome and full color models to choose from. If you want full motion graphic animations in addition to scrolling text, then you have to have some method to create the animated content for your display;
Q4:What's the difference between DIP(1R1G1B) and sSMD(One LED, 3 in 1) ?
A4:SMD(One LED, 3 in 1) LED Display, one pixel has one LED lamp, 3 led chips in one LED Lamp?Traditional DIP( 1R1G1B) use 3 LED Lamp in one pixel.
SMD(One LED), reduced the LED on the screens,it reduced grainy of the screen, and improve the
Uniform of the screen, this will make the screen have a more wide viewing angle and smooth image.
With the technology advanced and SMD brightness improved, SMD is more and more used outdoor;
