1/30 S P2 Black body Hd Led Screen , Commercial Led Display 1500 nits brightness
1/30 S P2 Black body SMD1010 indoor HD LED display wall with 1500 nits brightness
P2 HD LED display wall features:
- Small pitch LED display screen, the picture is very clear, high contrast and grayscale;
- Modular 16: 9 design, point to point can achieve 720P / 1080P / 2160P / 3840P, LED screen easier to achieve 4: 3 and 16: 9 ；
- Cabinets can be arranged randomly, saving installation costs;
- Low voltage power supply, can effectively extend the LED display life;
- Using fanless design ;
Qucik detail:
- Pixel pitch:P2 mm ;
- Module resolution:80 dots x 80 dots;
- Driving Mode: 1/30 scan ;
- Mozdule size:160x160 mm ;
- Refresh rate:>1920 Hz ;
- Cabinet size:480x480 mm
P2 HD LED display wall parameter:
| Indoor P2.0 Full Color LED Display Main Parameters | |||
| Item | Visual Characteristics | Unit | Value |
| Module | Pixel Pitch | mm | 2 |
| Module size | mm | 160x160mm | |
| Module resolution | dots | 80 x 80 | |
| Pixel Density | Dots/sq.m | 250000 | |
| Pixel Configuration | Black body SMD1010 | ||
| Cabinet | Cabinet Resolution | dots | 240×240 |
| Cabinet Size(W×H×D) | mm | 480×480 | |
| Cabinet Material | Die-casting Aluminum | ||
| Cabinet Weight | Kg | 6 | |
| Electricity parameter | Refresh Rate | Hz | ≥1920 |
| View Angle(H/V) | ° | 150/120 | |
| Brightness | nits | ≥1500 | |
| Gray Scale | Bit | 16 | |
| IP Rating | 31 | ||
| Power Consumption(Max/Avg) | W/sq.m | 1200/500 | |
| Input Voltage(AC) | V | 110~240 | |
| Environment | |||
| Operation Temperature | ºC | -20~+50 | |
| Operating Humidity | 10%~90% | ||
| Driving Mode | 1/30 Scan | ||
| Control Distance | Cat 5E <100m,Single mode fiber<10Km | ||
| Notes: Specifications are for reference only. Please contact our salesperson for details. All rights are reserved to Led World. | |||
Why choose us:
- Full automatic production to control our high quality, best color consistency and get better performance.;
- Perfect lighting Mixture effect :Because of the 3 in 1 special design,the distance is very close between the 3pcs led chips,suitable for viewing at very close distance;
- On time delivery + patient after-sales service;
- Provide promotion activity;
Our company:
Our company leads the way in LED display manufacturing & technology.
The workshop covering an area of 9000 square meters, No. of production lines are above 10.
Main markets in North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe, has set up stable sales agents in the corresponding areas.
Through the efforts and collaboration of all employees of the company, the products are exported to Europe, North America, Australia, the Middle East, and the establishment of a stable distribution agents in the respective regions.

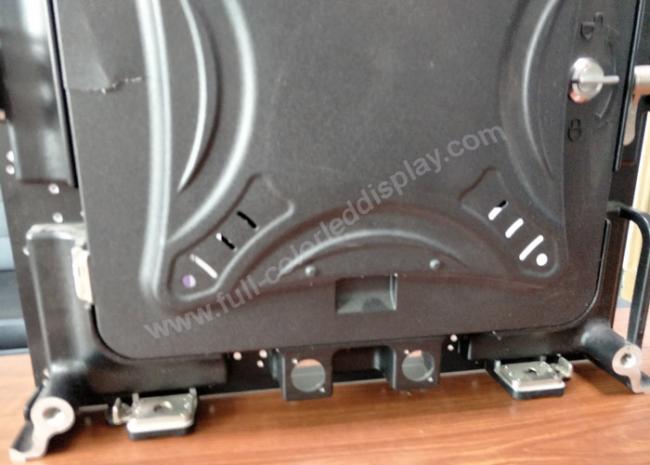

Product detail:
