P6 Full Hd Indoor Advertising Led Display Panel Rental With No Fans Design

Price Negotiable
Price: negotiable
MOQ: 1 square meter
Delivery Time: 10~20 days after receiving the deposit
Brand: Shenzhen LED World
Product Description

P6 Full Hd Indoor Advertising Led Display Panel Rental With No Fans Design



P6 indoor Full Color LED display panel features:

  1. LED Screen without gaps and bright lines, to achieve a seamless stitching;
  2. The fast lock structure allows for portable installation and removal ;
  3. The horizontal viewing angle is 160 ° ;
  4. Signal with red light indicator in the cabinet, to monitor the signal transmission status ;
  5. The cabinet is made of die-cast aluminum material, with good strength and light weight ;

P6 indoor Full Color LED display panel parameters:

Item Technical indexes Specification
Module Pixel pitch 6mm
Module size 192mm X 192mm
Module resolution 32 X 32
Module density 27777dots/m2
Red wavelength 625±2nm
Green wavelength 525±2nm
Blue wavelength 470±2nm
Cabinet Cabinet Size(mm) 576x576x80
Cabinet Resolution 96 dots x 96 dots
Cabinet material Die-casting
Electricity parameter Pixel configuration 1R1G1B
Colors 16777216
Best viewing distance ≥6m
Horizontal viewing angle 140°
Vertical viewing angle 120°
Maximum power consumption 1200W/sqm
Average power consumption 600W/m 2
Brightness 2200-3500cd /m 2
Gray scale 16bits per color
Driving method 1/8 or 1/16 scanning
Frame frequency 60Hz
Refresh frequency 350 Hz
Working voltage AC220V/110V±10%
IP grade IP20-45
Working temperature -20°C~80°C
MTBF More than 10,000 hours
Life span More than 100,000hours
Notes: Specifications are for reference only. Please contact our salesperson for details. All rights are reserved to Led World.



FQA:

Q1:Indoor vs outdoor?
A1:Indoor signs are bright enough to be seen inside a building under commercial lighting, but not bright enough to be seen in direct sunlight. Outdoor signs can be seen in full-on, mid-day sunlight, and are weatherproof to withstand the harsh environmental conditions;


Q2:How do you ship the goods and how long does it take to arrive?

A2:We mostly accept FOB train term, but we can help you order and arrange shipping agent. It usually take 20 30 day on sea. a few days for customer clearance;



Q3:What is virtual pixel, real pixel?

A3:Real and virtual-pixel screen is the corresponding.
Simply, real pixel is each LED of three red-green-blue LED which constitute a screen display is only involved in the use of an imaging pixel, in order to obtain sufficient brightness.
Virtual screen is to usesoftware algorithms to control the LED of each color to participate in thefinal number of adjacent pixels of the image, making the lamp with less LED to achieve greater resolution, it can increase about four times resolution.
As we all know, the largest cost is LED chip for LED display, one of our target is that we can save the cost but do not less the brightness. The virtual technology is a development direction. The virtual technology is not a simple tube to participate inimaging, it impact much for the brightness, gray. It requires the control system coordinate with the driver chips, to use the software algorithms and driver chips to combine response time, to save the LED cost but do not less the brightness;



Q4:Can you assign engineer to our site to guide the installation if we require?

A4:Yes. We have qualified and experienced engineers who are ready to service for you ;





Our service:

  1. On-line remote service is available;
  2. Service period: In the Maintenance period of the LED screen body, free of all maintenance charges; After Maintenance period, only charge the material costs fees free of manual work fees;
  3. Customized dsign is avaiable ,OEM & ODM are welcomed ;
  4. LEDWORLD provides 1% spare parts freely, including LED module, power supply, fan, receiving card, LED lamps and other related parts;
  5. Warranty: 2 years;

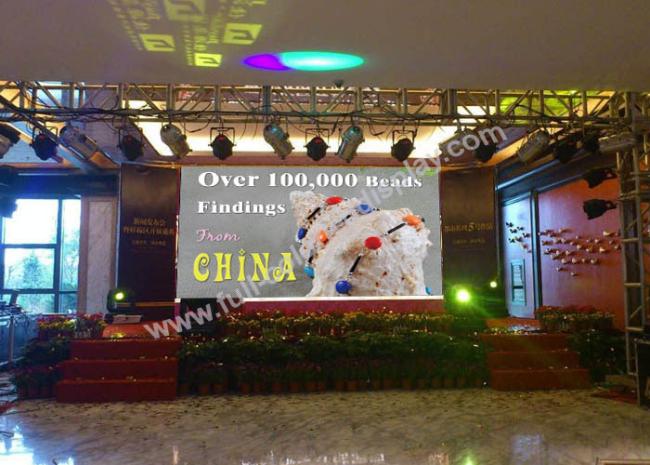

Project case:
