8Mm Ultra Thin Smd3528 Indoor Fixed Led Display With Synchronization System
8Mm Ultra Thin Smd3528 Indoor Fixed Led Display With Synchronization System
P8 Indoor Fixed LED Display description:
- Heritage SMD3528 lamp beads advantages, wide viewing angle of 120 degrees, high contrast, high flatness;
- Support a variety of user interface and signal input ;
- Computer real-time control or IP remote cluster control ;
- Support point-to-point calibration technology ;
- Ideal load capacity, able to keep the power supply and lamp beads longer life .
P8 Indoor Fixed LED Display parameter:
| Item | Pixel pitch | 8mm |
| Module | Pixel Configuration | 1R1G1B |
| LED component | SMD3528 | |
| Size of module | 256mm x 128mm | |
| Resolution of module | 16x8 | |
| Cabinet | Size of cabinet | 1024mmx 768mm x150mm |
| Resolution of cabinet | 128x96dots | |
| Material of Cabinet | Iron with back doors | |
| Weight of Cabinet | <40KGS | |
| Electricity parameter | Brightness | >1800cd/sq.m |
| Density | 15625dots/sq.m | |
| Best viewing angle | 120 /120 | |
| Best viewing distance | 8-100M | |
| Maximum power consumption | <800W/sq.m | |
| Average power consumption | <280W/sq.m | |
| Driving method | 1/8 scan | |
| Control method | Synchronization | |
| Gray scale | 65536 | |
| Colors | 256*256*256 | |
| Color temperature | 3200-9300k | |
| Uniformity | 97% | |
| Working voltage | AC220V/110V±10% | |
| Working temperature | -20ºC~+50ºC±10% | |
| Working humidity | 10% ~ 90% | |
| MTBF | 10,000 hours | |
| Frame frequence | 50/60Hz | |
| Refresh frequence | >1500Hz | |
| IP grade | IP31 | |
| Life Span | 100,000 hours | |
| Data transafer method | RJ45 | |
| Pratical standard | CCC TUV-CE ETL etc. | |
| Effectivce Communication | Unshielded twisted pair net line transmission distance:100M, max transmission distance:130M; Multi-mode optic fiber: 500M; | |
| Distance(without relay) | Single-mode optic fiber: 10KM | |
| Accepting signal with video processor | PAL/NTSC/SECAM,S-Video;VGA;RGB;HDMI,DVI,Composite Video;SDI,DP etc. | |
| Systems operating platform | WINDOWS(WINXP,WIN7/8/10), and interfaces for secondary development | |
| Notes: Specifications are for reference only. Please contact our salesperson for details. All rights are reserved to Led World. | ||
Our company:
Shenzhen LED World co.,ltd was founded in 2007, which is a national high-tech enterprises specialized in LED display products R&D, production, sale and engineering services.
Shenzhen LED World co.,ltd is a professional LED media/video display manufacturer.
Main markets in North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe, has set up stable sales agents in the corresponding areas.
OEM, ODM, Own Brand(LED WORLD).
Why choose us:
- 24/7 after-sale service
- On time delivery + patient after-sales service;
- Manufacturer: over 9 years;
- Professional manufacturer
- Our product are low consumption;

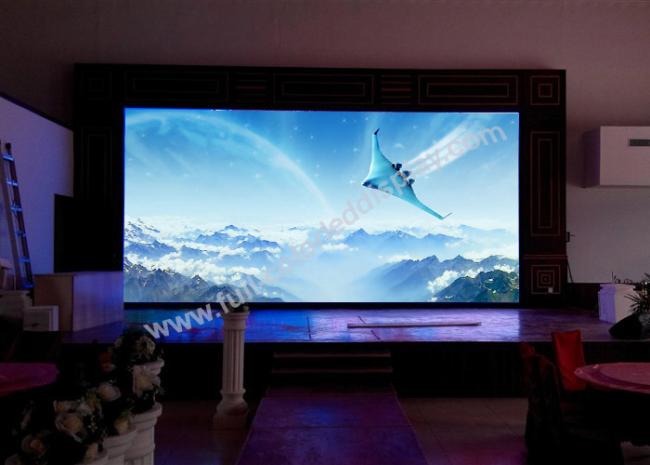

Project case:
