Advertising Curved Outdoor Rental LED Display P3.9 High Definition Sign With 5000 Nits
Price:
negotiable
MOQ:
1 square meter
Delivery Time:
12~20 working days after deposit received
Brand:
Shenzhen LED World
Product Description
Advertising Curved Outdoor Rental LED Display P3.9 High Definition Sign With 5000 Nits
Outdoor advertising curved led display P3.9 features:
- Both for straight and flexible shape;
- Light weight, the weight of the cabinetis less than 8.9 kg; easy installation;
- Humanized operating interface with breakdown indicator lights,easy to maintain;
- With independent and innovative waterproof design of the module, it can be used for outdoor rental application,all weather available;
- High grade protection with tempered glass;
- Centralized cluster network and remote control system to monitor and manage the status of LED Screen;
- Kinglight LED lamp and Macroblock 5124 made,Other available LED lamp option: Nationstar, San’an. Available;
Outdoor advertising curved led display P3.9 application:
P3.91 led display widly used in Outdoor advertising, shopping mall,stores,digital billboards, banks,schools, telecommunications,advertising companies Sports halls, fields, playgrounds,school church,
Outdoor advertising curved led display P3.9 parameter:
Module parameter:
| No. | Parameter | Value | |||
| led type | brightness | Wave Length | H/V Visual angle | ||
| 1 | Red LED | SMD1921 | 600-800 MCD | 620-625nm | 140°/120° |
| 2 | Green LED | SMD1921 | 1800-2000 MCD | 520-525nm | 140°/120° |
| 3 | Blue LED | SMD1921 | 400- 600 MCD | 470-475nm | 140°/120° |
| 4 | Pixel pitch | 3.91 mm | |||
| 5 | Brightness | 5000 cd/M2 | |||
| 6 | Module size | 250mm x 250mm | |||
| 7 | Drive model | 1/16 scan | |||
| 8 | Pixel Configuration | 1R1G1B | |||
| 9 | Module Resolution | 64 dots x64 dots | |||
| 10 | Module pixel | 4096 pixel | |||
| 11 | Power | DC 5 v | |||
| 12 | Number of colors | 16bit | |||
| 13 | Discrete control point | ≤0.1‰ | |||
| 14 | Control method | Synchronize with the video source | |||
| 15 | Working temperature | -20°C~+50 °C | |||
| 16 | Working environment humidity | 10%~90% | |||
| 17 | Transfer board | hub75 | |||
Cabinet parameter:
| Cabinet Size: | 500mm x 500 mm |
| Cabinet resolution | 128x128 dots |
| Material of cabinet | die-casting |
Other detail:
| Place of Origin: | Shenzhen,Guangdong, China (Mainland) |
| Brand Name: | Shenzhen LED World |
| Model Number: | P3.91mm Black SMD 2121 |
| Tube Chip Color: | Full Color |
| Display Function: | Video |
| LED Lamp Brand : | Nationstar |
| Power Supply: | G-energy Ultra thin |
| IC Driver: | MBI 5141 |
| Pixel Density | 65536 dots/ SQ.M |
| Viewing angle: | 140H,120V |
| certificates: | CE,RoHs,CCC,ISO9001 |
Outdoor advertising curved led display P3.9 description:
- No need for installation: since each cabinet is just one screen. When you get it, there is no need for installation and so you can use it immediately;
- Low power consumption, low noise created, low transportation costs, and low installation costs;

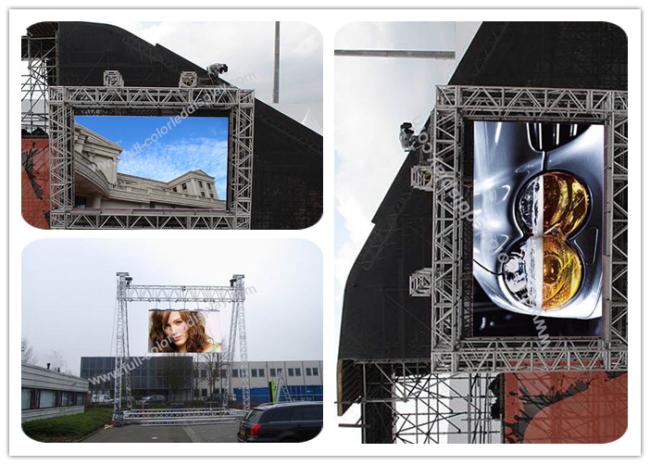

project case:
