P6.25 IP65 Outdoor Led Panel Rental Circuit Board With High Brightness
Price:
negotiable
MOQ:
1 square meter
Delivery Time:
12~20 working days after deposit received
Brand:
Shenzhen LED World
Product Description
P6.25 SMD3535 Outdoor Rental LED Display circuit board with high brightness
P6.25 Outdoor Rental LED Display circuit board feature:
- Curved new design P6.25 rental led display outdoor with new innovation,36 pcs cabinet to be A circuit;
- High refresh rate, HD video with vivid pictures;
- It has big viewing angle , can reach 140 degree horizontally and vertically ;
- The ultra-light weight cabinet made is aluminum-magnesium alloy which gives it extra strength;
- Easy maintenance,the single cabinet can be individually removed from the body of the screen for replacement/repair;
- Rental die-cast aluminum forming,with the advantages of product strength,precision and high flatness of the entire screen;
- Excellent waterproof standard, IP65 front and IP54 at the rear side;
- Flight case package,easier to take the LED display to different places according to your request;
P6.25 Outdoor Rental LED Display circuit board specification:
- Pixel Pitch:6.25mm, Pixel Configuration:1R1G1B SMD 3-in-1, Pixel Density:25,600 dots/sqm, Module Size:250x250mm,Pixels/Module40x40;
- Two cabinet size available:500x500mm / 500x1000mm ;
- LED Encapsulation Pixel Configuration:SMD3535 1R1G1B (first selection LEDs, to ensure color uniformity);
- Working Voltage:AC110V/220V ±15% ;
- LED display a white screen test playing time is not less than 24 hours;
P6.25 Outdoor Rental LED Display circuit board parameter:
P6.25 led display lamps:
| No. | Parameter | Value | |||
| led type | brightness | Wave Length | H/V Visual angle | ||
| 1 | Red LED | SMD3535 | 600-800 MCD | 620-625nm | 140°/120° |
| 2 | Green LED | SMD3535 | 1800-2000 MCD | 520-525nm | 140°/120° |
| 3 | Blue LED | SMD3535 | 400- 600 MCD | 470-475nm | 140°/120° |
P6.25 outdoor led display module:
| Pitch | Outdoor |
| P6.25mm | |
| Encapsulation | SMD3535 |
| Pixel Configuration | 1R1G1B |
| Driver Method | 1/10 |
| Module Size(H*W/mm) | 250*250/ |
| 250*500 | |
| Module Resolution(H*W/dots) | 40*40/ |
| 40*80 |
P6.25 outdoor led display cabinet:
| Cabinets Size(W*H*T/mm) | 500*500/ |
| 1000*500 | |
| Unit Cabinet Weight(kg) | 7.8kg/12kg |
| Pixel Density(dots/M2) | 25600 |
| Cabinets material | Die-cast aluminum |
Electricity parameter:
| Average Power Consumption | 260 |
| (Watt/M2) | |
| Max. Power Consumption | 750 |
| (Watt/M2) | |
| Brightness(CD/M2) | ≥5500 |
| Driver IC | MBI5124 |
| IP Rating | IP65(front) /IP54 (back) |
| Installation Method | Fixed / Hung up |
| View Angle | 1600(H)/ 1400(V) |
| Refresh Rate | ≥1920Hz |
| Frame Frequency | ≥60Hz |
| Voltage Input | AC110V/220V±15% 40~65HZ |
| Operating Temperature | -20ºC~60ºC ,storage for :-30oC~+90oC |
| Maintenance | Rear |
| System Working Environment Humidity | 10%-90%RH |
| Life Span(Hours) | ≥55,000Hours |
| Color Temperature | 5600K±500 |
| Power Supply | G-energy with CE/UL proof |
| Control system support | Linsn/ Novastar |
| Compliant standard | CE, CCC, UL |
After sale service:
- We promisea life time follow-up service for allthe equipment supply by ourcompany;
- We provide customer service through Skype, phone or email, provide video or drawing to solve customer's problem;
- We provide remote control service through internet to achieve real time service, which will short the customer problem solving;

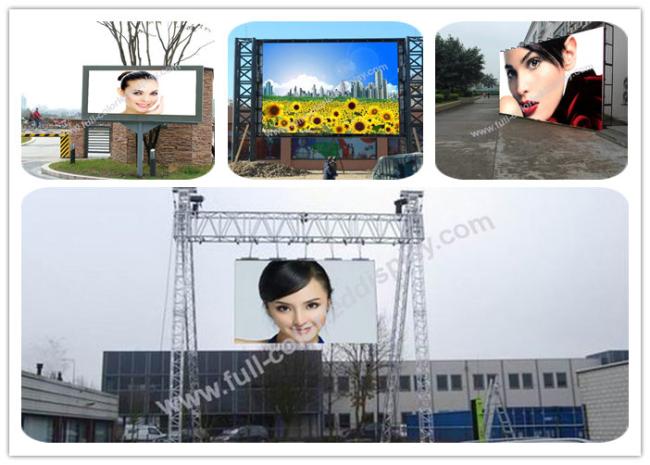

Project case:
