P5.95 curved Outdoor Rental LED Display wall , flexible led display board for background

Price Negotiable
Price: negotiable
MOQ: 1 square meter
Delivery Time: 12~20 working days after deposit received
Brand: Shenzhen LED World
Product Description

P5.95 Outdoor Rental curved led wall , flexible led display board for background



P5.95 Outdoor Rental curved led wall feature:

  1. Vivid video presence, good image delivery;
  2. ±15°angle adjustable, creative design to satisfy your needs;
  3. High Contrast ratio: 4000:1,Which is a very high level to ensure a vivid image of our LED display screen system;
  4. Screen cabinet is made of die-casting aluminum material, The effect of heat dissipation is remarkable;
  5. The module is different from the ordinary one,which is without flat cable on the module,just need the pinkboard to connect;
  6. Lightweight:Convenient in transporting and installing saving labor cost, suitable for flow shows;





P5.95 Outdoor Rental curved led wall  description:

  1. With unique water-proof design, the cabinet is qualified for IP65;
  2. no need for installation: since each cabinet is just one screen. When you get it, there is no need for installation and so you can use it immediately;
  3. Unique Cabinet Design - Easy to Install the cabinet of P5.95 LED Screen features unique rugged design which makes it easy to carry and install. The lightweight cabinet is easy to carry and saves transportation cost. It's damage free and lasts for a lifetime;



P5.95 Outdoor Rental curved led wall parameter:

Lamps and modules parameter:

No. Parameter Value
led type brightness Wave Length H/V Visual angle
1 Red LED SMD3535 600-800 MCD 620-625nm 140°/120°
2 Green LED SMD3535 1800-2000 MCD 520-525nm 140°/120°
3 Blue LED SMD3535 400- 600 MCD 470-475nm 140°/120°
4 Pixel pitch 5.95 mm
5 Module size 250mm x 250mm
6 Drive model 1/8 scan
7 Pixel Configuration 1R1G1B
8 Module Resolution 42 dots x42 dots
9 Module pixel 1764 pixel
10 Power DC 5 v



cabinet parameter:

Panel size (mm) 500×500
Panel resolution 84X84
Cabinet weight 8kgs



Electricity parameter:

Powerconsumption 700/300
Max./Avg. (W/)
View angle(H/V) 160°/140°
Refresh rate(Hz) ≥2000
Grey scale 16Bits
Best view distance 3-50M
Protection level IP65
Input Power (V) 110~240
WorkingTemperature -20ºC~+50ºC
Working humidity 10% ~90%
Control Caste ≤100M, Fiber optical≤10000M





Why choose us:

  1. Fast Delivery:Once we promise the delivery date,we will try our best to fulfill it.Special procedures such as emergency
  2. inventory will be used to maintain your uninterrupted supply of the products;
  3. We have factory and can offer you direct highest cost-effective price;
  4. Continues Quality: With more than 10 years experiencein led display producing,equipments are up date dregularly;
  5. We can provide customers one year free warranty, and support renewals extended;
  6. Provide unique and professional solutions based on customer's requirement;

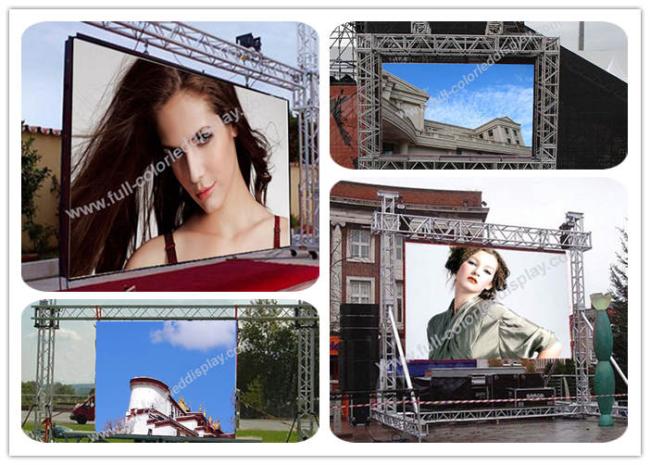

Product project:
