High Precision Advertising P4 Indoor Rental LED Display Video For Fashion Show
High Precision Advertising P4 Indoor Rental LED Display Video For Fashion Show
P4 Indoor Rental led video display features:
- Display HD image without distortion;
- High quality LED and IC components, using San’an chip and Macro block IC;
- Good Quality For Every LED Display Product;
- Low power consumption, environmentally friendly;
- Light weight:The aluminum die-casting technology makes the single cabinet as light as 8.2KG, which is convenient for assembly and disassembly;
- Special designs,Quick fast installation / dismantle;
- Good SMD with good durability and low-attenuation;
- The better quality/price ratio in LED Displays field;
- High Refresh Rate reach to 3000Hz or more;
Advantage:
- Remote controlling and adjusting are available;
- Goods be examined before delivery, Professional QC team;
- Easy to maintain:No need to disassemble the whole screen for maintenance.Each component can be detached individually for that purpose;
- Optional hanging style,easy to dismounting and front maintain;
- Quality advantage: From material to finished product, from design to produce, we control all steps, that's the guarantee of the quality and reliability;
- Perfect Display Effect:High brightness and clearly led display effect with easy use control system which allow you easy become enviable led display experts;
- Service advantage: with professional service team for 24 hours service!
P4 Indoor Rental led video display parameters:
Led lamp parameter:
| No. | Parameter | Value | |||
| led type | brightness | Wave Length | H/V Visual angle | ||
| 1 | Red LED | SMD2121 | 120-140 MCD | 620-625nm | 140°/120° |
| 2 | Green LED | SMD2121 | 360-435 MCD | 520-525nm | 140°/120° |
| 3 | Blue LED | SMD2121 | 80- 100 MCD | 470-475nm | 140°/120° |
LED module parameter:
| Module size | 256mm*128mm |
| Moudle resolution | 64 dots * 32 dots |
| Pixel pitch | 4mm |
| Pixels Density | 62500 /m2 |
| Pixel configuration | 1R1G1B |
| Package mode | SMD2121/SMD0805 |
LED cabinet parameter:
| Cabinet size | 512mm*512mm |
| Power supply | 5V/40A*2 pcs |
| Pixel per cabinet | 128*128 |
LED Electricity parameter
| Scan mode | 1/16scan |
| Port type | HUB75-A |
| Brightness | ≥1200cd/m2 |
| Best viewing distance | 4M ~ 20M |
| Best viewing distance | 160°(W) 120°(H) |
| Temperature | -40 degree~ +70 degree |
| Relative humidity | 10%-95% |
| Screen thickness | 85mm |
| Working voltage | AC220V/110V±10% |
| Average Power | 185W/ m2 |
| Max.Power consumption | ≤550W/ m2 |
| Refresh frequency | ≥2200HZ |
| Grey scale/color | 256levels of each color(RGB)/16.7M colors |
| MTBF | ≥9000HZ |
FQA:
Q1: What's the pixel pitch for Indoor LED Display Screen?
A1: Indoor (P2mm /P2.5/P3/P3.91/ P4mm/P4.81/P5mm/P5.95/P6mm/P6.25/P10mm)
Q2: Where is it used for?
A2: Indoor Outdoor rental use. Widely used for backdrop of staging event, rental business, liveshow, concert, etc;
Q3: What's the function of your led screen?
A3: It supports videos, flash, WAV/MIDI, PPT, images and so on;

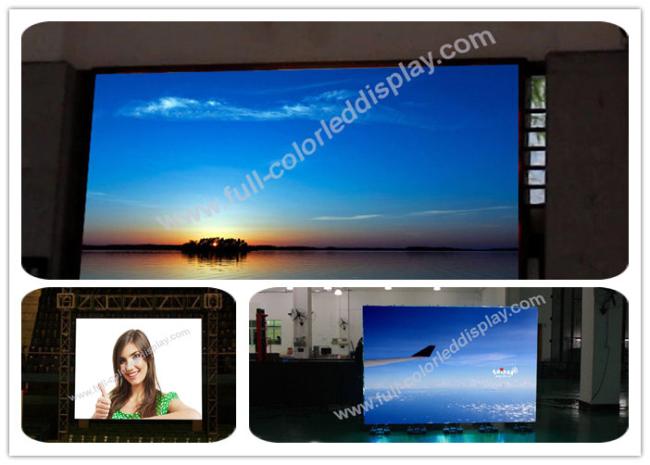

P4 Indoor Rental led video display Project case:
