P8 High Luminance Outdoor Rental LED Display panel with IP65 waterproof for star hotel
P8 High Luminance Outdoor Rental led panel with IP65 waterproof for star hotel
P8 Outdoor Rental led panel feature:
- Kinglight LED lamp and Macroblock 5124 made;
- High brightness Waterproof;
- Super slim and hanging design make it easy and fast for assembling and disassembling;
- Auto-adjustment of brightness accordingto external environment,thus no light pollution;
- Wide viewing angle: The horizontal and vertical viewing angles are so wide that it is suitable for wide horizon;
- IP65 waterproof, front and rear side;
- Ultra-light: size of the cabinet is 480mm*480mm, the weight only4-6kg per set;
P8 Outdoor Rental led panel advantage:
- High Contrast ratio: 4000:1,This is a very high level to ensure a vivid image of our LED display screen system;
- Easy installation and dismantling, without any tools, it takes only 6 seconds to assemble one cabinet, any cabinet within the screen is free of assembly and dismantling;
- Wooden case or flight case,you are the both;
- Die cast aluminum structure, great durability;
- Large Viewing Angle: Broad viewing angle up to 120°, bring a larger visible area;
P8 Outdoor Rental led panel Parameter:
Modules:
| No. | Parameter | Value | |||
| led type | brightness | Wave Length | H/V Visual angle | ||
| 1 | Red LED | SMD3535 | 600-800 MCD | 620-625nm | 140°/120° |
| 2 | Green LED | SMD3535 | 1800-2000 MCD | 520-525nm | 140°/120° |
| 3 | Blue LED | SMD3535 | 400- 600 MCD | 470-475nm | 140°/120° |
| 4 | Pixel Pitch (mm) | 8mm | |||
| 5 | Pixel density(pix/m2) | 15625 | |||
| 6 | LED Type | 3535 | |||
| 7 | Viewing Angle | X,Y120° | |||
| 8 | Module Size (mm) | 320×160×16 | |||
| 9 | Brightness(nits) | ≥5000 | |||
| 10 | Drive Method | 1/5 | |||
Cabinets:
| Cabinet Size(mm) | 640×640×80 |
| Cabinet Material | Die casting aluminum |
| Cabinet weight(kg) | 17 |
Electricity:
| Color Depth | 65536 |
| Refresh Rate(Hz) | 1920 |
| Voltage | 110-240V |
| Average.power(W/m2) | 230 |
| Max.power (W/m2) | 700 |
| IP Grade | IP65/IP43 |
| Operating temperature/humidity | temperature:-20℃～ 50℃ humidity:10～90%RH |
| Storage temperature/ humidity | temperature:-40℃～ 60℃ humidity:10～90%RH |
| Lifetime(h) | ≥50000 |
| Notes: Specifications are for reference only. Please contact our salesperson for details. All rights are reserved to Led World. | |
Why choose us:
- With more than 10 years experience in led display producing,equipments are update dregularly;
- Fast Delivery,Once we promise the delivery date,we will try our best to fulfill it.Special procedures such as emergency
- inventory will be used to maintain your uninterrupted supply of the products;
FQA:
Q1: What's the pixel pitch for Indoor LED Display Screen ?
A1: Outdoor (6mm / 8mm/ 10mm)
Q2: How about the size of project?
A2: Please offer the size with "width by height" of project. We will offer the suitable solution for your project size,I will appreciate it if any drawing files about installation offered;
Q3:Could you alow a trial order?
A3:Yes.We are alowing to a trial order. This would enable you to see the high quality of our product and give you the opportunity to test it’s superiority;
Q4: What's the controlling system?
A4: Our standard controlling system for this model is Novastar.Also support other controlling system, like Linsn, etc;

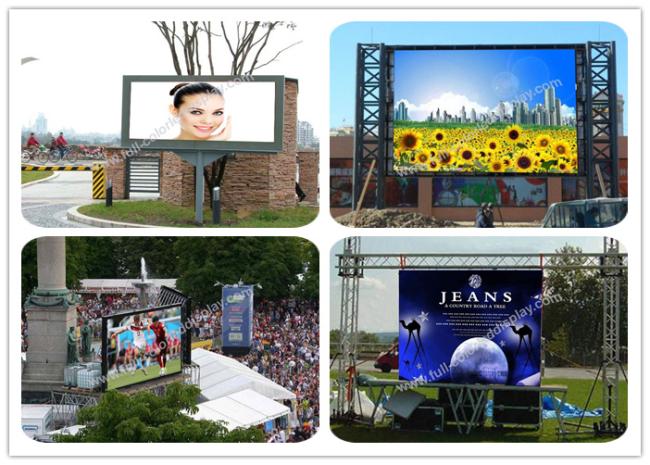

P8 Outdoor Rental led panel Project case:
