High Grayscale P0.9375 HD LED Display Video Wall 16/9 Scale 480x270mm Cabinet

Price Negotiable

Price: Negotiation

MOQ: 1 square meter

Delivery Time: 15-20 working days after received your payment

Brand: Shenzhen LED World

Product Description

P0.9375 HD LED video wall 16:9 scale display screen with 480x270 mm cabinet

P0.9375 HD LED video wall description:

Die-cast cabinet has high flatness, good heat dissipation performance, and seamless splicing;
High refresh rate, high grayscale;
All blacklight, high contrast;
Fanless, silent;
Seamless splicing, fast installation;
Standardized cabinet size 480X270mm, perfect 16:9 random stitching.

P0.9375 HD LED video wall parameters:

Parameter		Value
Basic parameters	Pixel Configuration	1R1G1B
	Pixel Configuration	1R1G1B
	Pixel Pitch (mm)	0.9375
	Pixel matrix per panel (dots)	512×288
	Pixel density(pixels/sq.m.)	1137777/m2
	Module resolution (LxW)/(dots)	256(W)*144(H)
	Module Dimensions (LxWxH)/(mm)	240mm*135mm
	Cabinet Dimensions (LxWxH)/(mm)	480mm*270mm
	Panel material	die-casting
Optical parameter	Single lighting chromaticity correction	Yes
	Color temperature	3200K—9300K adjustable
	White balance	≥600
	Horizontal viewing angle	140°
	Vertical viewing angle	120°
	Viewing distance	≥3meter
	Brightness uniformity	≥97%
	Contrast	≥3000:1
Processing performance	Number of signal processing bits	16 bit * 3
	Gray level	65536
	Control distance	Network cable: 100 meters, fiber: 10 kilometers
	Drive mode	High gray scale constant current source driver IC
	Frame frequency	≥60HZ
	Refresh rate	≥1920HZ
	control method	Synchronize
	Brightness adjustment range	0 to 100 stepless adjustment
Using parameters	Continuous working time	≥72 hours
	Life time	50,000 hours
	IP grade	IP20
	Storage Temperature(ºC)	-20° ~+ 60°
	Operating Temperature(ºC)	-20° ~+ 50°
	Operating humidity(ºC)	10 %- 80% RH no condensation
Electrical parameter	Working voltage	DC:4.2-5V
	Power supply requirements	AC:220×(1±10%)V,50×(1±5%)Hz
	Maximum power consumption	500 W/㎡
	Average power consumption	220 W/㎡
Notes: Specifications are for reference only. Please contact our salesperson for details. All rights are reserved to Led World.

More information of P0.9375 led video wall:

Lamps:
high-end chip packages from well-known manufacturers around the world, life and display quality are fully guaranteed. SMD full color 0808 series: all black body;
ICS:
It adopts high refresh rate and high gray scale constant current drive ICs from world-renowned top manufacturers, and has excellent driving performance, stable and reliable;
Connector:
Using high-quality 3U gold-plated connectors, there is no cable connection in the box, which is stable and reliable;
Drive and control:
More integration, more stability, better display, refresh more High, dedicated 14BIT high grayscale, high refresh drive constant current IC, special erasure circuit, protect LED, prevent surge leakage; support system multi-channel redundancy backup, module point-by-point color correction, power double backup.

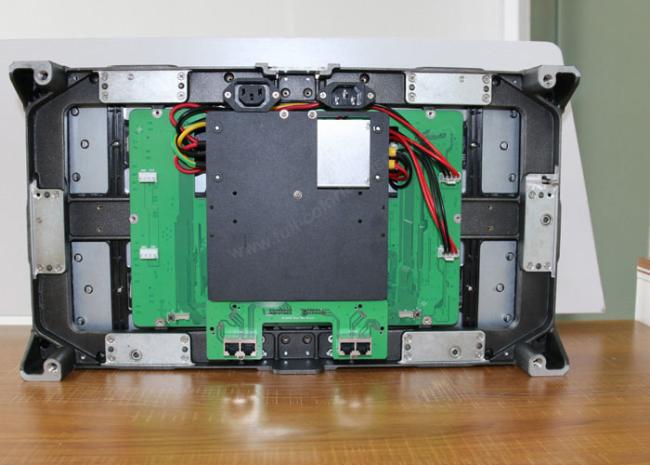

P0.9375 HD LED video wall Product detail:
