P3 Indoor Fixed LED Display 111111 Dots / M2 Pixel Density Easy Installation
Easy Installation P3 indoor led video wall panel display for the shopping mall
P3 indoor led video wall panel display description :
- Approved by RoHS certification, Lead-free, environmental design;
- 16-bit color,16384 gray scales, refresh rate over 1920HZ the video or images on the LED screen are very vivid and fresh. People who see it will get shocked by this amazing viewing experience;
- Dot by dot calibration: With pioneering calibration system, LED display keeps stunning image even after years' using;
- Quick locking methods, no tools installation;
- High contrast rate up to 5000:1by using black LED;
- Easy: Modular design, easy assembly, and maintenance;
P3 indoor led video wall panel display parameter:
| Module | Pixel Pitch | P3mm |
| Encapsulation | SMD2121 black | |
| Pixel Configuration | 1R1G1B | |
| Driver Method | Scan1/16 | |
| Color Match | R:G:B=3:6:1 | |
| Module Size(H*W) | 96*192mm | |
| Module Resolution(H*W) | 32*64dots | |
| Cabinet | Cabinets Size(H*W) | 576*768mm |
| Pixel Density | 111111dots/M2 | |
| Cabinet Weight | 15kg | |
| Cabinet Material | Iron | |
| Maintenance | Front service | |
| Electricity parameter | Average Power Consumption | 540W/M2 |
| Max. Consumption | 1200W/M2 | |
| Brightness | ≥1300CD/M2 | |
| View Angle | H 120° /V 120° | |
| Refresh Rate | ≥1920Hz | |
| Frame Frequency | ≥60Hz | |
| Color Depth | 14bit | |
| Voltage Input | AC110V/220V±15% 40~65HZ | |
| IP Rating | IP31(front/back) | |
| Operating Temperature | -20ºC~60ºC , storage for :-30ºC~+90ºC | |
| System Working Environment Humidity | 10%-90%RH | |
| Life Span(Hours) | ≥55,000Hours | |
| Best View Distance | 3-105meter | |
| Color Temperature | 5600K±500 | |
| Power Supply | G-energy(CE/UL) | |
| Control Distance | <100meter by Internet Cable(without Relay); Fiber Cable > 500 meters | |
| No-malfunction time(Avg.) | >5000hours | |
| Control system | Linsn/Novastar | |
| Compliant standard | CE, ROHS.ETL,UL.TUV.CCC,EMC | |
| Information Sources | Many kinds of signal access: can input TV signals , DVD signals , DVI, S-VIDEO, RGB, VGA, and so on. | |
| Notes: Specifications are for reference only. Please contact our salesperson for details. All rights are reserved to Led World. | ||
FQA:
Q1: How to help the client choose suitable led video wall?
A1: There are including the needs of displaying content, visible distance, requirements of cabinet resolution, requirements of installation environment, cost control.
Q2: How to get the price list?
A2: Price list Pls send email us with items name;
Q3: Is it OK to print my logo on led Screen product?
A3: Yes. Please inform us formally before our production and confirm the design firstly based on your project.
Q4: What's the pixel pitch for Indoor LED Display Screen?
A4: Indoor (0.9375mm /1.25mm /1.875mm/ 1.904mm/2mm/2.5mm/ 3mm/ 4 mm/ 5mm / 6mm)
.
Q5: What about your pre-sale service and post-sale service?
A5: For pre-sale service: We have a professional sales team and a 12 years technical team who are willing to answer your question 24/7. We can offer a whole complete solution for your project!

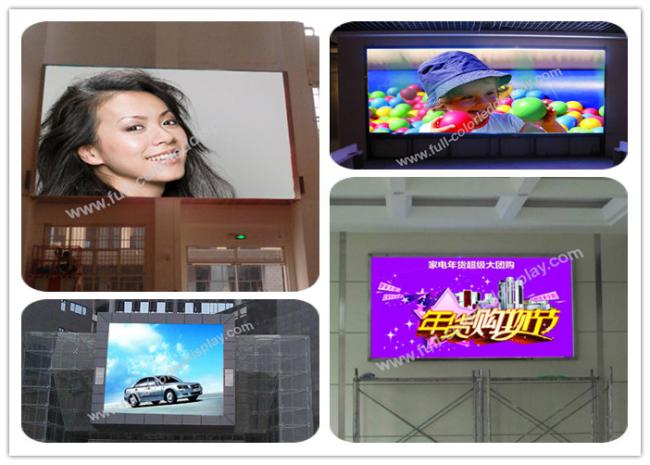

P3 indoor led video wall panel display product detail:
