Super Smooth Outdoor Rental LED Display P6 Stage Background SMD3535 Lamp AC220V
Price:
negotiable
MOQ:
1 square meter
Delivery Time:
12~20 working days after deposit received
Brand:
Shenzhen LED World
Product Description
Super smooth Rental LED display P6 outdoor screen with fast locks and connectors
Rental LED display P6 outdoor screen description:
- Stable: Die casting aluminum material;
- High refresh rate, can up to 3840Hz;
- Slim: Ultra Slim at 90cm thickness;
- Fast: Fast Lockers for quick assembly and dismantling;
- Movable: Flight Case Package for frequent movement from one site to next;
- Fan-free design, energy saving, more stable.
Rental LED display P6 outdoor screen parameter:
| Module | Items | Parameter | |||||
| Product Model | P6 surface mounted Module | ||||||
| Module size | 192mm*192mm | ||||||
| Pixel pitch | 6mm | ||||||
| Pixel density | 27777dots/m2 | ||||||
| Pixel configuration | SMD 3in1 | ||||||
| Module resolution | 32dots(W)*32dots(H) | ||||||
| Module maximum power consumption | 20W | ||||||
| Module Thickness | 2CM | ||||||
| Module Weight | 0.55kg | ||||||
| Driving method | Constant Current Driving | ||||||
| Scanning method | 1/8 scan | ||||||
| Interface | HUB75 | ||||||
| Brightness | ≥5500cd/m2 | ||||||
| Cabinet | Cabinet size | 576mm*576mm | |||||
| Module quantity | 9pcs | ||||||
| Power supply | 5V/40A 5V/60A | ||||||
| Cabinet resolution | 96*96dots | ||||||
| Optimal viewing distance | 5M~50M | ||||||
| Optimal viewing angle | 160°(W) 120°(H) | ||||||
| RHWorking temperature | (Work :-20°C~+60°C) | ||||||
| System operating humility | 10%-95% | ||||||
| Power supplier | Operating Voltage | AC220V±10% | |||||
| Average power consumption | 400W/H | ||||||
| Maximum power consumption | ≤400W/m2 | ||||||
| Electric current | ≤20mA(single LED) | ||||||
| control card | Control Panels | Pentium4 or above P4 or above | |||||
| Operating system | WIN98/2000/NT/XP | ||||||
| Control model | Synchronization with PC | ||||||
| main technical parameters | Driving device | Constant Current Driving | |||||
| Refresh rate | ≥1920HZ | ||||||
| Grey scale | RGB Each 256, can display 16.7M colors) | ||||||
| MTBF | ≥9000hours | ||||||
| Power switch | Automatic Switch | ||||||
| Display Mode | 800*600/1024*768/1280*900 | ||||||
| Notes: Specifications are for reference only. Please contact our salesperson for details. All rights are reserved to Led World. | |||||||
Our service:
1. Guarantee
(1) We guarantee all our displays, modules, parts for two full year. During this time, we will replace or remand our goods for free if there is something wrong with them.
(2) We will provide maintenance for a lifetime and charge for the raw materials only.
2. Technology Training
(1) We provide the technical training for free, which contains the operation training and maintenance training in the factory.
(2) We will send our engineers to your country by negotiation.
3. Maintenance and Consultation
(1) We provide full maintenance for a lifetime and charge for the raw materials only.
(2) We also provide lifetime consultation by E-mail, call, Skype, Whatsapp, MSN or other ways for free.
(1) We guarantee all our displays, modules, parts for two full year. During this time, we will replace or remand our goods for free if there is something wrong with them.
(2) We will provide maintenance for a lifetime and charge for the raw materials only.
2. Technology Training
(1) We provide the technical training for free, which contains the operation training and maintenance training in the factory.
(2) We will send our engineers to your country by negotiation.
3. Maintenance and Consultation
(1) We provide full maintenance for a lifetime and charge for the raw materials only.
(2) We also provide lifetime consultation by E-mail, call, Skype, Whatsapp, MSN or other ways for free.
Advantage:
1. World leading outdoor SMD application;
2.14 years LED screen industry experience, with rich experienced technical team;
3. Cost-effective solution with good quality, saving energy and cost;
4. 24/7 hours after service;
5. Extreme low power consumption.

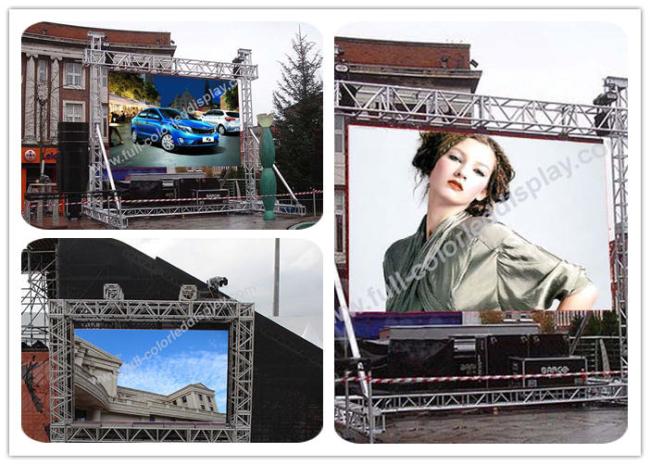

Rental LED display P6 outdoor screen project case:
