SMD2121 LED Stage Display Ultra Slim P3 Indoor Screen Installed In Church

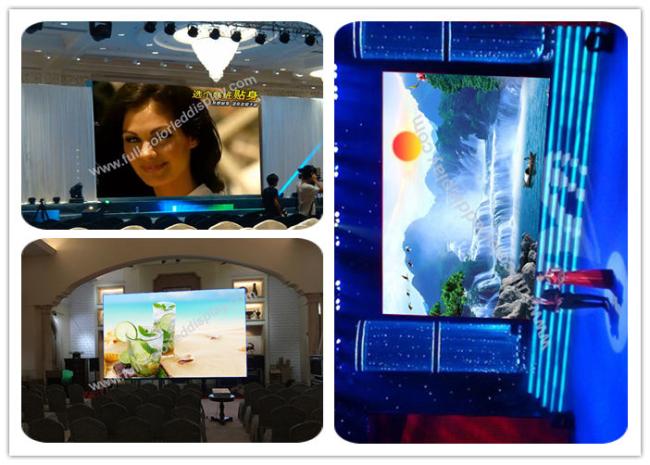

Ultra Slim P3 LED stage Display indoor screen installed in church
P3 LED stage Display indoor screen features:
- High Contrast ratio (5000: 1) with a black mask and black coating technique;
- Large viewing angle,160 degrees Horizontally and 140 degrees vertically by using our specially designed mask;
- Die-castingAluminumstructure,high-precision processing technology, and good heat dissipation;
- High contrast rate by using blackbody LED, a reach 9000:1;
- With special rigging system, It is very convenient to hang the screen to the truss. It is very safe;
- HIgh refresh rate 1500-2000HZ/S, guarantee no scanning lines when taken photo or video;
LED stage Display indoor screen parameter:
| Module | Model Number | P3mm |
| Module size | 192mm*96mm | |
| Pixel pitch | 3mm | |
| Pixels Density | 111111 /m2 | |
| Pixel configuration | 1R1G1B | |
| Package mode | SMD2121 | |
| Pixel resolution | 64dots(W)*32 dots(H) | |
| Scan mode | 1/16scan | |
| Port type | HUB75-A | |
| Brightness | ≥1800cd/m2 | |
| Cabinet | Cabinet size | 576mm*576mm |
| Electricity parameters | Power supply | 5V/40A*3pcs |
| Pixel per cabinet | 192*192 | |
| Best viewing distance | 3M ~ 20M | |
| Best viewing distance | 160°(W) 120°(H) | |
| Temperature | -40 degree~ +70 degree | |
| Relative humidity | 10%-95% | |
| Screen thickness | 85mm | |
| Working voltage | AC220V/110V±10% | |
| Average Power | 180W/ m2 | |
| Max.Power consumption | ≤360W/ m2 | |
| Refresh frequency | ≥2200HZ | |
| Grey scale/color | 256levels of each color (RGB)/16.7M colors | |
| MTBF | ≥9000hours | |
| Notes: Specifications are for reference only. Please contact our salesperson for details. All rights are reserved to Led World. | ||
Application:
Now, with the development of society, the led screen has been used in many areas, mainly divided into outdoor usage and indoor usage such as:indoor performance, indoor rental business, Public places, Business usage;For example: supermarket, restaurants, travelling agency, commercial plaza, Movie theaters,clubs, commercial building, subway stations, airport stations,
FQA:
Q1: What s your delivery time?
A1: Within 7-21 days after we receiving the deposit
Q2: Except this model, are there any other models?
A2: yes, For indoor led screen we have p2.5 p3 p3.91 p4 p4.81 p5 p6 p7.62 p10 For outdoor led screen we have p5 p6 p8 p10
Q3: How is your service?
A3: 1 We offer 2-3 years warranty Lifetime free maintenance and upgrade;
2 Full set of documents free of charge which including installation guidance software operation manual
easy maintenance manual and control system software CD and soon;
3 Complaint respond period not exceed 1 working day;
4 Free technician training can be offered either when you are in our factory for inspection the goods or via remote control.
Q4: What s the function of your led screen?
A4: It supports videos, flash, WAV/MIDI, PPT, images and so on
Product detail:
