Indoor Light Weight Led Video Screen Rental Thin Cabinet 14 Bit Grey Color For Stage Show
Display LED P4 rental indoor lightweight and thin cabinet for stage show
Display LED P4 rental indoor features:
- Portable and set-up and dismantle with two fast locks on each panel;
- Easy to maintain: No need to disassemble the whole screen for maintenance. Each component can be detached individually for that purpose;
- Just 8.5 kgs every panel only 70mm thickness portable;
- High definition with an outstanding image and video quality;
- Stable Good quality: we have stable raw materials suppliers such as The lamp; the IC; the power supply; the control system etc. Every link, we have strict quality checks;
- High reliability and long lifespan MTBF 5000 hours;
- Made with Aluminum material better for heat dissipation;
Display LED P4 rental indoor advantage:
- Easy to maintain: No need to disassemble the whole screen for maintenance. Each component can be detached individually for that purpose;
- User-friendly design more convenient installation more efficient and secure High strength high toughness;
- Good thermal design excellent heat dissipation even no fan installation very quiet;
- Ultra Thin: the cabinet for the p4 indoor rental led screen is Thin, so it is good looking and easy to disassemble and transport;
- Good thermal design Taking structural heat emitting to keep the cabinet an excellent heat dissipation even no fan installation;
Display LED P4 rental indoor parameters:
| Module | Item | Specification | ||||||
| Pixel Pitch | 4 mm | |||||||
| LED per pixel | SMD2121, Black led | |||||||
| Resolution | 62500 pixel/ (uniformly spread over the surface, to ensure homogeneity) | |||||||
| LED Number per/m² | 62500 | |||||||
| Single Module Dimension/Pixel(W x H) | 256mm x 128mm / (64dots * 32dots) | |||||||
| Cabinet | Single Cabinet Dimension/Pixel(W x H) | 512mm*512mm /(128dots * 128dots) | ||||||
| Cabinet Material | Rental, Die-casting | |||||||
| Single Cabinet Weight | around 8.5kg | |||||||
| Display | Screen Dimension(W x H) | 6.144m*4.096m | ||||||
| Screen Surface Area | 25.17 | |||||||
| Screen Graphic Definition | 1536 dots * 1024 dots | |||||||
| Screen Configuration (W×H) | 96 cabinets (Modular structure, allow any shape and size) (2 screens) | |||||||
| Electricity parameter | Optimal View Distancing | 4m-150m | ||||||
| Horizontal Viewing Angle | 140° (Standard LEDs Viewing Angle) | |||||||
| Vertical Viewing Angle | 140° (Standard LEDs Viewing Angle) | |||||||
| Brightness | >1400cd/m² | |||||||
| Grey Color | 14 Bit | |||||||
| Contrast | 2000:01:00 | |||||||
| Operating Temperature | -20ºC~+50ºC , 10%~90%RH | |||||||
| Temperature Checkup | When the working temperature is over 70 ºC, the power supply will cut off the current automatically. There are also excessive current& voltage protection | |||||||
| LEDs Lifetime | >1,000,000 Hours | |||||||
| Warranty | 2 years | |||||||
| Input Voltage | 110V-240V | |||||||
| Input Power Frequency | 47~64Hz | |||||||
| Screen Power Consumption | Max:≤380W/sqm ; Average: 130w/sqm | |||||||
| Refresh Rate | ≥1600Hz | |||||||
| Frame Rate | > 60 frames/sec | |||||||
| Defect Rate | ≤0.0002 | |||||||
| Water proof | No | |||||||
| Control Method | Synchronized with computer monitor | |||||||
| Way of Drive | 1/16 Scan constant driving | |||||||
| MTBF | > 100,000 hours | |||||||
| Color Temperature | 6500K±500 | |||||||
| Signal Interface | DVI | |||||||
| Source Compatibility | YPbPr, PAL/NTSC, S-Video, HDMI, VGA, HD_SDI | |||||||
| Control Distance | 120 m (CAT5, CAT6); Optical fiber transmission: 500m- 10km | |||||||
| Systems Operating Platform | WINDOWS(WIN95,WIN98,WIN2000, WINXP), with a friendly UI, and interfaces for secondary development. | |||||||
| Notes: Specifications are for reference only. Please contact our salesperson for details. All rights are reserved to Led World. | ||||||||
FQA:
Q1: Is it OK to print my logo on led Screen product?
A1: Yes. Please inform us formally before our production and confirm the design firstly based on your project;
Q2: What is a pixel?
A2: The minimum luminous pixel LED display, with an ordinary computer monitor, said the "pixel" the same meaning;
Q3: What are your main products?
A3: We are especially professional in producing outdoor indoor portable LED screens Full color LED display screens for fixed installation are also our competitive products;
Q4: How to payment?
A4: You can transfer payment by TT, West Union, Let us work together. Expecting your inquiry.

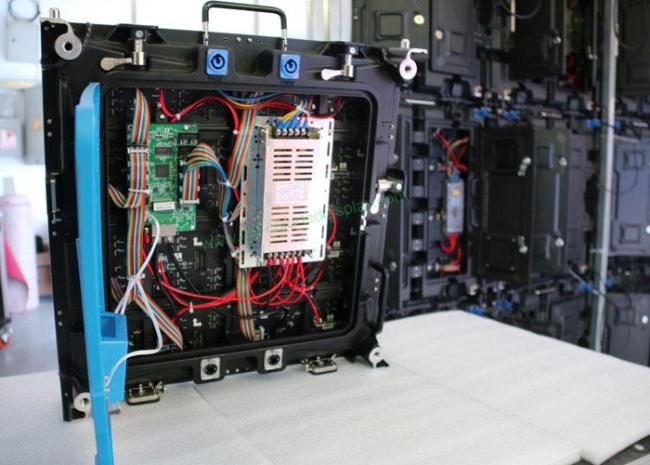

Display LED P4 rental indoor product detail:

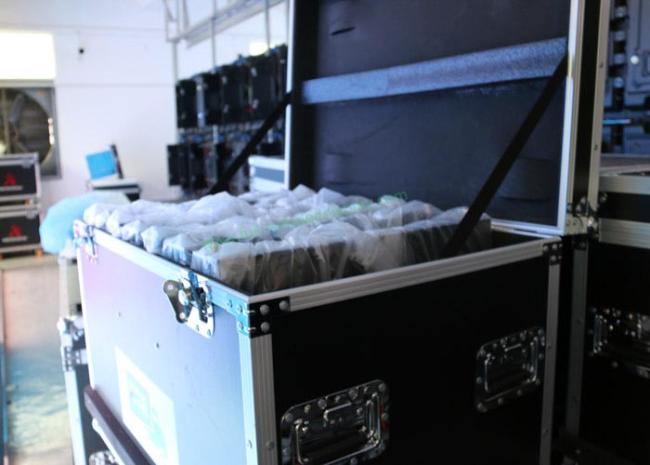

Package:
