Ultrathin P2.5 Indoor Rental LED Display CE Rohs Certificated For Public Events
Ultrathin P2.5 Indoor Rental LED Display with CE Rohs for Public Events
Ultrathin P2.5 Indoor Rental LED Display features:
- Competitive price and 2 years warranty;
- High performance and adjustable side lock;
- The aluminum structure requires no fan,making the cabinet noiseless;
- High thermal conductivity Alloy cabinet, better heat dissipation;
- Approved by RoHS certification, Lead-free, enviromental design;
- With power and signal connectors Neutrik or Seetronic brand very easy to install and dismantle;
- Combined with the brightness auto-adjusting technology and PFC power supply,low current can save energy by over 35%;
Ultrathin P2.5 Indoor Rental LED Display parameters:
| Parameter | Value | |
| Physical Parameter | Pixel Configuration | 1515 black body 3in1 SMD |
| Pixel Pitch (mm) | 2.5 | |
| Module Dimensions (LxW)/(mm) | 160X160 | |
| Cabinet Dimensions (LxW)/(mm) | 480X480 | |
| Panel material | Diecasting Aluminum | |
| Module Weight (kg) | 0.4 | |
| Cabinet weight (kg) | 11 | |
| Electronic Parameter | Color Grayscale (Bit) | 14 |
| Color Grayscale (Bit) | 16384 | |
| Refresh Rate(Hz) | 1920 | |
| Scan Model | 1/32 | |
| Frame Frequency(Hz) | 50/60 | |
| Signal Transmission Distance (m) | CAT5 cable:<100 m; Single mode fiber:<10 km | |
| Optical Parameter | Brightness(cd/m2) | 1200 |
| Color Temperature(K) | 7500 | |
| Color Contrast | 2500:01:00 | |
| Optimal Horizontal Viewing Angle(°) | 160 | |
| Optimal Vertical Viewing Angle(°) | 160 | |
| Electrical Parameter | AC Input Voltage(V) | 100-240 |
| AC Input Frequency(Hz) | 50/60 | |
| AC Input Power Maximum Value(W/m²) | 570 | |
| AC Input Power Typical Value(W/m²) | 190 | |
| Circumstance Parameter | Storage Temperature(ºC) | -40~+60 |
| Operating Temperature(ºC) | -10~+40 | |
| Storage Humidity(RH) | 10~90 | |
| Operating Humidity(RH) | 10~90 | |
| Waterproof Rating | IP40/IP21 | |
| Lifetime Typical Value(hrs) | 100000 | |
| Installation type for rental product | Cabinet installation type | Rental/Fix |
| Maximum number of panel for Lifting | 20 | |
| Others | Communication - level power supply (customization), hot double backup, temperature and humidity test, multi - signal input support, etc. Double backup, temperature and humidity test, multi - signal input support, etc. | |
| Notes: Specifications are for reference only. Please contact our salesperson for details. All rights are reserved to Led World. | ||
FQA:
Q1: What about the lead time?
A1: Order less than 100 square meter led time take 15 working days
Q2: Whats your payment term? How long it takes to delivery?
A2: We accept T/T and L/C, For both T/T and L/C, At least 30% deposit in advance, and the rest 70% before delivery;
Q3: Can it play HD video?
A3: Yes, it can realize HD video function with Linsn controlling system.
Q4: How to be our distributor?
A4: To be our distributor, We can share our profit together with you in every year, Also we can send our engineer or sales to your company to support your business, also for led screen after-service, We will together with you to the after-service in the whole led screen life time;
Q5: How can you ensure the led display product quality?
A5: Quality is our core competence, for 9 years, what we rely on.We have each strict process to make quality products.If any quality failures within warranty time, we will sent the the replace parts to you and offer the technical support;
Q6: What's the shiping method,shipping time?
A6: Our products could be shippedby Sea, by Air, and by Express;

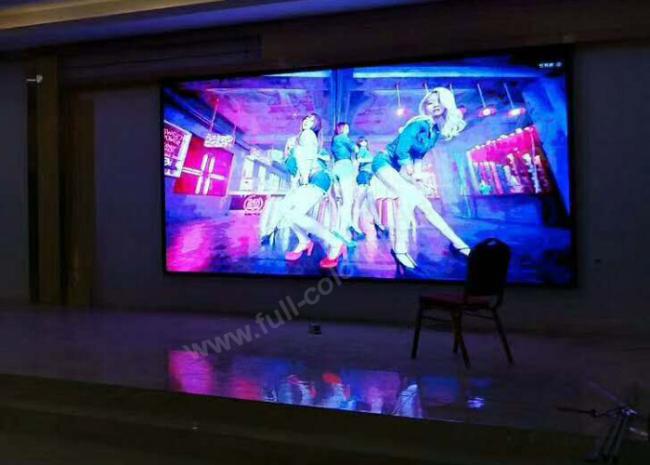

Ultrathin P2.5 Indoor Rental LED Display project case:
