Seamless Splicing Outdoor Led Screen Rental P5 4-60M Viewing Distance For Church / Stage
Price:
negotiable
MOQ:
1 square meter
Delivery Time:
12~20 working days after deposit received
Brand:
Shenzhen LED World
Product Description
Seamless splicing Outdoor displays Rental P5 LED screen for Church / stage
Seamless splicing Outdoor displays Rental P5 feature:
- High bright Lamp SMD3535;
- Module material: PC and aluminium alloy,High brightness,point-to-point pixels to the white balance adjustment；
- IP65 and Seamless Connection;
- New design, suitable for outdoor indoor live show, brightness adjustable facing the sunshine directly, waterproof IP65. neither flick nor color blocks. Die casting aluminum cabinet size;Quality advantage: From material to finished product, from design to produce, we control all steps;
- cabinet for front maintenance, cabinet with lock, Special cabinet with Southco Lock, for hung and rental and so on;
Seamless splicing Outdoor displays Rental P5 parameter:
| P5 Outdoor full Color LED Screen Specification | ||||||
| Pixel pitch | 5mm | |||||
| Pixel Configuration | 1R1G1B | |||||
| LED component | SMD2727 | |||||
| Size of module16 | 160x160mm | |||||
| Resolution of module | 32x32dots | |||||
| Size of cabinet | 640mm x 480mm x 78mm | |||||
| Resolution of cabinet | 128x96dots | |||||
| Material of Cabinet | Die-casting aluminum | |||||
| Weight of Cabinet | 12kgs | |||||
| Brightness | >6000cd/sq.m | |||||
| Density | 40000dots/sq.m | |||||
| Best viewing angle | 140° /140° | |||||
| Best viewing distance | 4-60M | |||||
| Maximum power consumption | <1200W/sq.m | |||||
| Average power consumption | <400W/sq.m | |||||
| Driving method | 1/8 scan | |||||
| Control method | Synchronization | |||||
| Gray scale | 65536 | |||||
| Colors | 256*256*256 | |||||
| Color temperature | 3200-9300k | |||||
| Uniformity | 97% | |||||
| Working voltage | AC220V/110V±10% | |||||
| Working temperature | -20ºC~+50ºC±10% | |||||
| Working humidity | 10% ~ 90% | |||||
| MTBF | 10,000 hours | |||||
| Frame frequence | 50/60Hz | |||||
| Refresh frequence | >1800Hz | |||||
| IP grade | IP65 | |||||
| Life Span | 100,000 hours | |||||
| Data transafer method | RJ45 | |||||
| Pratical standard | CCC TUV-CE ETL etc. | |||||
| Effectivce Communication | Unshielded twisted pair net line transmission distance:100M, max transmission distance:130M; Multi-mode optic fiber: 500M; | |||||
| Distance(without relay) | Single-mode optic fiber: 10KM | |||||
| Accepting signal with video processor | PAL/NTSC/SECAM,S-Video;VGA;RGB;HDMI,DVI,Composite Video;SDI,DP etc. | |||||
| Systems operating platform | WINDOWS(WINXP,WIN7/8/10), and interfaces for secondary development | |||||
| Notes: Specifications are for reference only. Please contact our salesperson for details. All rights are reserved to Led World. | ||||||
Why choose us:
- Strong R D team ensures products with nice features;
- We respond in 1 working day;
- Innovative LED Screen Manufacturer for indoor outdoor rental events and fixed projects;
- The most importantly the cabinet can be removed from the center of the LED display easy to change the cabinet when it has problem while there is no time to change the module It can also help you have different stage design;
- Large viewing angle 160 degree Horinzontally and 140 degree vertically by using our specially designed mask;

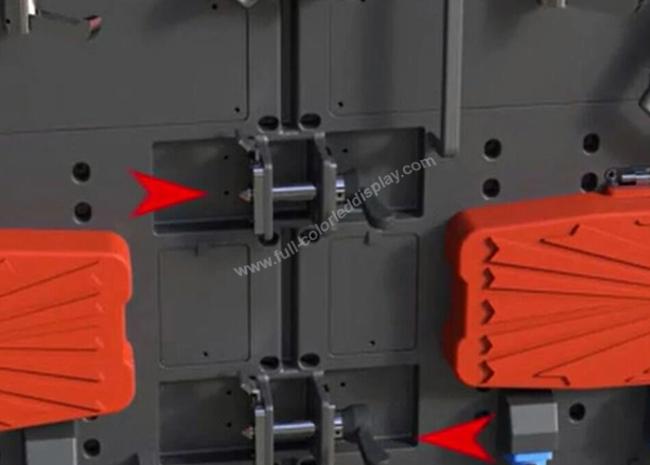

Seamless splicing Outdoor displays Rental P5 detail:
