Outdoor Advertising Sports Led Display Screen P8 High Brightness For Stadium Perimeter
High Brightness LED Display for Sports Stadium Perimeter P8 Outdoor Advertising
Sports Stadium Perimeter P8 led display features:
Sports Stadium Perimeter P8 led display parameter:
| Unit Module | Item | Parameter |
| Model Number | LW-FO 8 | |
| Module size | 320mm*160mm | |
| Pixel pitch | 8mm | |
| Pixels Density | 15625dots/m2 | |
| Pixel configuration | 1R1G1B | |
| LED Package mode | SMD3535 | |
| Pixel resolution | 40dots(W)*20 dots(H) | |
| Max Power | 25W | |
| Module thickness | 17.05mm | |
| Weight | 0.38kg | |
| Drive type | Constant drive | |
| Scan mode | 1/5scan | |
| Port type | HUB75-A | |
| Brightness of white balance | ≥5600cd/m2 | |
| LED Cabinet | Dimension | 960mm*960mm |
| Monomer Module Number | 18 | |
| Power supply | 5V/60A*3 pcs | |
| Thermal discharge | fan 2pcs | |
| Pixel per cabinet | 120mm*120mm | |
| Best viewing distance | 8M~40M | |
| Best viewing angle | 160°(W) 120°(H) | |
| Temperature | storage:-35ºC~+85ºC | |
| working:-20ºC~+50ºC | ||
| Relative humidity | 10%-95% | |
| Thickness | 85mm | |
| Power | Working voltage | AC220V±10% |
| Average Power consumption | 140W/m2 | |
| Max.Power consumption | ≤480W/m2 | |
| Current | ≤20mA(single LED) | |
| Control system | CPU | Pentium4 or above P4 |
| Operation system | WIN98/2000/NT/XP/WIN7 | |
| Control method | Synchronization | |
| Main technical parameter | Driving device | Constant drive IC |
| Refresh frequency | ≥1,200HZ | |
| Grey scale/colors | 4,096gray level/16.7M colors | |
| MTBF | ≥9,000hours | |
| Power switch | Automatic switch | |
| Display Mode | ≥800*600/1024*768 | |
| Notes: Specifications are for reference only. Please contact our salesperson for details. All rights are reserved to Led World. | ||
After sale service:
A. Phone service
Linso after-sales Services Department provides customers with 24 hour- phone service. When you contact us, please let us know the following information:
1. Your name and phone number
2. Product model
3. Detailed fault information (if the fault could be presented by pictures, please takes pictures and sends them to us as possible as you can)
Our after-sales service engineers will offer technical support and guidance based on your description.
B. Real-time communication service
Linso after-sales service engineers could provide customer services through TM E-mail Skype, for example, sending the video files of software operation graphic card setup by TM to show how to operate.
C. Remote control service
Linso can operate the customer s computer remotely via Internet, to install and set up software for customers, and to dispose of the technical fault of LED display system software.
D. Post Service
Under warranty, customers could send the defective components back to Linso, we will repair them and return to you as soon as we can. Please refer to the time chart of our response to some main components fault.

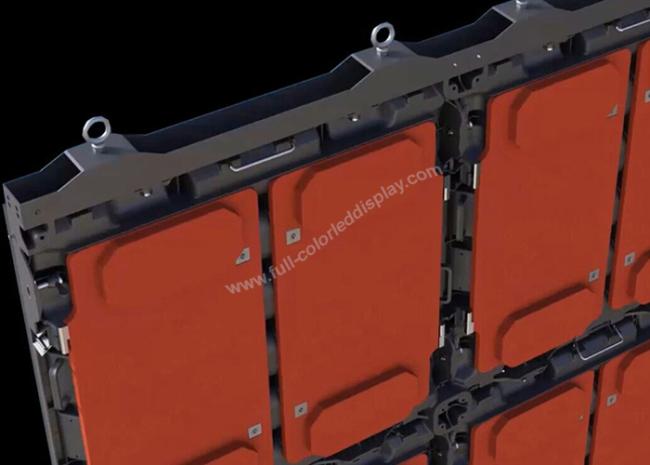

Product detail:
