50/60Hz P10 Outdoor High Brightness Led Display 960*960mm Nation Star Diecast
Price:
negotiable
MOQ:
1 square meter
Delivery Time:
10~20 days after receiving the deposit
Brand:
Shenzhen LED World
Product Description

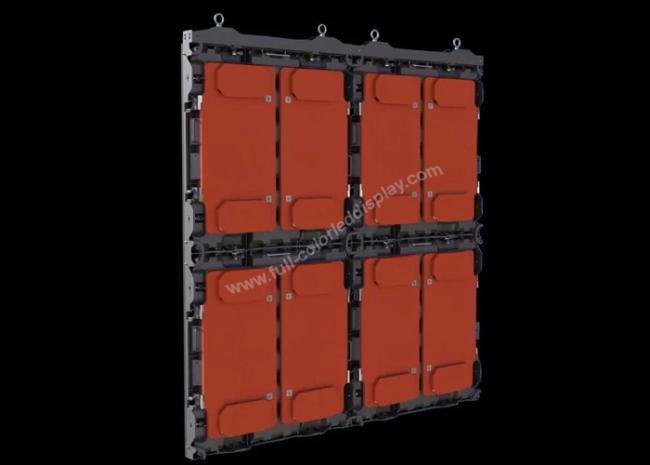

P10 Outdoor LED Display 960*960mm Nation Star Diecast both fixed and rental use
P10 Outdoor LED Display features:
- With fast locks and connectors easy for assemble and disassemble;
- Seamless connection with high flatness and soft image;
- Made with aluminum alloy with very light weight;
- Frame/Structure free installation on building wall;
- Width and height can be added endlessly as for fixed installation;
- Display Color: 256*256*256;
- For outdoor display, super bright, supports any format of video ;
P10 Outdoor LED Displa parameter:
| P10 Outdoor full Color LED Screen Specification | |
| Pixel pitch | 10mm |
| Pixel Configuration | 1R1G1B |
| LED component | SMD3535 black |
| Size of module | 320mm x 160mm |
| Resolution of module | 32x16 |
| Size of cabinet | 960mmx 960mm /1280mm x 960mm |
| Resolution of cabinet | 96x96 / 128 x 96 |
| Material of Cabinet | alloy die-casting |
| Weight of Cabinet | <60KGS |
| Brightness | >7500cd/m2 |
| Density | 10000dots/m2 |
| Best viewing angle | 140 /14 |
| Best viewing distance | 10-150M |
| Maximum power consumption | <800W/m2 |
| Average power consumption | <350W/m2 |
| Driving method | 1/2 scan |
| Control method | Synchronization |
| Gray scale | 65536 |
| Colors | 256 x 256 x 256 |
| Color temperature | 3200-9300k |
| Uniformity | 97% |
| Working voltage | AC220V±10% |
| Working temperature | -20ºC~+50ºC±10% |
| Working humidity | 10% ~ 90% |
| MTBF | 10,000 hours |
| Frame frequence | 50/60Hz |
| Refresh frequence | >1800Hz |
| IP grade | IP65 |
| Life Span | 100,000 hours |
| Data transafer method | RJ45 |
| Pratical standard | CCC TUV-CE ETL etc. |
| Effectivce Communication | Unshielded twisted pair net line transmission distance:100M, max transmission distance:130M; Multi-mode optic fiber: 500M; |
| Distance(without relay) | Single-mode optic fiber: 10KM |
| Accepting signal with video processor | PAL/NTSC/SECAM,S-Video;VGA;RGB;HDMI,DVI,Composite Video;SDI,DP etc. |
| Systems operating platform | WINDOWS(WINXP,WIN7/8/10), and interfaces for secondary development |
| Notes: Specifications are for reference only. Please contact our salesperson for details. All rights are reserved to Led World | |
Our service:
- Special service for big project, such as stadium, exhibitions, squares and so on.
- Customer Investigation: our after-sales team will telephone or e-mail user every month in warranty period to follow up the working condition of the products, and to discover problem and solve the problem instantly.
- Delivery----Mostly we can ship goods as arranged schedule;
- Replyyourinquiryin24workinghours;
Why choose us:
- Because we have provide 2 year warranty ,good after-sale service and timely technical support......
- 24H technology support no matter what questions you have;
- HD high refresh rate: the resolution for each led module is 64*32, so if the viewing distance is 4 meters or more. it is Best effect;
- Competitive Price
- We are factory manufacturer and we control our cost very well we can give the real benefits to our customers;
Product detail:
