Indoor Soft / Flexible Smd Led Module P2.5/P3/P4/P5 DC5V Low Power Consumption
Price:
negotiation
MOQ:
negotiation
Delivery Time:
10~20 working days
Brand:
Shenzhen LED World
Product Description

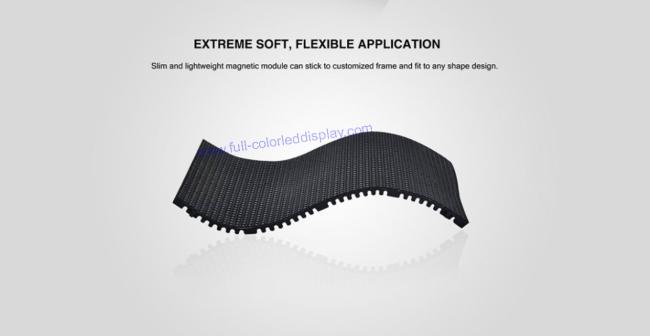

Indoor soft / flexible led display screen module, P2.5/P3/P4/P5
Soft led module features:
- Flexible: it has good ductility, can be curved to conform your request.
- Untra-thin: soft led module is only 8mm thickness
- Low heat: the soft led module is low power , so it is low heat and long lifespan
- Front Maintenance: the soft led module possess front maintainance, suitable for not enough space to install led display
- Light weight: each soft led module just 800g. it is very convenient for person to carry and transportation
Soft led module parameter:
| P5,P6 indoor soft led display module | |||||
| No. | Parameter | Value | |||
| led type | brightness | Wave Length | H/V Visual angle | ||
| 1 | Red LED | SMD3528 | 120-140 MCD | 620-625nm | 140°/120° |
| 2 | Green LED | SMD3528 | 360-435 MCD | 520-525nm | 140°/120° |
| 3 | Blue LED | SMD3528 | 80- 100 MCD | 470-475nm | 140°/120° |
| 4 | Pixel pitch | 5 mm | 6mm | ||
| 7 | Drive model | 1/16 scan | 1/16 scan | ||
| 10 | Module pixel | 2048 pixel | 1024 pixel | ||
| 8 | Pixel Configuration | 1R1G1B | 1R1G1B | ||
| 5 | Brightness | 1300 cd/M2 | 1300 cd/M2 | ||
| 6 | Module size | 320mm x 160mm | 192mmx192mm | ||
| 9 | Module Resolution | 64 dots x32 dots | 32 dots x32 dots | ||
| 11 | Power | DC 5 v | |||
| 12 | Number of colors | 16bit | |||
| 13 | Discrete control point | ≤0.1‰ | |||
| 14 | Control method | Synchronize with the video source | |||
| 15 | Working temperature | -20°C~+50 °C | |||
| 16 | Working environment humidity | 10%~90% | |||
| 17 | Transfer board | hub75 | |||
Soft led module application:
- Soft led module display has been widely use in various field.
- Including to business organizations, the promotion of goods
- the financial organizations, the importance notice of government etc
- the public places, museum, subway and park etc
- the entertainments , movie theater, internet bar and so on
Soft led module details:
