P10.4 Indoor Transparent LED Video Wall 9246 Dots / Sqm For Window Advertising

Price Negotiable

Price: negotiation

MOQ: 1 pcs

Delivery Time: 7- 18 working days

Brand: Shenzhen LED World

Product Description

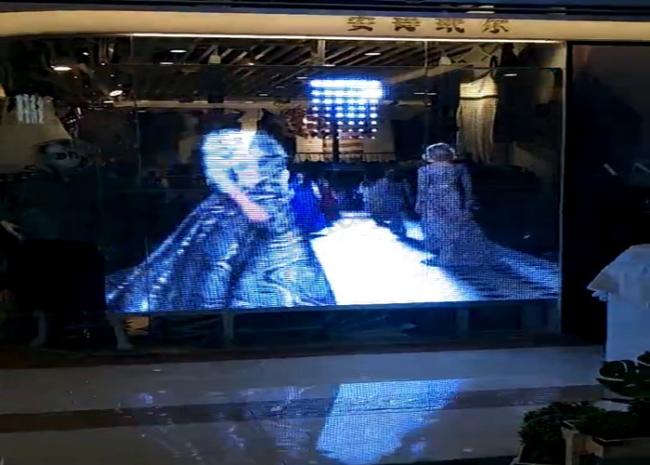

Indoor transparent ultra thin led screen display for window glass shopping mall use

P10.4 Indoor led screen transparent feature:

Made with high quality Nation star led lamps,ensure good display vision and good stability
Ultra thin: only less than 50 mm thickness, and light weight,only with 10.5kgs per panel
Ultralight: only 7kg per cabinet , it is portable and easy to carry
Panel size is 500x1000mm,easy and convenient to combine different screen size,also accept customized
Easy maintenance:

Long life, only need to replace the light bar, do not need to replace the entire module. Use outdoor standard encapsulated LED lights, uv resistant
High refresh rate up 1920Hz, and high brightness up to 5500nits, both suit for indoor and outdoor use

P10.4 Indoor led screen transparent parameter:

P10.4 SMD3510 Indoor full Color LED Screen Specification
Pixel pitch	10.4mm
Size of module	500mm x 1000 mm
Resolution of module	48 x 96 dots
Weight of Cabinet	10.5kgs
Brightness	5500cd/sq.m
Density	9216dots/sq.m
Maximum power consumption	<800W/sq.m
Best viewing angle	140°H 140°V
Pixel Configuration	1R1G1B
Best viewing distance	10-100M
Driving method	1/3 scan
Control method	Synchronization/Asynchronization
MTBF	>10,000 hours
Effectivce Communication	Unshielded twisted pair net line transmission distance:100M,
Gray scale	65536
Working temperature	-20ºC~+50ºC±10%
Life Span	100,000hours
Refresh frequence	>1920Hz
Frame frequence	50/60Hz
Data transafer method	RJ45
Color temperature	6500k
Working voltage	AC220V/110V±10%
IP grade	IP65
Distance(without relay)	max transmission distance:130M; Multi-mode optic fiber: 500M;
	Single-mode optic fiber: 10KM
Systems operating platform	WINDOWS(WINXP,WIN7/8), and interfaces for secondary development
