Product Description
P6 Curved Outdoor Seamless Corner LED Angle Display With 2 Warranty
P6 Angle LED Display Feature :
- Low Power Consumption, Energy Saving;
- Compatible to many signal sources such as AV, S-Video, DVI, VGA,YPbPr, HDMI,SDI,DP etc;
- Kinglight LED lamp and Sunmoon IC made;
- Stable cabinet, stronger without distortion, anti-rust;
- Natural Color(16,777,216 Colors) by the high-quality luminescent of RED, GREEN, BLUE- LED;
- Large corner screen is easier to increase media audience attention;
P6 Angle LED Display Parameter :
| P6 outdoor fixed LED display | |
| Module Parameter | |
| Pixel pitch | 6mm |
| Pixel Density | 27777 pixels/sqm. |
| LED type | SMD2727 |
| Pixel combination | 1R1G1B |
| Module size | 192x192mm |
| Module resolution | 32x32 pixels |
| Driving mode | 1/8 scan |
| Panel Parameter | |
| Number of modules | 4W*4H |
| Panel size | 768x768mm |
| Panel resolution | 128x128 |
| Maintain way | Rear |
| IP Rating | IP65 |
| Flatness | ≤0.1mm |
| Cabinet material | Die-cast aluminium or Iron |
| General Parameter | |
| Viewing distance | ≥7M |
| Brightness | ≥5000CD/sqm. |
| Viewing angle | 120°/120° |
| Weight | 40kg/sqm. |
| Max Power consumption | Max. 700W/sqm. |
| Aver Power consumption | Aver. 280W/sqm. |
| Frame frequency | ≥60HZ |
| Refresh frequency | ≥1920HZ |
| Working Temperature | -30ºC~50ºC |
| Working Voltage | AC90~260V±20%,50-60HZ |
| Grey scale/color | 16384x16384x16384 |
| Brightness adjustment | 0-255 |
| MTBF | 5000 hours |
| Life | 100000 hours |
| Malfunction dot rate | <0.0001 |
| Control distance | Ethernet cable≤100m, Single mode fiber optic ≤500m, Multimode fiber optic ≤15km |
| Control system | |
| Control system | Novastar / Linsn / Colorlight ( Optional ) |
| Input signal | DVI / HDMI / SDI / VGA / S-video / Composite |
| Video processor | VDWALL / RGBlingk / Novastar ( Optional ) |
| Audio system | |
| Audio system | BOSE / JBL / PAL / Customized ( Optional ) |
| Installation | Fixed installation / Rental installation ( Optional ) |
| Hanging bar | Optional |
| Certification | CE / RoHS / ETL / CCC / FCC / BS476 |
| Packing Type | Plywood case / Flight case ( Optional ) |
| Notes: Specifications are for reference only. Please contact our salesperson for details. All rights are reserved to Led World. | |

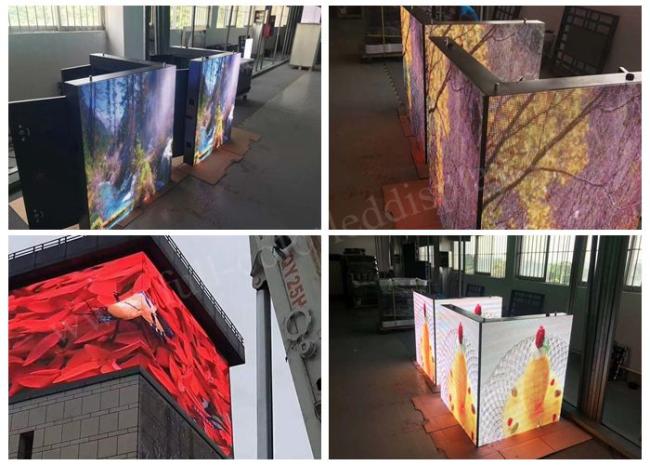

P6 Angle LED Display Details:
Why Choose Us :
- all of our led module has highly resolution, good image effect,and easy to install and convenient to carry;
- Well-trained and experienced staffs to answer you’re your inquires in fluent English;
- 24H technology support no matter what questions you have;
- We mainly focuses on achieving customers innovative ideas by customizing lead screens;
- High contrast rate by using black body LED;
