Waterproof Outdoor Full Color Led Screen P10 6500cd/sqm Brightness 1920Hz Refresh Rate
Price:
Negotiation
MOQ:
1 square meter
Delivery Time:
7- 18 working days
Brand:
Shenzhen LED World
Product Description
P10 Waterproof Angle Outdoor LED Display Full Color
P10 Angle LED Display Feature :
- Wide color range, excellent color uniformity;
- Kinglight LED lamp and Sunmoon IC made;
- High brightness, screen adjusts automatically;
- Incorporating high-quality luminescent of RED, GREEN BLUE LED elements and a large number of pixels enables a brilliant display even in direct sunlight, and a wider viewing angle;
- Store data by video recording card;
- Make graphic image file / text insertion at any time;
- LED corner screens are better integrated into the building itself ;
P10 Angle LED Display Parameter :
| P10 outdoor fixed led display | |
| Module Parameter | |
| Pixel pitch | 10mm |
| Pixel Density | 10000 pixels/sqm. |
| LED type | SMD3535 |
| Pixel combination | 1R1G1B |
| Module size | 320x160mm |
| Module resolution | 32x16 pixels |
| Driving mode | 1/2 scan |
| Panel Parameter | |
| Number of modules | 4W*4H |
| Panel size | 960x960mm |
| Panel resolution | 96x96 |
| Maintain way | Rear |
| IP Rating | IP65 |
| Flatness | ≤0.1mm |
| Cabinet material | Die-cast aluminium or Iron |
| General Parameter | |
| Viewing distance | ≥11m |
| Brightness | ≥6500CD/sqm. |
| Viewing angle | 120°/120° |
| Weight | 40kg/sqm. |
| Max Power consumption | Max. 900W/sqm. |
| Aver Power consumption | Aver. 360W/sqm. |
| Frame frequency | ≥60HZ |
| Refresh frequency | ≥1920HZ |
| Working Temperature | -30ºC~50ºC |
| Working Voltage | AC90~260V±20%,50-60HZ |
| Grey scale/color | 16384x16384x16384 |
| Brightness adjustment | 0-255 |
| MTBF | 5000 hours |
| Life | 100000 hours |
| Malfunction dot rate | <0.0001 |
| Control distance | Ethernet cable≤100m, Single mode fiber optic ≤500m, Multimode fiber optic ≤15km |
| Control system | |
| Control system | Novastar / Linsn / Colorlight ( Optional ) |
| Input signal | DVI / HDMI / SDI / VGA / S-video / Composite |
| Video processor | VDWALL / RGBlingk / Novastar ( Optional ) |
| Audio system | |
| Audio system | BOSE / JBL / PAL / Customized ( Optional ) |
| Installation | Fixed installation / Rental installation ( Optional ) |
| Hanging bar | Optional |
| Certification | CE / RoHS / ETL / CCC / FCC / BS476 |
| Packing Type | Plywood case / Flight case ( Optional ) |
| Notes: Specifications are for reference only. Please contact our salesperson for details. All rights are reserved to Led World. | |

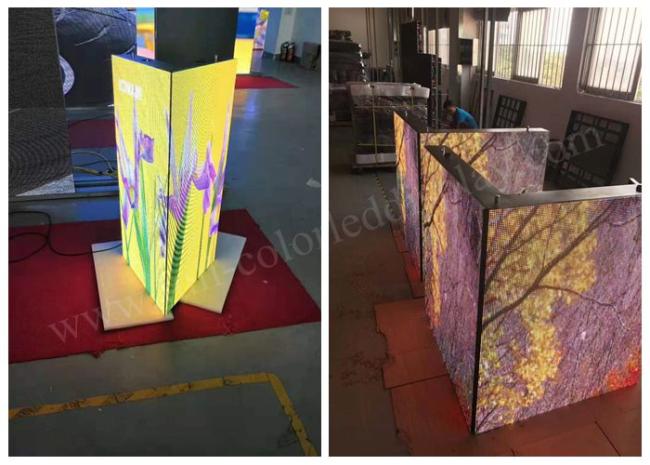

P10 Angle LED Display Details:
Our Service:
- During the warranty period: solve problems for users through the phone, fax or E-Mail. Update the software free of charge;
- After warranty , we also can offer you the parts for replacement at our bottom price;
- OEM ODM, any your customized lightings we can help you to design and put into product;
- Reply your inquiry in 24 working hours;
- Software Upgrade: lifelong maintenance of control system, incessant improvement on the system functions and unending software up grades, now we used Linsn or Nova control system;
