50/60Hz P5 Full Color Outdoor Led Display High Brightness 960*960mm Nation Star
Price:
negotiable
MOQ:
1 square meter
Delivery Time:
10~20 days after receiving the deposit
Brand:
Shenzhen LED World
Product Description
50/60Hz P5 Outdoor High Brightness Led Display 960*960mm Nation Star
P5 Outdoor LED Display features:
- With fast locks and connectors easy for assemble and disassemble;
- Seamless connection with high flatness and soft image;
- Good uniformity true color output;
- Frame/Structure free installation on building wall;
- Width and height can be added endlessly as for fixed installation;
-
Excellent quality with low power consumption, High brightness, Long Lifespan and easy to installation.
- For outdoor display, super bright, supports any format of video ;
P5 Outdoor LED Display parameter:
| P5 outdoor fixed led display | |
| Module Parameter | |
| Pixel pitch | 5mm |
| Pixel Density | 40000 pixels/sqm. |
| LED type | SMD2727 |
| Pixel combination | 1R1G1B |
| Module size | 320x160mm |
| Module resolution | 64x32 pixels |
| Driving mode | 1/16 scan |
| Panel Parameter | |
| Number of modules | 2W*4H |
| Panel size | 640x640mm |
| Panel resolution | 128x128 |
| Maintain way | Rear |
| IP Rating | IP65 |
| Flatness | ≤0.1mm |
| Cabinet material | Die-cast aluminium or Iron |
| General Parameter | |
| Viewing distance | ≥6M |
| Brightness | ≥6500CD/sqm. |
| Viewing angle | 120°/120° |
| Weight | 40kg/sqm. |
| Max Power consumption | Max. 900W/sqm. |
| Aver Power consumption | Aver. 360W/sqm. |
| Frame frequency | ≥60HZ |
| Refresh frequency | ≥1920HZ |
| Working Temperature | -30ºC~50ºC |
| Working Voltage | AC90~260V±20%,50-60HZ |
| Greyscale/color | 16384x16384x16384 |
| Brightness adjustment | 0-255 |
| MTBF | 5000 hours |
| Life | 100000 hours |
| Malfunction dot rate | <0.0001 |
| Control distance | Ethernet cable≤100m, Single mode fiber optic ≤500m, Multimode fiber optic ≤15km |
| Control system | |
| Control system | Novastar / Linsn / Colorlight ( Optional ) |
| Input signal | DVI / HDMI / SDI / VGA / S-video / Composite |
| Video processor | VDWALL / RGBlingk / Novastar ( Optional ) |
| Audio system | |
| Audio system | BOSE / JBL / PAL / Customized ( Optional ) |
| Installation | Fixed installation / Rental installation ( Optional ) |
| Hanging bar | Optional |
| Certification | CE / RoHS / ETL / CCC / FCC / BS476 |
| Packing Type | Plywood case / Flight case ( Optional ) |
| Notes: Specifications are for reference only. Please contact our salesperson for details. All rights are reserved to Led World. | |
Our service:
- Special service for big projects, such as stadium, exhibitions, squares and so on.
- Customer Investigation: our after-sales team will telephone or e-mail user every month in warranty period to follow up the working condition of the products, and to discover the problem and solve the problem instantly
- Provide unique and professional solutions based on customer's requirement;
- Spare parts: necessary spare parts are provided together with products to customers;
Why choose us:
- Because we have provide 2-year warranty , good after-sale service and timely technical support
- Aluminum alloy material both for fixed installation and hanging rental;
- Supporting OEM/ODM service, If you have special requirements about the shape and systems, we can make correspond solutions for you;
- Your question will be answered within 18 hours ;

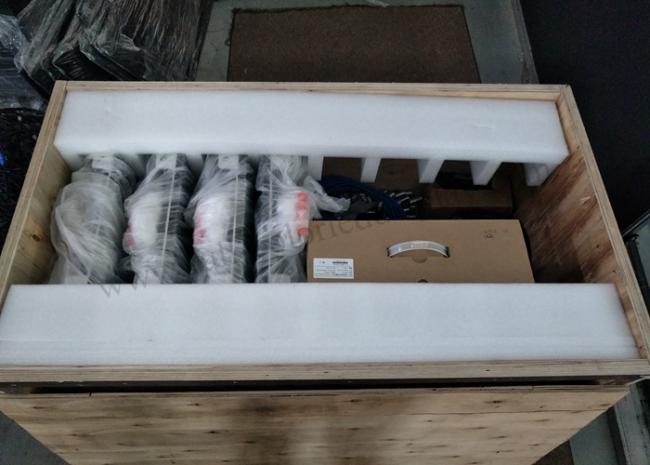

Package Details:
