120 Degree Indoor Full Color LED Display Module 1/24 Scan P2.5 SMD 2121 3840Hz

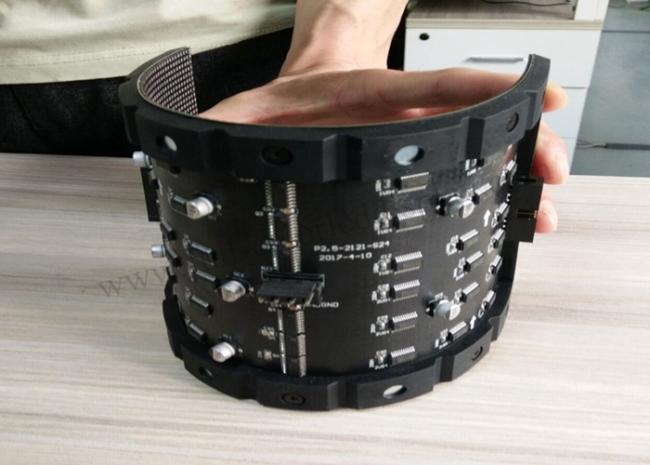

1/24 Scan P2.5 Flexible Foldable LED Display Module 120 Degree Bendable
What is the Flexible LED Display Module?
The flexible led module also named soft led modules. The flexible module is equipped with high-strength magnetic core connection device, flexible FPC circuit board made of the flexible insulating substrate, and the mask and bottom shell are made of high-temperature and bending resistant silica gel material, with high strength of compression and distortion resistance
Flexible LED Display Feature:
- Soft PCB and rubber material
- The module size is 240X120mm
- Most installation methods are based on magnetic column suction, using the installation method of " one installation is complete "
-
The real soft LED display, which is with excellent smooth effect, without gap and shadow
-
Good ductility can be any shape
-
Ultra-thin, Only 1.3cm not including electronics box.
Flexible LED Display Application :
Now flexible led display has been widely used in the indoor environment, due to the flexible led display unable to waterproof up to now, so it is unable to apply to outdoor . It can be used in the indoor cylinder, curved stage screen, creative-led display, etc.
Flexible LED Display Parameter:
| P2.5&P3&P4 Indoor flexible LED module parameter 240mm x 120 mm module/256mmx128mm |
|||||
| No. | Parameter | Value | |||
| led type | brightness | WaveLength | H/V Visual angle | ||
| 1 | Red LED | SMD2121/SMD2020 | 40-60 MCD | 620-625nm | 140°/120° |
| 2 | Green LED | SMD2121/SMD2020 | 110-180 MCD | 514-535nm | 140°/120° |
| 3 | Blue LED | SMD2121/SMD2020 | 20- 45 MCD | 460-475nm | 140°/120° |
| 4 | Pixel pitch | 2.5mm | 3mm | 4mm | 4mm |
| 5 | Lamp | SMD2121/SMD2020 black | |||
| 6 | Module size | 240mmx120mm | 240mmx120mm | 240mmx120mm | 256mmx128mm |
| 7 | Drive model | 1/24 scan | 1/20 scan | 1/15 scan | 1/16 scan |
| 8 | Pixel Configuration | 1R1G1B | |||
| 9 | Module Resolution | 96 dots x 48 dots | 80 dots x 60 dots | 60 dots x 30 dots | 64 dots x 32 dots |
| 10 | Module pixel | 4,608 pixel | 4,800 pixel | 1,800 pixel | 2,048 pixel |
| 11 | Brightness | 900 ~1200cd/M2 | |||
| 12 | Power | DC 5 v | |||
| 13 | Number of colors | 16bit | |||
| 14 | Discrete control point | ≤0.1‰ | |||
| 15 | Control method | Synchronous/asynchronous | |||
| 16 | Working temperature | -20°C~+50 °C | |||
| 17 | Working environment humidity | 10%~90% | |||
| 18 | Transfer board | hub75 | |||
| Notes: Specifications are for reference only. Please contact our salesperson for details. All rights are reserved to Led World. | |||||
Why Choose Us :
- Many pitches are available from high cost to low cost You can choose according to your budget and the project requirements;
- Because we have provided a 2 year warranty, good after-sale service, and timely technical support......
- Because we are a factory, our price is 5%-10% lower than middleman and trafficker at the same level;
- 24H technology support no matter what questions you have;
- We have a very close and strategic relationship with the raw material providers which support the stable quality of our products;"
