Digital Advertising Indoor Rental LED Display Video Show P4 High Precision
High Precision Advertising Digital P4 Indoor Rental LED Display Video Show
P4 Indoor Rental led video display features:
- Good thermal design Taking structural heat emitting to keep the cabinet a excellent heat dissipation even no fan installation;
- The same size cabinet can be compatible with different specification displays of different DOT pixels P3 P3 75 P4 P5;
- Easy to maintain:No need to disassemble the whole screen for maintenance.Each component can be detached individually for that purpose;
- User-friendly design more convenient installation more efficient and secure High strength high toughness;
- The new structure design enables diversified installation to meet the hanging-up and stacking requirements can be applied to achieve a variety of different occasions to meet various application requirements;
Advantage:
- User-friendly design more convenient installation more efficient and secure High strength high toughness and deformation; More reliable cabinet patchwork and cable connection;
- The same size cabinet can be compatible with different specification displays of different DOT pixels P3 P3 75 P4 P5;
- Cabinets adopt rapid assembling sets Which can be beautiful but also a real rapid disassembling;
- Compact base design so that the whole screen space can be smaller a lot;
- Good thermal design Taking structural heat emitting to keep the cabinet a excellent heat dissipation even no fan installation;
- The entire cabinet with die casting aluminum alloy material is more lightweight and practical;
- Higher IP rating New system High refresh rate High brightness True color output Breathtaking gray level;
P4 Indoor Rental led video display parameters:
Led lamp parameter:
| No. | Parameter | Value | |||
| led type | brightness | Wave Length | H/V Visual angle | ||
| 1 | Red LED | SMD2121 | 120-140 MCD | 620-625nm | 140°/120° |
| 2 | Green LED | SMD2121 | 360-435 MCD | 520-525nm | 140°/120° |
| 3 | Blue LED | SMD2121 | 80- 100 MCD | 470-475nm | 140°/120° |
LED module parameter:
| Module size | 256mm*128mm |
| Moudle resolution | 64 dots * 32 dots |
| Pixel pitch | 4mm |
| Pixels Density | 62500 /m2 |
| Pixel configuration | 1R1G1B |
| Package mode | SMD2121/SMD0805 |
LED cabinet parameter:
| Cabinet size | 512mm*512mm |
| Power supply | 5V/40A*2 pcs |
| Pixel per cabinet | 128*128 |
LED Electricity parameter；
| Scan mode | 1/16scan |
| Port type | HUB75-A |
| Brightness | ≥1200cd/m2 |
| Best viewing distance | 4M ~ 20M |
| Best viewing distance | 160°(W) 120°(H) |
| Temperature | -40 degree~ +70 degree |
| Relative humidity | 10%-95% |
| Screen thickness | 85mm |
| Working voltage | AC220V/110V±10% |
| Average Power | 185W/ m2 |
| Max.Power consumption | ≤550W/ m2 |
| Refresh frequency | ≥2200HZ |
| Grey scale/color | 256levels of each color(RGB)/16.7M colors |
| MTBF | ≥9000HZ |
FQA:
1. How to install led display?
We will offer drawing of steel structure or hanging truss,then you can install led display according the picture.
2. What s the control system?
For synchronization control: We use Nova, Linsn Or Colorlight control system;
3. What's the pixel pitch for Indoor LED Display Screen ?
Indoor (3.75mm / 4 mm/ 5mm / 6mm)
4. How can i place an order?
Please provide the details of your requirements as clear as possible. So we can send you the offer at the first time. For designing or further discussion, it is better to contact us with ,Skype/email /phone, in case of any delays.
5. Except this model, are there any other models?
yes, For indoor led screen we have p2.5 p3 p3.91 p4 p4.81 p5 p6 p7.62 p10 For outdoor led screen we have p5 p6 p8 p10

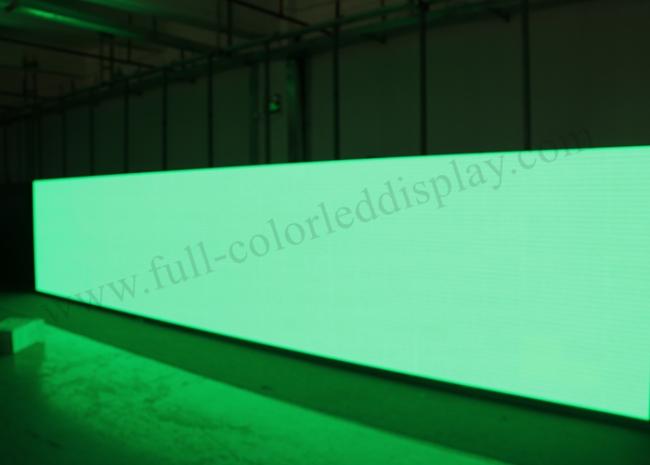

P4 Indoor Rental led video display Product Aging:

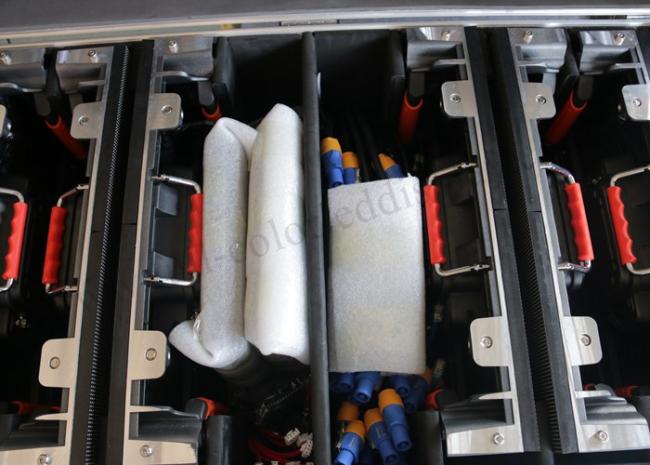

Package:
