SMD2727 5500nits Outdoor Led Advertising Screens P5 RGB256
960 X 960 Mm Led Outdoor Waterproof Display Screen For P5, P6, P10 With High Brightness And High Refresh Rate
P5 , P6 , P8 Outdoor Fixed LED Display parameter:
| Value | P4 | P5 | P6 | P8 | P10 |
| Pixel Pitch(mm) | 4 | 5 | 6 | 8 | 10 |
| Pixel Matrix Per Sq.m | 62500 | 40000 | 27777 | 15625 | 10000 |
| Pixel Configuration | SMD1921 | SMD2727 | SMD2727 | SMD3535 | SMD3535 |
| Brightness (nits) | 6500 | 6500 | 6500 | 6800 | 7500 |
| Scan | 1/8 | 1/8 | 1/8 | 1/4 | 1/2 |
| Module Dimension | 192x192mm / 0.63x0.63ft | 160x160mm / 0.52x0.52ft | 192x192mm / 0.63x0.63ft | 320x160mm / 1.05x0.52ft | 320x160mm / 1.05x0.52ft |
| Cabinet Dimension | 960x960mm / 3.15x3.15ft | 960x960mm / 3.15x3.15ft | 960x960mm / 3.15x3.15ft | 960x960mm / 3.15x3.15ft | 960x960mm / 3.15x3.15ft |
| Cabinet Resolution | 192x192 | 192x192 | 160x160 | 120x120 | 96x96 |
| Cabinet Weight | 44kg / 97Ib ( Iron) | 43kg / 95Ib (Iron) | 42kg / 93Ib (Iron) | 41kg / 90Ib (Iron) | 40kg / 88Ib ( Iron) |
| Power Con. (Max / Avg) | 750 / 150 w/sq.m | 730 / 130 w/sq.m | 700 / 120 w/sq.m | 680 / 120 w/sq.m | 650 / 110 w/sq.m |
| Service Access | Front / Rear | ||||
| Refresh Rate (HZ) | ≥1920 | ||||
| Grey Scale (bit) | 16 | ||||
| Viewing Angle (H/V) | 140 / 140 | ||||
| IP Rate | IP65 | ||||
| Input Voltage (AC) | 110V / 240V | ||||
How to control LED display?
By computer, wifi, 4G, USB, remote, internet, mobile, pad, etc. Yes, you can control in your convenient management. Many screens together? No problem, your laptop can manage all of them whenever and wherever.
Ultra-High / Low Temperature
OF series design for working in all weather outdoor environments. High protection grade of IP65 suitable for winter and cold areas like North European countries and Russia, and high temperature like KSA, Oman, UAE, etc.
High Brightness & Auto-Brightness
High brightness and contrast ratio to make vivid color facing to the Sunlight.
Auto brightness saving energy besides protecting people's eyes at night time.
Various Shaped LED Display
Cylinder LED display, Curved LED display, 90 degrees LED display, Round LED display, LED ball, etc.
LED WORLD supply more design and more solutions.
FQA:
Q1: When is the delivery time of the led screen?
A1: we will accomplish manufacturing within 20-25 days after receiving the amount(Exclude time of weekend). If you need urgent, please kindly let me know, in guaranteed of quality. we will try our best to make faster
Q2: What about your Pre-sale service and After-sale service?
A2: For Pre-sale service: We have a professional sales team and professional technical team who are willing to answer your question 24 hours online. We can offer a set of solutions for your project!
For After-sale service: We can instruct you how to use, adjust the screens, and common maintenance with spare parts.
Q3: How can you ensure the led display product quality?
A3: We have nearly 8-year experience in producing Led Display with a good reputation in this industry.
We would do 24 hours aging to promise 100% non-dead chips before shipment
Q4: What's the controlling system of the led screen?
A4: Control system could be Linsn, Nova-star, Color light...Usually, clients use Linsn for fixed installation led screens and Nova-star system for rental screens.
Q5: How to choose a proper led screen for you?
A5: You just need to think of 3 simple questions in your head before you buy a led screen.
1.Will you use it indoors or outdoor?
2.Is it for rental use(need to be moved from one place to another place very often) or for fixed installation (to be installed in one place forever).
3.what is the approximate size of the led screen you needed? what are the height and length?
Q6: How to install it after we receive it?
A6: We will offer instructions to guide you on installation, and also software setting up photos or steel construction drawings.

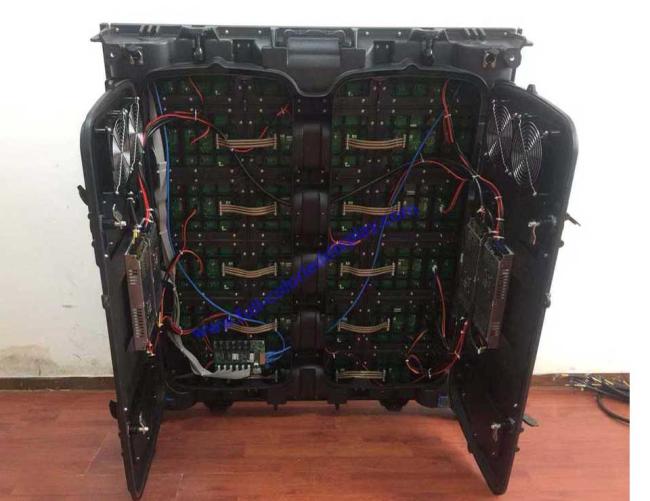

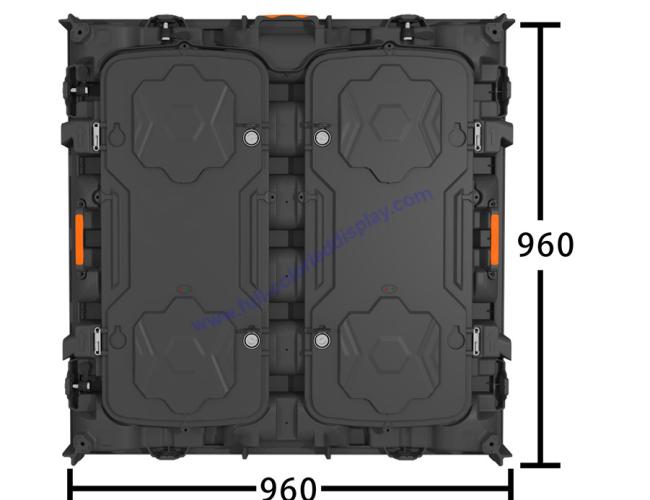

Cabinets details:
