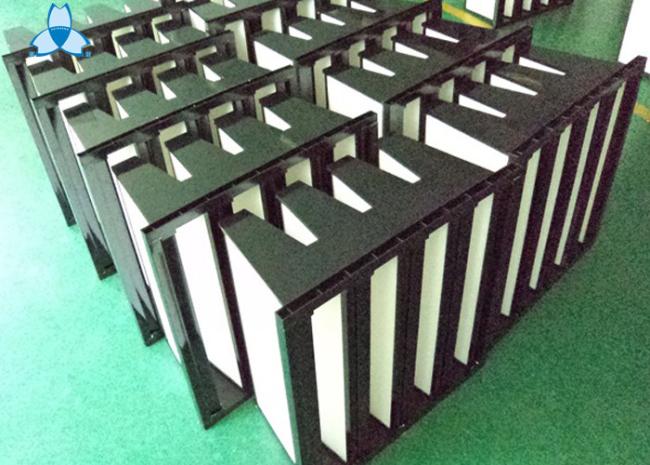

High Performance H13 V Bank Filter , Portable Air Filter For Hospital Operating Room
- Features: High efficiency, low resistance and large air flow.
- Suitable for the terminal filtration of the air conditioning system and the air cleaning facility needing large air flow;
- Large filtering area to make sure the low resistance on the large airflow side;
- Either standard galvanized steel frame or stainless steel frame;
- Sealant: Polyurethane;
- Sealed material: Molding plastic polyurethane or neoprene;
- Max.operating temperature: 80 degree centigrade;
- One-by-one test;
- Filtering Efficiency Grade: H13, H14(EN 1822);
1.High dust holding
2.Low initial pressure drop
3.Good raw material, competitive price
4.Leak test one by one before delivery
5.Fast delivery
6.Size can be customized
Features:
| Product type | Plastic frame compact filter for cleanroom |
| Efficiency | F6-F9 (EN799) |
| Media | Mircro glass fiber or PP |
| Separator | hot-melt |
| Frame | ABS plastic |
| Sealant | Ployurethane |
| Initial pressure drop | 170 pa (0.68 WG) |
| Final pressure drop | 600 pa |
| Operating temperature | 80 ºC |
Common applications:
It is applied to large air flow ventilation system, filtration system of Pharmaceutical, food, hospitals, clean room, and so on.
It can be used as terminal-filtration of medium and high efficiency filtration system or pre-filtration of super-efficient filtration system
SIZE AND SPECIFICATION
| Model | Dimensions(mm) WxHxD | Rated air flow (m³/h) | Initial resistance (Pa) | Efficiency (EN1822) | Frame | Media |
| ZSZV-3300 | 592x592x292 | 3300 |
≤120 (Media: PP)) ≤220 (Media:fiberglass) |
F7-H13 | Plastic/ galvanized sheet |
PP or Fiberglass |
| ZSZV-1600 | 592x292x292 | 1600 | ||||
| ZSZV-3000 | 592x490x292 | 3000 | ||||
| ZSZV-1600-2 | 592x287x292 | 1600 | ||||
| ZSZV-800 | 287x287x292 | 800 | ||||
| ZSGV-3600 | 610x610x292 | 3600 | ||||
| ZSGV-1800 | 610x305x292 | 1800 |
Payment Term:
30% prepayment by T/T at order, the balance of payment before shipment.
Delivery time:
• Production period:15-30days
• Shipping notice or insurance for you after the goods is shipped.
After sales service:
• We respect your feed back after receive the goods.
• We provide 1 year warranty after goods arrive.
• We care of your complain within 48hours.
