Single Aluminum Door, Double Blowing Personal Air Shower W1400xD1000xH2100mm for Single Person

It is a special air shower, usually, air shower has two doors which are interlocked, when one door is open,

other door must be closed, prevent air convection between non-cleanroom and clean room. This air

shower is only one door, because the space of the workshop is limited.

Air shower’s material is white powder coated steel for outside cabinet, stainless steel 304 for inside and

the base, alumimun frame swing door with  half transparent window,

Specification:

External dimension :W1400xD1000xH2100mm

Internal dimension : W800xD900xH1960mm

Material: T=1.2mm cold rolled steel with powder coated for mainbody, Stainless steel for base

Door: Aluminum single-leaf swing door for entrance door ( only one door) ,

Electric lock 1set, Door closer 1set

Blower Fan: 2sets (Voltage:380V/50HZ/3PH), airflow capacity: 1400CMH.

99.99% HEPA filter size: 610x610x69mm 2pcs

Pre filter: G3 2pcs, Fluorescent LED light: 1pcsx18W

Nozzles: stainless steel 6+6+4=16pcs ( 3-side blowing)

Air velocity: >24m/s

Operation Control: English LCD control panel human voice, automatic blowing by OMRON photoelectronic sensor.

Features:

Provide high-speed high-clean air, blowing the surface attached to the dust and bacteria, the clean room from pollution.

1. Personal air shower which is controlled by photoelectric sensor and IC control panel with voice prompts,automatical blowing.

2. Cargo air shower can be blowing automatically when door is closed, without photoelectric sensor.

3.Two-door are electronic interlocked, the implementation of forced blowing shower.

4. Optional automatic sliding door installation,can install static devices.

5. The based is stainless steel, good corrosion resistance, and it can be stead of sole cleaning machine

to remove the dust from shoe sole to keep the clean.

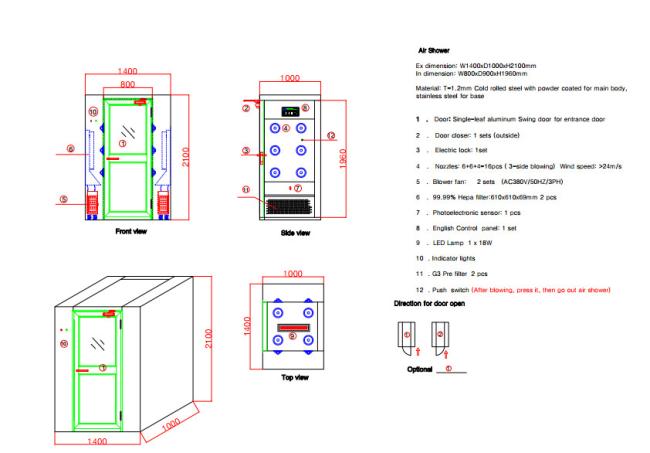

Drawing of Personal Air Shower:

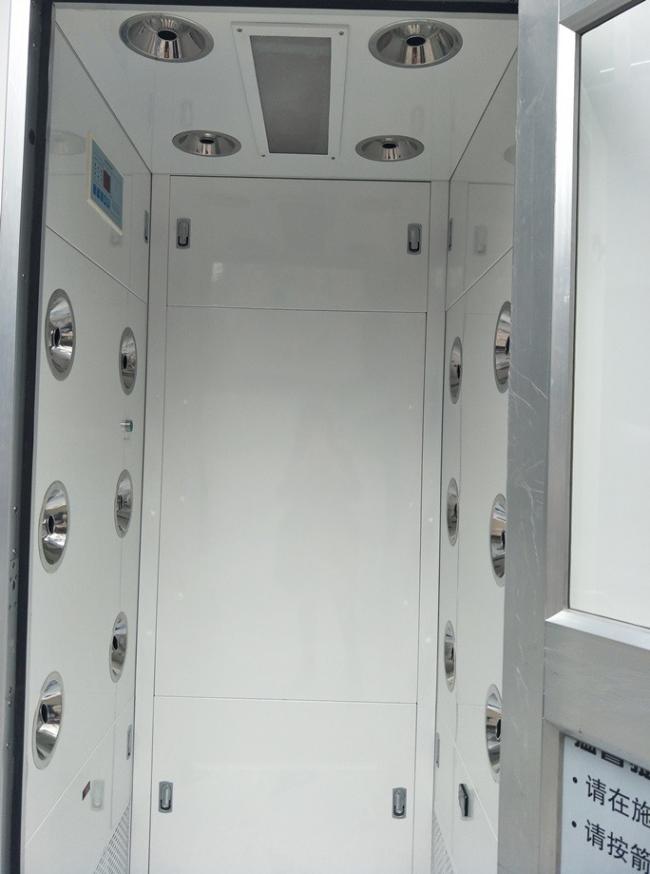

Pictures of personal air shower inside:

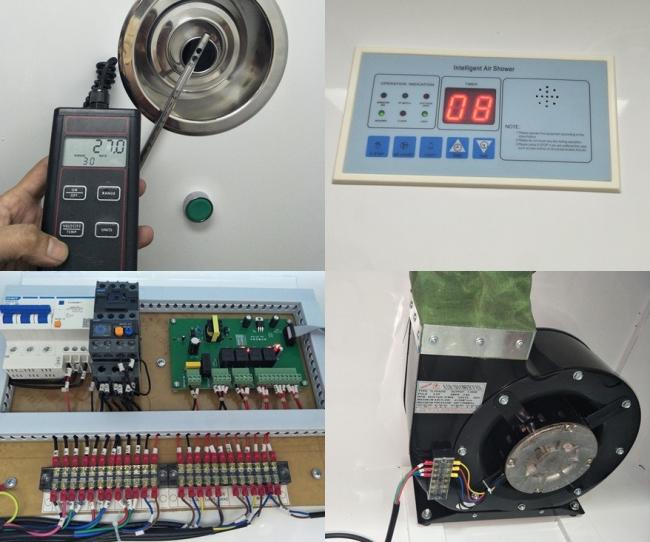

Details for Air shower:
