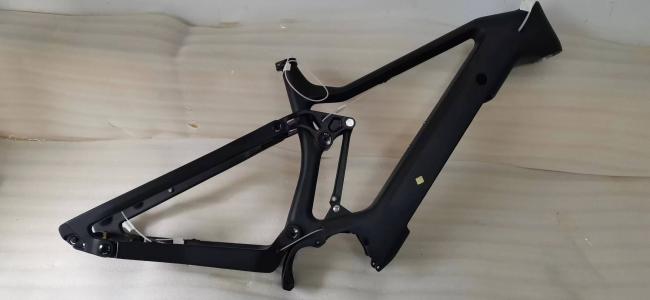

27.5+ 29 Boost Enduro Full Suspension E Bike Frame Full Carbon Electric Bike Frame
27.5+ 29 Boost Enduro Full Suspension E Bike Frame Carbon Electric Bike Frame
Features:
1) Riding Style: Enduro Full Suspension E-Bike Frame, Fork Appicable: 120-160mm Applicable.
2) Motor Applicable: Bafang M510/M600 Mid-Drive Motor.
3) Integrated Downtube for hiden Battery pack 52 cells 18650
4) 27.5 Boost Wheel Size Max. tire 27.5x2.80 or 29x2.40 Wide Tire increases the riding stablitity.
5) Bafang Motor and Battery Pack or Box can be supplied with the frame for easy assembly.
Technical Data:
| Product Name | Carbon Electric Bike Frame |
| Model: | E04 |
| Material | Full Carbon Fiber |
| Wheel Size | 29er/ 27.5+ |
| Motor | Bafang M510/M600((36/43V 250/500 MID-Drive Motor |
| Battery | Integrated downtube for 52 cells |
| Size | 15.5", 17.5",19", 20.5" |
| Dropout | 148x12 thru-axle |
| Max. Tire | 27.5X2.80 or 29X2.4 |
| Headset | Tapered(44-56mm) |
| Routing | Inner Cable routing |
| Head tube angle | 65.5degree |
| ChainStay | 460mm |
| Brake | Disc (post mount) |
| Seatpost | 31.6 mm |
| Weight | 3150+-45grams(17.5") |
| Type | Enduro E-bike |
| OEM | Acceptable |
Anhui Liteduro Technology Co., Ltd. have focused on development of Bicycle Frame/Bike Fork in China
on OEM and ODM basis for many years. We offer custom bicycle frame and forks according to customer′s
requirements.
Our Services
We have professional R&D team, and we cooperate with many customer to design and develop bicycle frame.
We offer customized service, such as customized design, customized painting, customized packing, etc.
So you can have unique products to differentiate from others.
Warranty
Quality is our number 1 focus for the entire team.Warranty is 2 years under normal using(not man made damage).
All of frames will be tesed before shipping.If you received some not working can show the pictures to us or send it back to us to repair.
FAQ
1. Q: Can I get some samples?
A: We are honored to offer you samples for quality check, but will add extra cost and shipping cost by courier.
2. Q: Can I mix different models in one container?
A: Yes, different models can be mixed in one container.
3. Q: What payment do you accept?
A: In general, our payment is 50%T/T as deposit and balance T/T before shipment.
Get in Touch
Have questions about our products or want to discuss a custom order? Our team is ready to help you.
